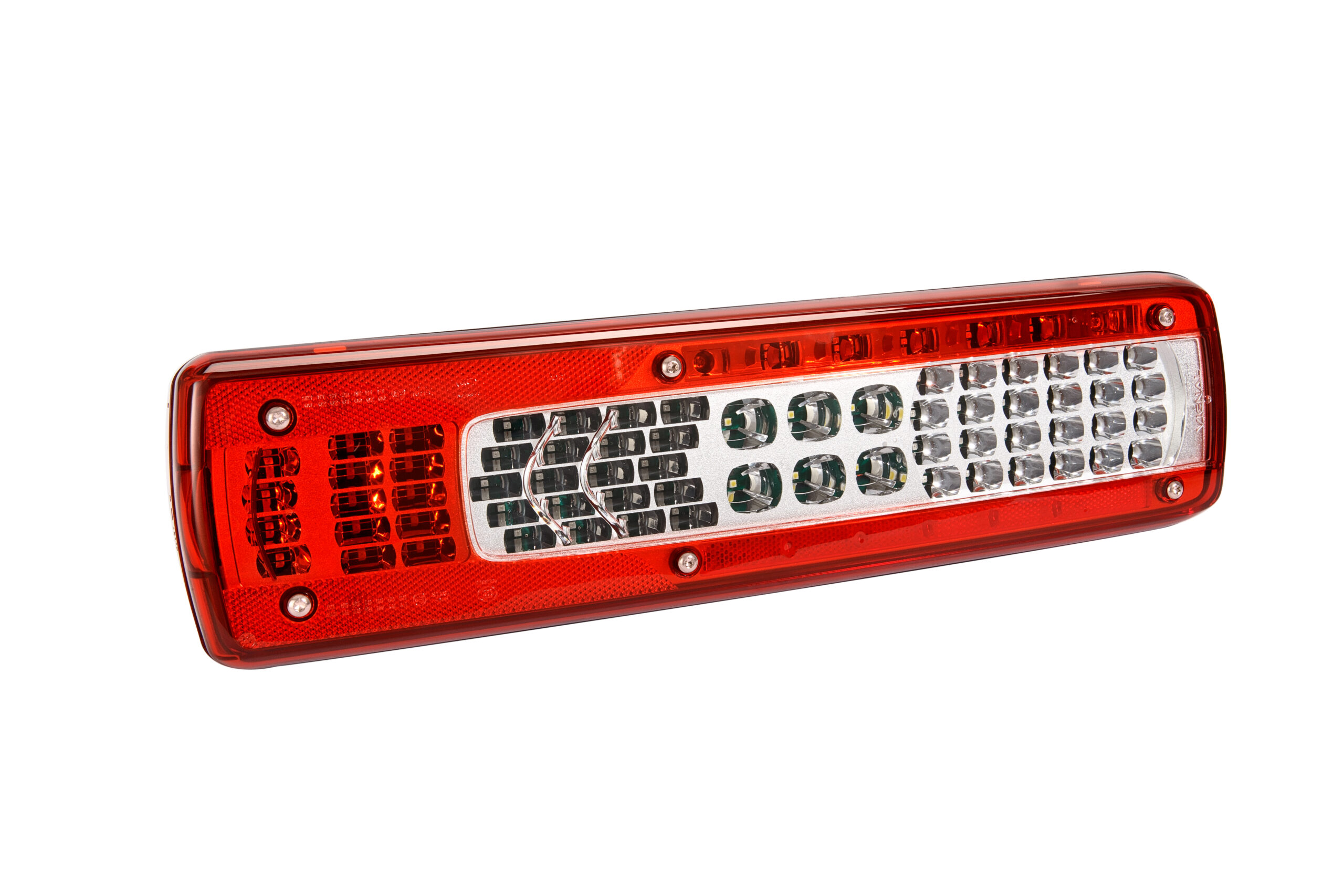

Vignal LC9 LED – Rear lamp LED Left with AMP 1.5 – 7 pin side connector 158030

Vignal Rear Lamp LED Left With AMP 1.5 7 Pin Side Connector (part no. 158030) for commercial vehicle lighting and electrical systems.

Description

The Vignal Rear Lamp LED Left With AMP 1.5 7 Pin Side Connector is a connector repair kit designed for use in commercial vehicle lighting and electrical systems. Suitable for Volvo applications where compatible. It is ideal as a replacement part for repairs, maintenance or upgrades where the original component needs to be replaced.

Key features:
– Brand: Vignal
– Part number: 158030
– Product type: Connector Repair Kit
– Key details: LED, left-hand, 7-pin, connector
– Application: Trucks, trailers, buses and coaches where compatible

Data Sheet

Brand VIGNAL
Product Type Complete lamp
Manufacturer Renault Trucks, Volvo Trucks
Voltage 24V
Source LED
Connector AMP 1.5 – 7 pin side connector
Mounting Direction Horizontal
Side Left
Lens Material Polycarbonate
Shape Rectangle
Fixation Bolt Distance 160 mm
Length 500 mm
Width 130 mm
Depth 84 mm
Main Functions Indicator, Stop, Position, Reverse, Fog, Rear reflector, End-outline marker lamp, Side position, Side reflector
Specific Functions License plate lamp
EMC E2 10R-036227
ADR ADR
ECE E2 10113, ECE
CCC CCC
Industry Trucks



Constructor Model Reference Start Date End Date
RENAULT TRUCKS EURO 6 – T / K / C / D 7422800344 12/2017
RENAULT TRUCKS EURO 6 – T / K / C / D 7422800388 12/2017
RENAULT TRUCKS EURO 6 – T / K / C / D 7422800566 12/2017
VOLVO FH 82458944 12/2012
VOLVO FH 84122000 12/2012
VOLVO FH 84446716 12/2012
VOLVO FH 82354472 01/09/2013 00:00
