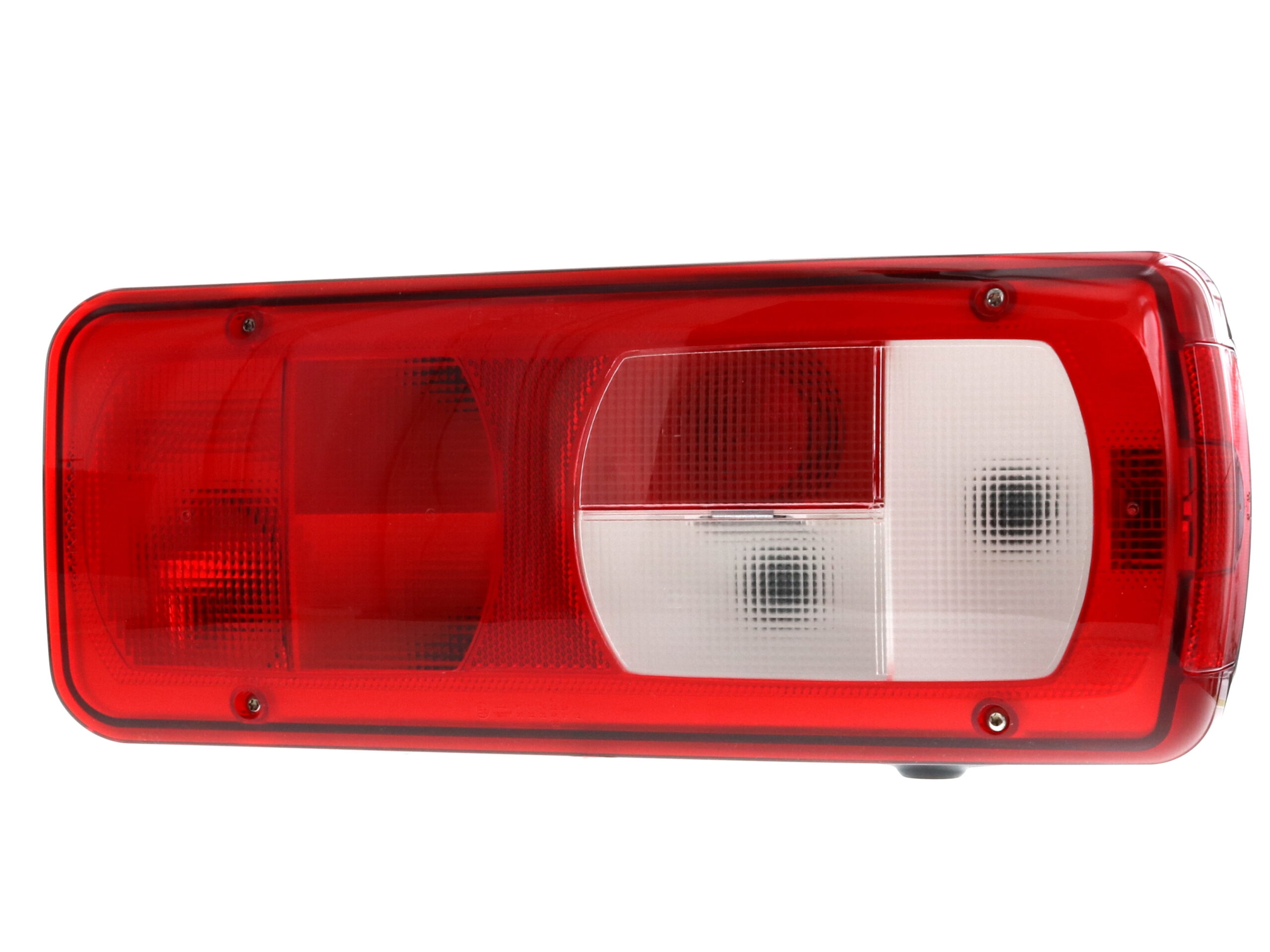

Vignal LC8 – Rear lamp Right with alarm and HDSCS 8 pin side conn DAF 155120

Vignal Rear Lamp Right With Alarm And HDSCS 8 Pin Side connector DAF (part no. 155120) for commercial vehicle lighting and electrical systems.

Description

The Vignal Rear Lamp Right With Alarm And HDSCS 8 Pin Side connector DAF is a connector repair kit designed for use in commercial vehicle lighting and electrical systems. Suitable for DAF applications where compatible. It is ideal as a replacement part for repairs, maintenance or upgrades where the original component needs to be replaced.

Key features:
– Brand: Vignal
– Part number: 155120
– Product type: Connector Repair Kit
– Key details: right-hand, alarm, 8-pin, connector
– Application: Trucks, trailers, buses and coaches where compatible

Data Sheet



Brand VIGNAL
Product Type Complete lamp
Manufacturer Daf Trucks
Voltage 12/24V
Source Bulbs
Connector HDSCS 8 pin side connector
Mounting Direction Horizontal
Side Right
Shape Rectangle
Fixation Bolt Distance 160 mm
Length 400 mm
Width 160 mm
Main Functions Indicator, Stop, Position, Reverse, Fog, Rear reflector, End-outline marker lamp, Side position, Side reflector
Specific Functions Back up alarm
ADR ADR
ECE E2 12007, ECE
CCC CCC
Industry Trucks



Constructor Model Reference Start Date End Date
DAF CF – XF tracteur 1875578 04/2012
