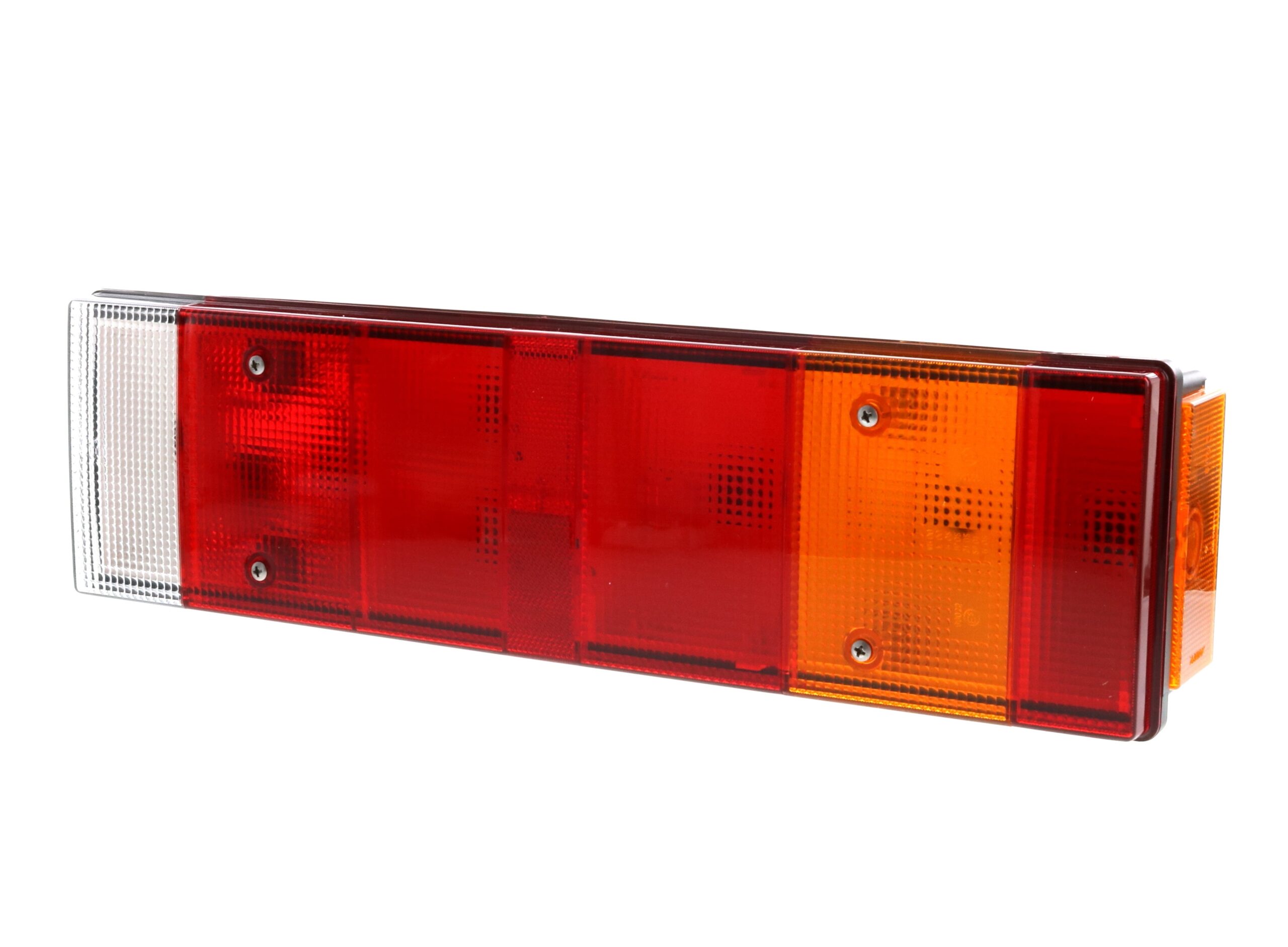

Vignal LC7 – Rear lamp Right with DIN 8 pin rear connector 169410

Vignal Rear Lamp Right With DIN 8 Pin Rear Connector (part no. 169410) for commercial vehicle lighting and electrical systems.

Description

The Vignal Rear Lamp Right With DIN 8 Pin Rear Connector is a connector repair kit designed for use in commercial vehicle lighting and electrical systems. Suitable for Iveco applications where compatible. It is ideal as a replacement part for repairs, maintenance or upgrades where the original component needs to be replaced.

Key features:
– Brand: Vignal
– Part number: 169410
– Product type: Connector Repair Kit
– Key details: right-hand, 8-pin, connector
– Application: Trucks, trailers, buses and coaches where compatible

Data Sheet

Brand VIGNAL
Product Type Complete lamp
Voltage 12/24V
Source Bulbs
Connector DIN 8 pin rear connector, IVECO rear connector
Mounting Direction Horizontal + Vertical
Side Right
Shape Rectangle
Fixation Bolt Distance 152 mm
Length 454 mm
Width 130 mm
Depth 83 mm
Main Functions Indicator, Stop, Position, Reverse, Fog, Rear reflector, End-outline marker lamp, Side position, Side reflector
ADR ADR
ECE E2 80005
Industry Trucks



Constructor Model Reference Start Date End Date
IVECO EUROCARGO – STRALIS – TRAKKER 5801568431 07/2014
