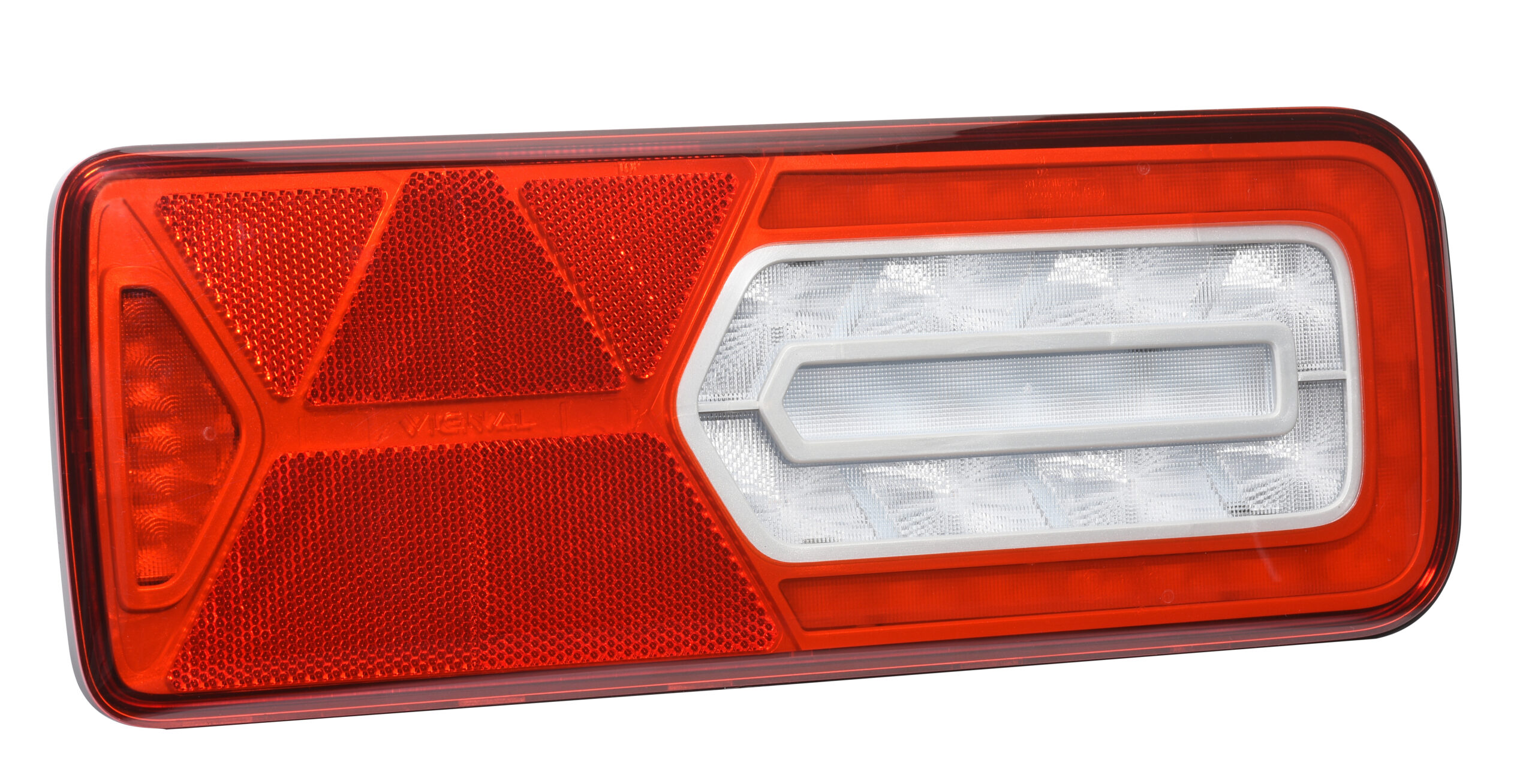

Vignal LC12 LED – Rear lamp LED Right 24V, additional conns, triangle 161010

Vignal Rear Lamp LED Right 24V Additional connectors Triangle (part no. 161010) for commercial vehicle lighting and electrical systems.

Compact and ultra slim, it presents options which make it simplier to fit on the vehicle : an integrated resistance to control the indicator failure, additional connectors to connect flashing side markers but also a reverse work light and license plate…

Description

The Vignal Rear Lamp LED Right 24V Additional connectors Triangle is a connector repair kit designed for use in commercial vehicle lighting and electrical systems. Suitable for commercial vehicle lighting applications where compatible. It is ideal as a replacement part for repairs, maintenance or upgrades where the original component needs to be replaced.

Key features:
– Brand: Vignal
– Part number: 161010
– Product type: Connector Repair Kit
– Key details: LED, 24V, right-hand, connector
– Application: Trucks, trailers, buses and coaches where compatible

Data Sheet



Brand VIGNAL
Product Type Complete lamp
Manufacturer Asca, Schmitz
Voltage 24V
Source LED
Max Current Additional connector N°1 position: 0.5A, Additional connector N°2 position: 0.6A, Additional connector N°3 position: 1A, Additional connector N°4 position: 0.2A
Connector AMP 1.5 – 7 pin rear connector
Mounting Direction Horizontal
Side Right
Lens Material Polycarbonate
Shape Rectangle
Fixation Bolt Distance 152 mm
Length 370 mm
Width 150 mm
Depth 49 mm
Main Functions Dynamic indicator, Stop, Position, Reverse, Fog, Triangular reflector
Specific Functions Additional connectors
IP Protection IP69K
EMC E2 10R-060657
ADR ADR
ECE E2 14007, ECE
Industry Trailers and Semi-trailers



Constructor Model Reference Start Date End Date
SCHMITZ 1059044 03/2014
SCHMITZ 1354797 12/2016
