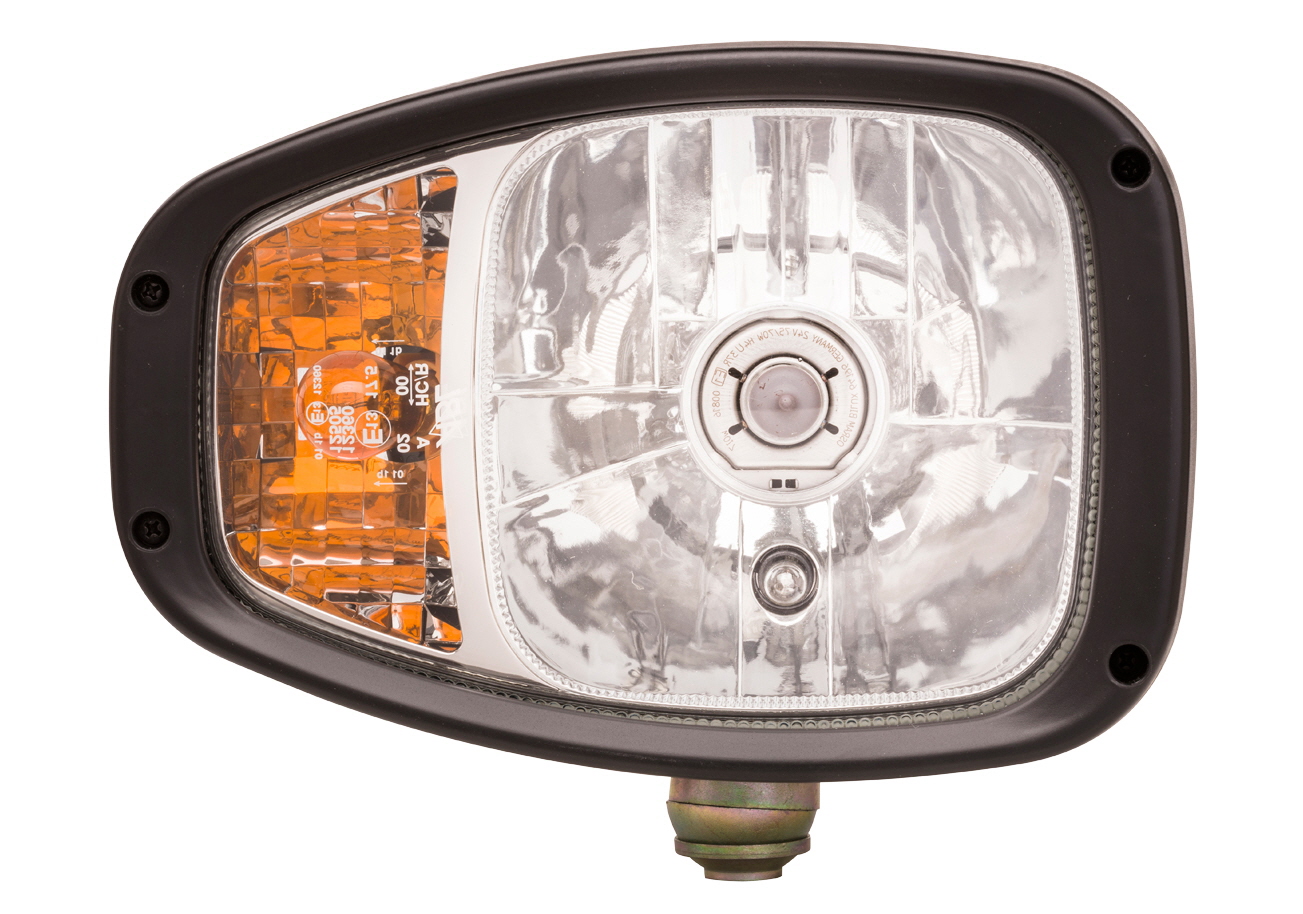

Vignal CHL 1 H4 – Driving light right ECE HALOGEN 12/24V D14321

Vignal Driving Light Right ECE Halogen 12/24V (part no. D14321) for commercial vehicle lighting and electrical systems.

Description

The Vignal Driving Light Right ECE Halogen 12/24V is a driving light designed for use in commercial vehicle lighting and electrical systems. Suitable for commercial vehicle lighting applications where compatible. It is ideal as a replacement part for repairs, maintenance or upgrades where the original component needs to be replaced.

Key features:
– Brand: Vignal
– Part number: D14321
– Product type: Driving Light
– Key details: halogen, 12/24V, right-hand
– Application: Trucks, trailers, buses and coaches where compatible

Data Sheet





Brand ABL
Reference Detail D14321 (DT 6 pin, pedestal, 12V); D14323 (DT 6 pin, pedestal, 24V)
Voltage 12/24V
Source HALOGEN
Bulb H4, PY21, W5W
Connector Cable compression seal PG11, DT 6 pin
Mounting Pedestal, suspended, side swivel, rear swivel
Lens Material Hardened glass
Housing Material Black fibre reinforced plastic
Length 240 mm
Depth 127 mm
Height 164 mm
IP Protection IP66 – IP69K
Operation Temperatures -40°C to +85°C
Salt Spray Test ISO 9227
ECE ECE
Industry Agriculture, Construction, Forestry, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab
