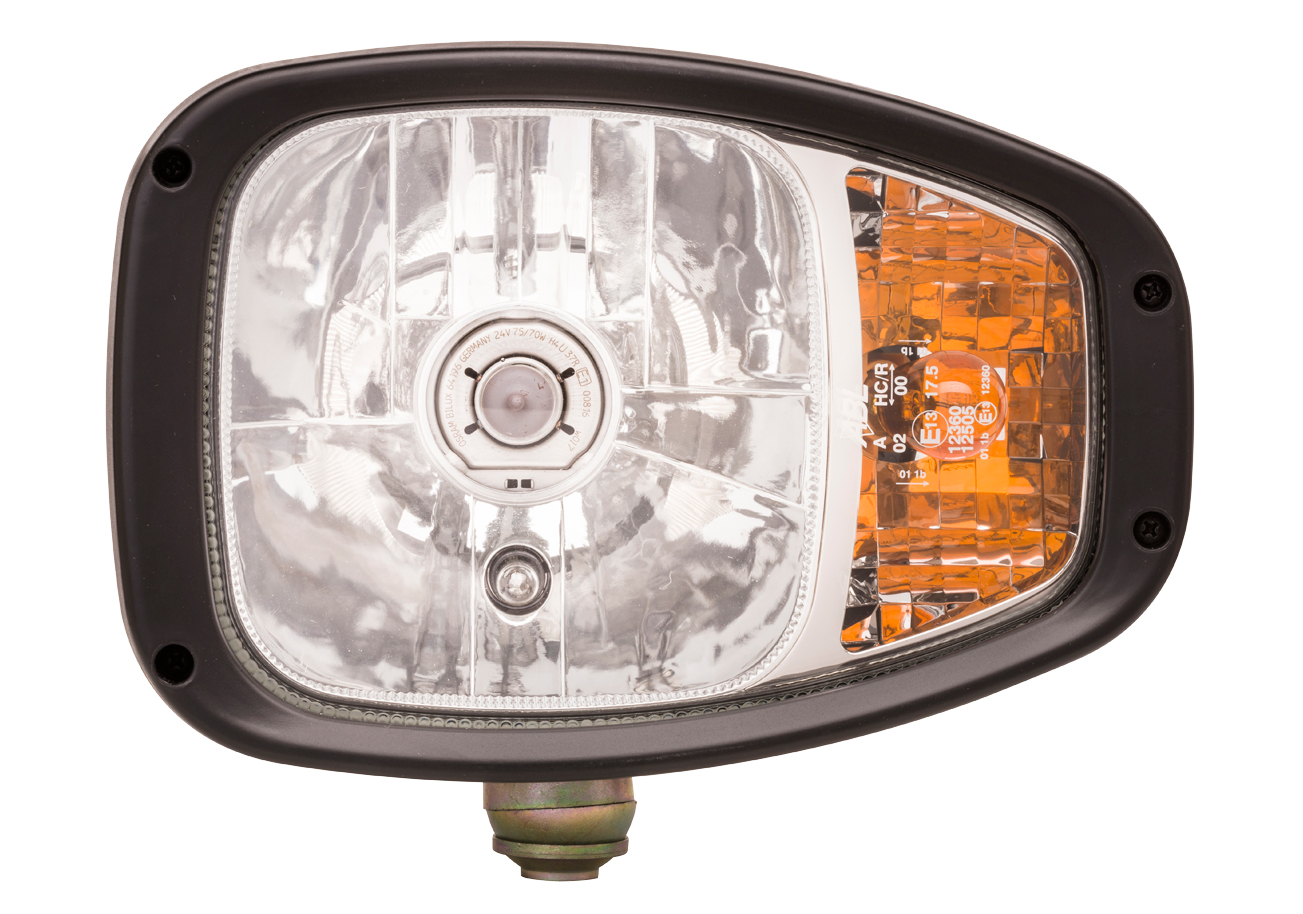

Vignal CHL 1 H4 – Driving light left ECE HALOGEN 12/24V D14320

Vignal Driving Light Left ECE Halogen 12/24V (part no. D14320) for commercial vehicle lighting and electrical systems.

Description

The Vignal Driving Light Left ECE Halogen 12/24V is a driving light designed for use in commercial vehicle lighting and electrical systems. Suitable for commercial vehicle lighting applications where compatible. It is ideal as a replacement part for repairs, maintenance or upgrades where the original component needs to be replaced.

Key features:
– Brand: Vignal
– Part number: D14320
– Product type: Driving Light
– Key details: halogen, 12/24V, left-hand
– Application: Trucks, trailers, buses and coaches where compatible

Data Sheet

Brand ABL
Reference Detail D14320 (DT 6 pin, pedestal, 12V); D14322 (DT 6 pin, pedestal, 24V)
Voltage 12/24V
Source HALOGEN
Bulb H4, PY21, W5W
Connector Cable compression seal PG11, DT 6 pin
Mounting Pedestal, suspended, side swivel, rear swivel
Side Left
Lens Material Hardened glass
Housing Material Black fibre reinforced plastic
Length 240 mm
Depth 127 mm
Height 164 mm
IP Protection IP66 – IP69K
Operation Temperatures -40°C to +85°C
ECE ECE
Industry Agriculture, Construction, Forestry, Handling and Forklifts, Priority vehicle, Trailers and Semi-trailers, Trucks, Vans and Chassis cab
