€1.00
Voltage : 24V
Source : LED
Color : Amber / Orange
Connector : Cable + click in
Mounting Direction : Horizontal+Vertical
Cable Length : 500 mm
Fixation Bolt Distance : 30 mm
| Brand | VIGNAL | |
|---|---|---|
| Product Type | Complete lamp | |
| Voltage | 24V | |
| Source | LED | |
| Color | Amber / Orange | |
| Connector | Cable + click in | |
| Mounting Direction | Horizontal+Vertical | |
| Cable Length | 500 mm | |
| Shape | Oval | |

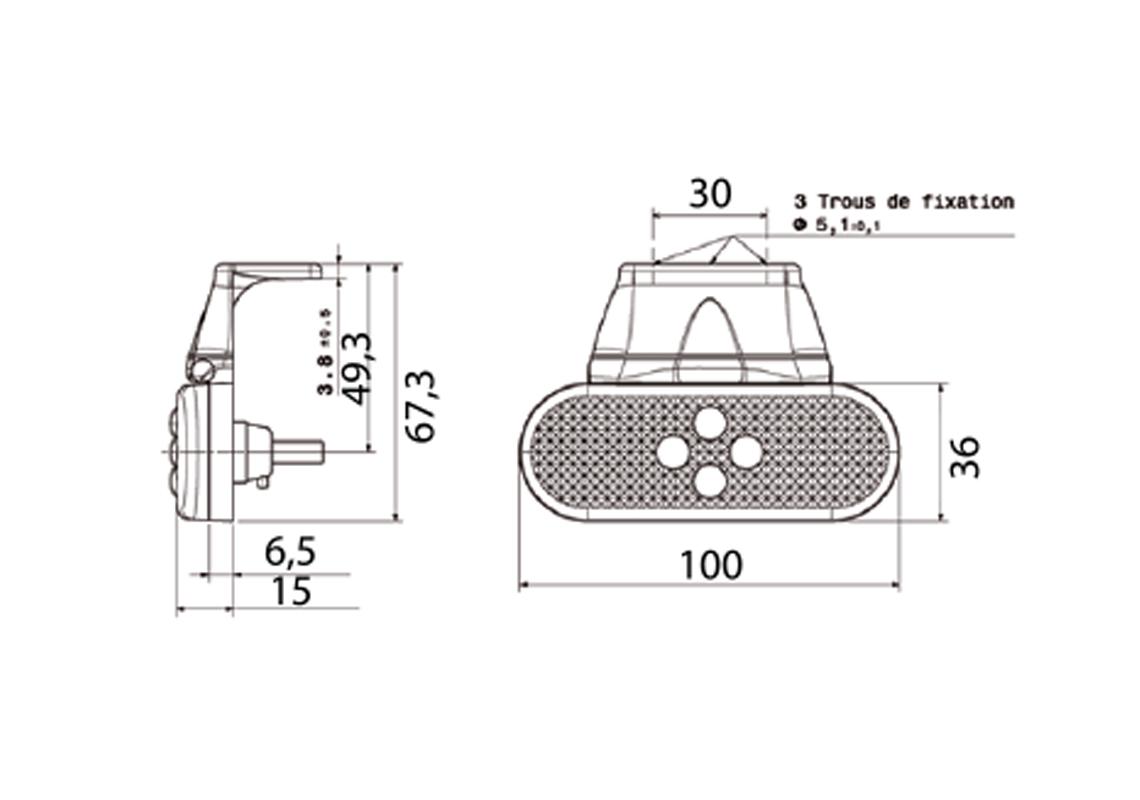

| Fixation Bolt Distance | 30 mm | |
| Length | 100 mm | |
| Width | 36 mm | |
| Depth | 15 mm | |
| Main Functions | Side position | |
| Specific Functions | Reflector | |
| ADR | ADR | |
| ECE | E2 05021, ECE | |
| Industry | Construction, Forestry, Handling and Forklifts, Mining, Trailers and Semi-trailers, Trucks |
| Colour | Red, Amber, White |
|---|
Field Value
Catalogue number 225Z
Cable / wires 22 cm LGY-S 0.75 mm²
Light source LED
Mounting side UNIVERSAL
Operating voltage 12 V – 24 V
Position / front clearance •
Position / side clearance
Position / rear clearance
Reflective device •
Pieces in the box 100
catalogue number: 221Z
cable / wires: 21 cm LgY-S 0.75 mm²
light source: LED
mounting side: UNIVERSAL
operating voltage: 12V–24V
position / front clearance: –
position / side clearance: –
position / rear clearance: ●
reflective device: ●
pieces in the box: 100
catalogue number: 224Z
cable / wires: 22 cm LgY-S 0.75 mm²
light source: LED
mounting side: UNIVERSAL
operating voltage: 12V–24V
position / front clearance: –
position / side clearance: –
position / rear clearance: ●
reflective device: ●
pieces in the box: 100
Catalogue number 222Z
Cable / wires 21 cm LGY-S 0.75 mm²
Light source LED
Mounting side UNIVERSAL
Operating voltage 12 V – 24 V
Position / front clearance •
Position / side clearance
Position / rear clearance
Reflective device •
Pieces in the box 100
