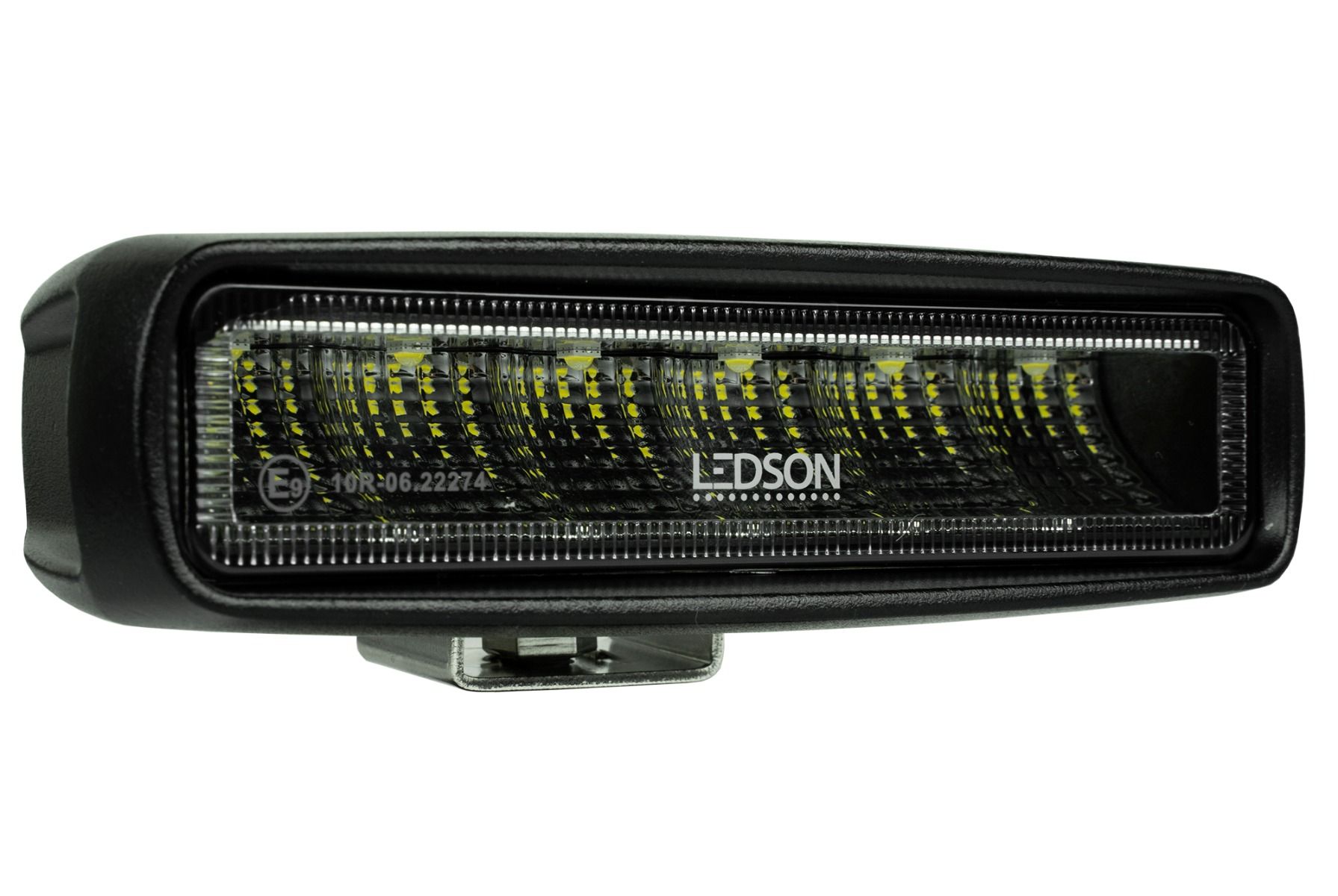

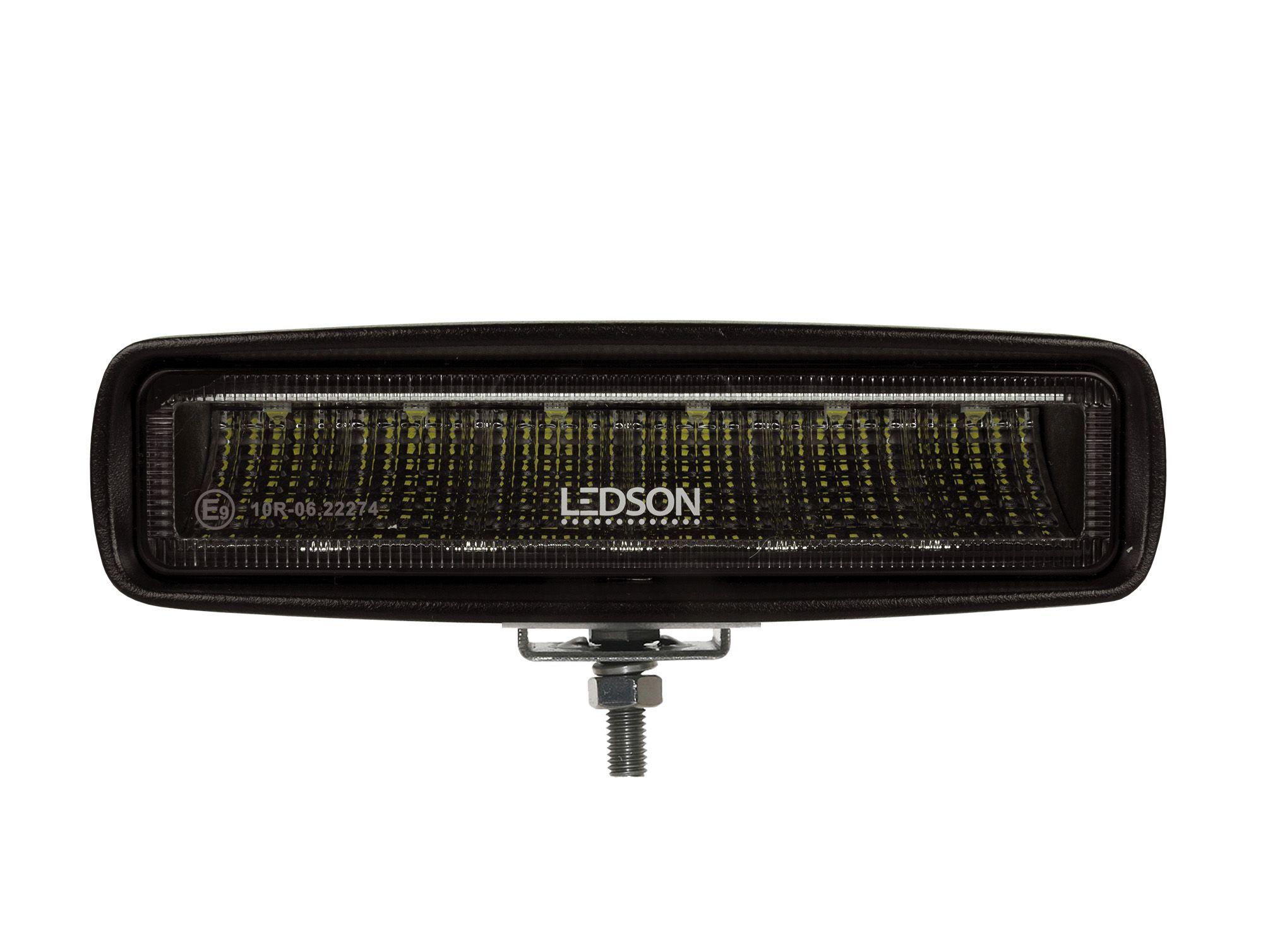

Raptor LED reverse light / work light 30W (E-marked) 3350569

€1.00

✓ Bright reverse light / work light with Osram LED
✓ Raptor is approved as reverse light (ECE R23)

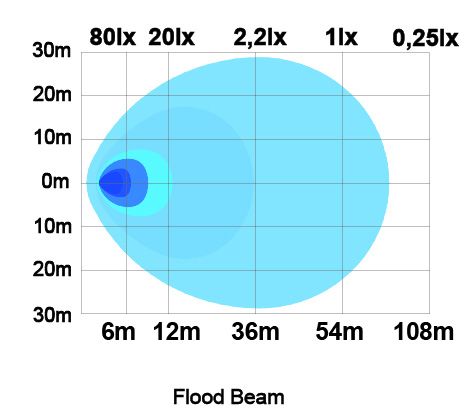

✓ Range 54m (1 lux) and 2259 actual lumens

Description

Ledson Raptor is a modern and strong reverse light / work lighting with a range of 54m at 1 lux brightness. E-approved as reverse light (ECE R23)



Characteristics:

  • Wide beam pattern (flood)
  • ECE R23 (approved as reverse light)
  • E-approved R10 (EMC secured)
  • 2520 theoreticallumen, 2259 actual lumen
  • Cold white light (5700K)

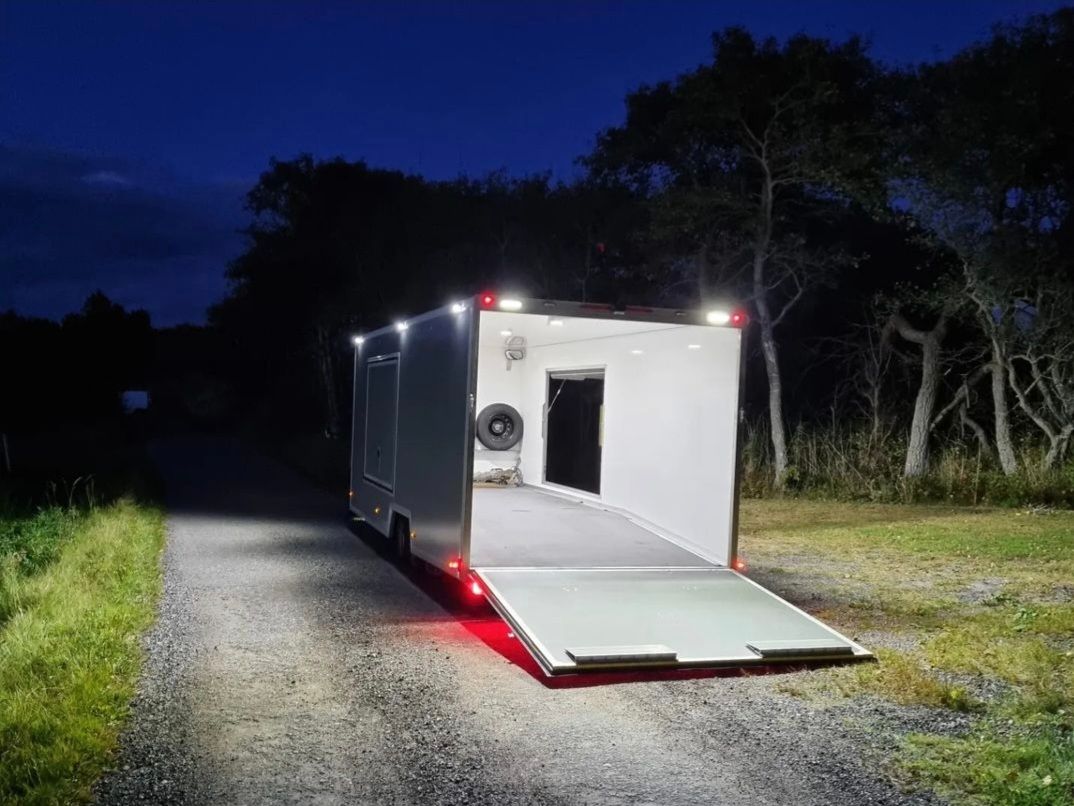

  • Can be used both as a reverse light or as a work light
  • DT cable supplied



Technical data:

  • 7 inch
  • 6 x 5 W Osram LED (total of 30W)

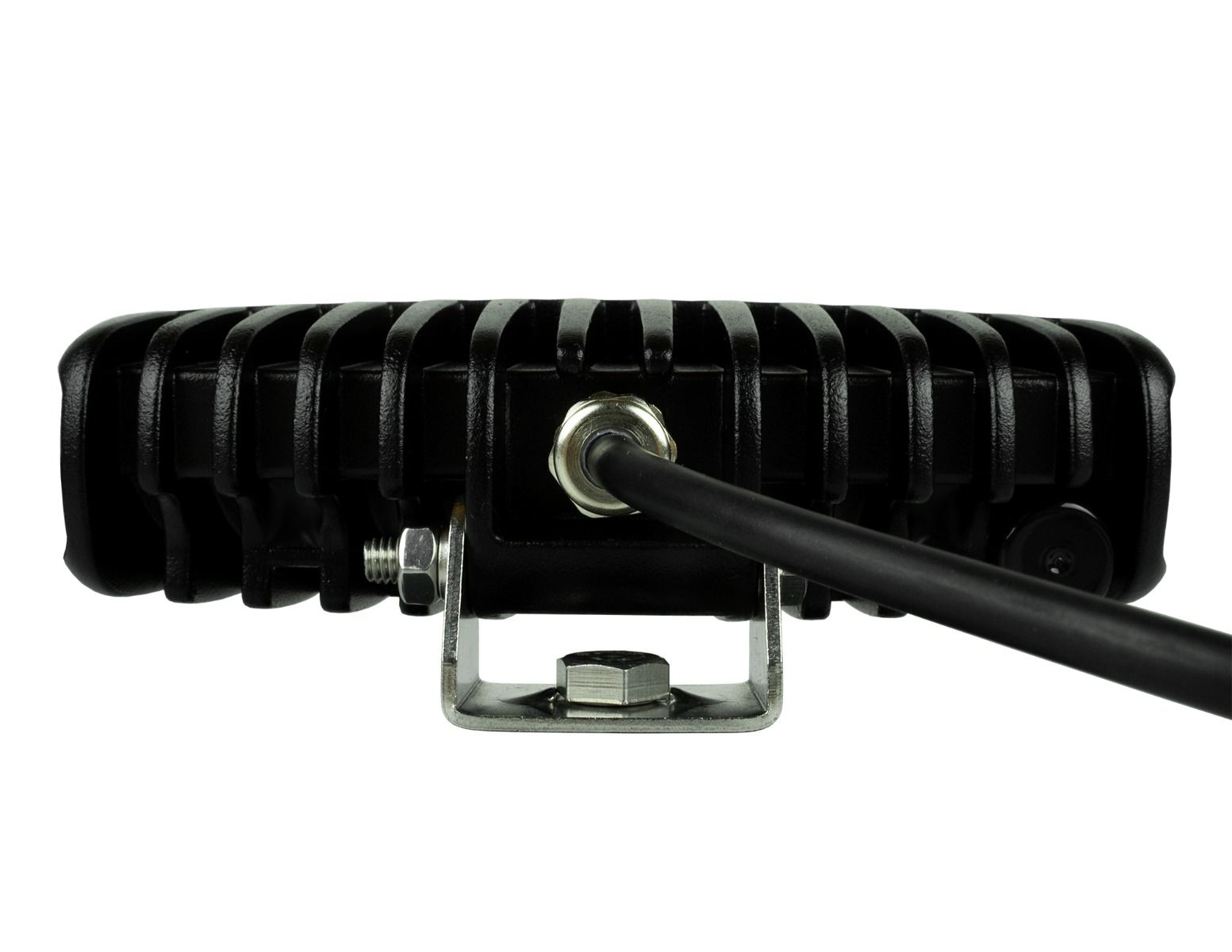

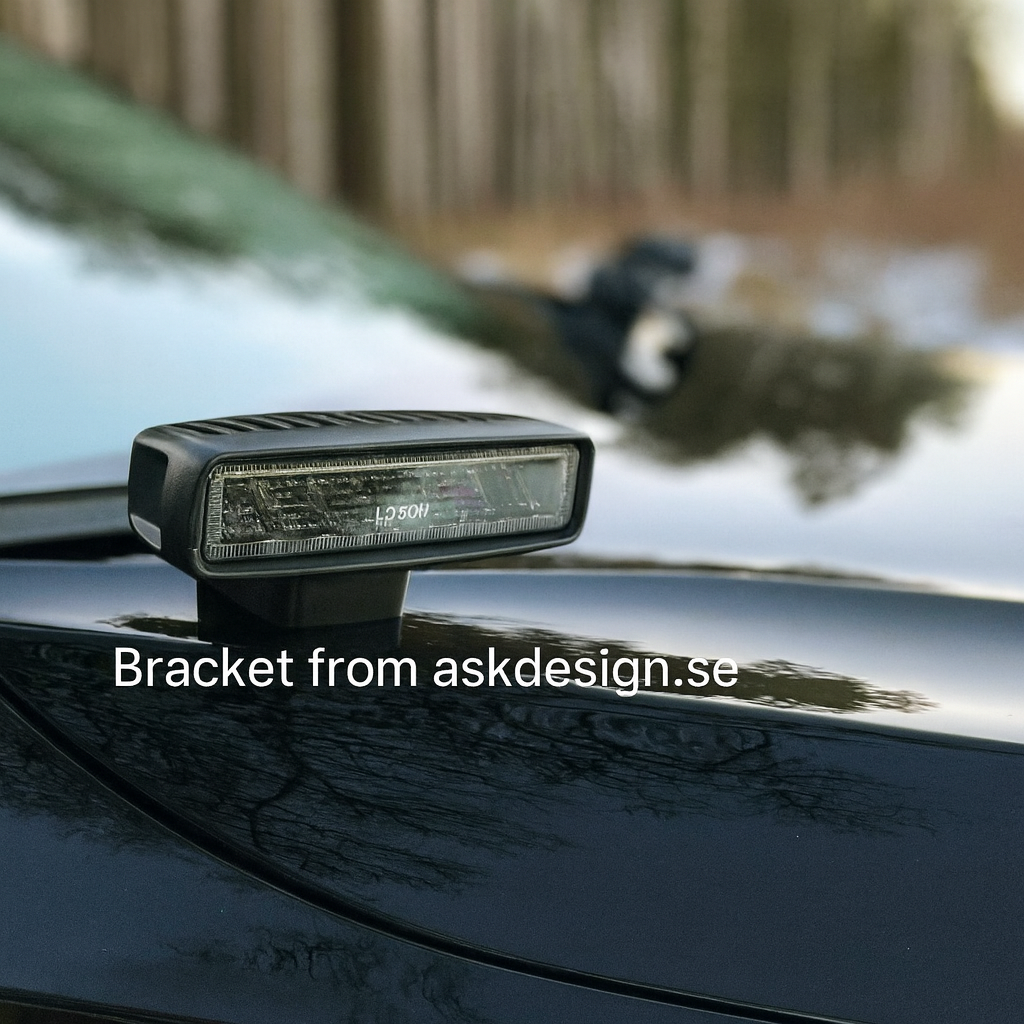

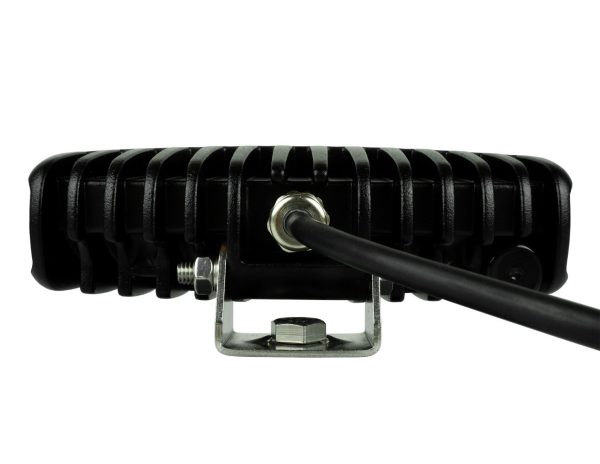

  • Adjustable bracket
  • IP69K (water proof)
  • 10-32 V



Dimensions & weight:

  • Width: 158 mm
  • Height: 48 mm inkl fäste
  • Depth: 63mm
  • Weight: 470 gram

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.

Technical information
E-marked ECE R10
Height (mm) 48 mm including bracket
Delievered as pcs
Width (mm) 158.000000
Voltage 10-32 V
Color Xenonwhite
Depth 63 mm
Warranty 36 months
Beam pattern Flood
Number of diodes 6 pcs
Area of use Outdoors
Cablelength Text 420 mm
Width (mm) 158 mm
Connections 1 x DT
Current 12V/24V 2,1A / 1,1A
Ignition time, cold to full Direct
Lightsource LED
Position Reverse light
Brightness 2520 lumens (theoretical), 2259 lumens (actual)
Manufacturer Ledson
