Phoenix+ 32″ LED bar package for Volvo FH 1360229

Ledson Phoenix 32″ with strobe light & position light LED bar kit for Volvo FH, up to model year 2014 to 2020.

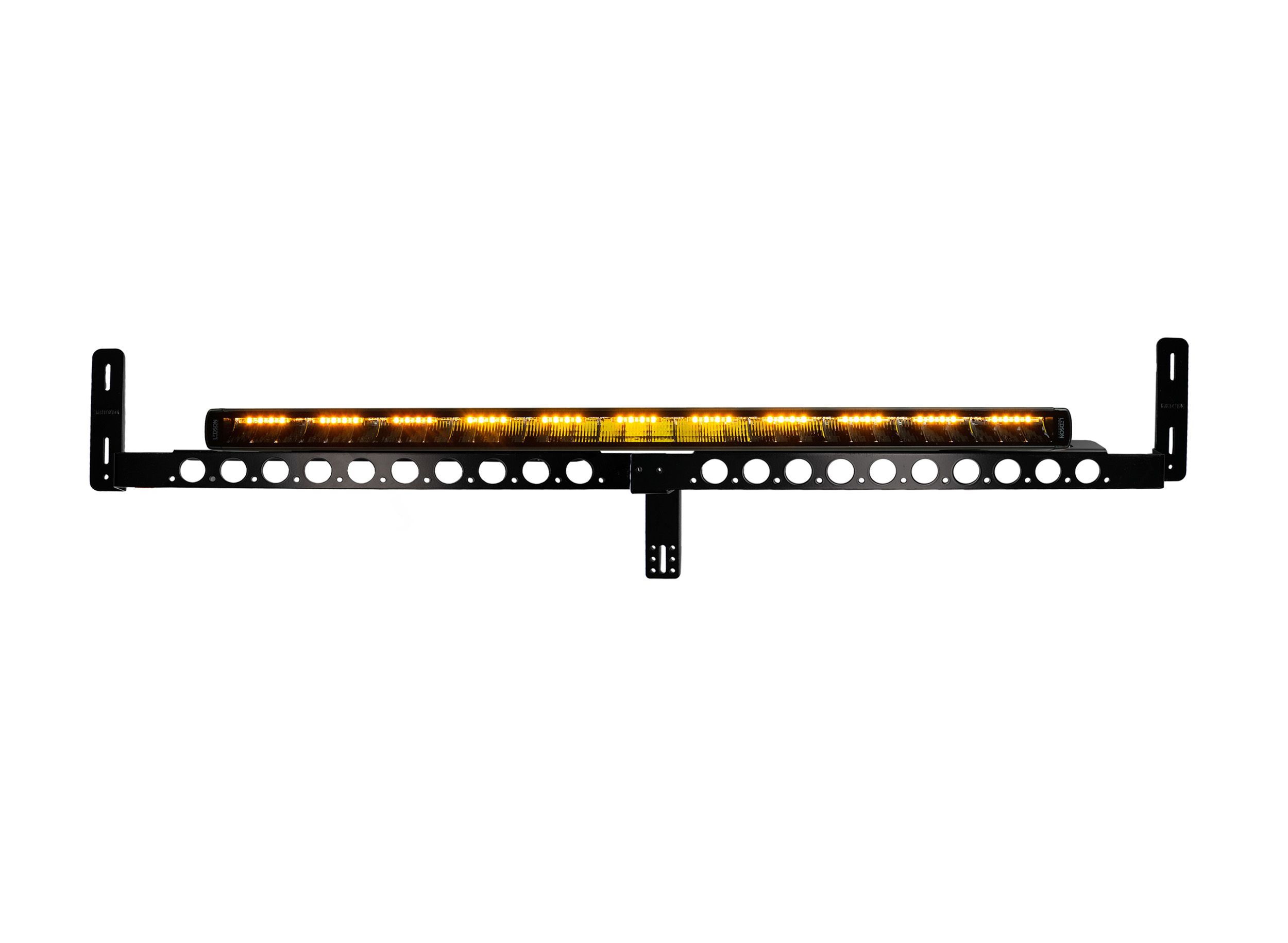

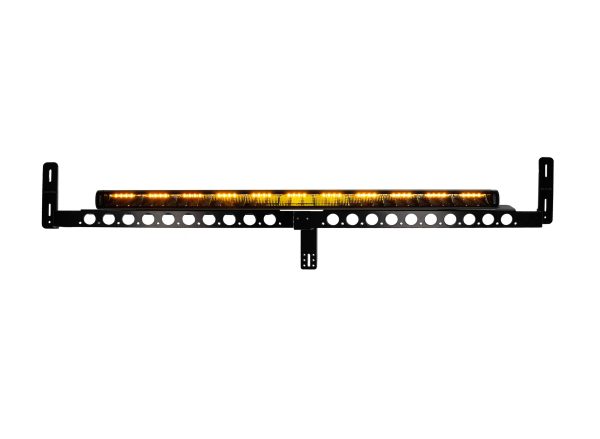

With our custom-designed and Swedish-made mounting kit, you get a quick and cost-effective installation. You can mount the light bar either discreetly behind the front grille or let the light bar protrude through the grille.

Additionally, the package includes an adapter cable that simplifies connecting the LED light bar’s DT connector to the pre-wired truck harness located behind the front panel/grille.

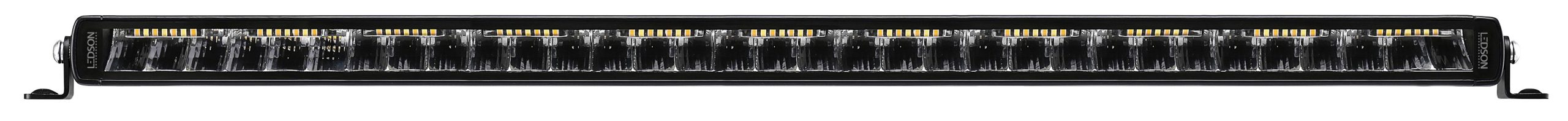

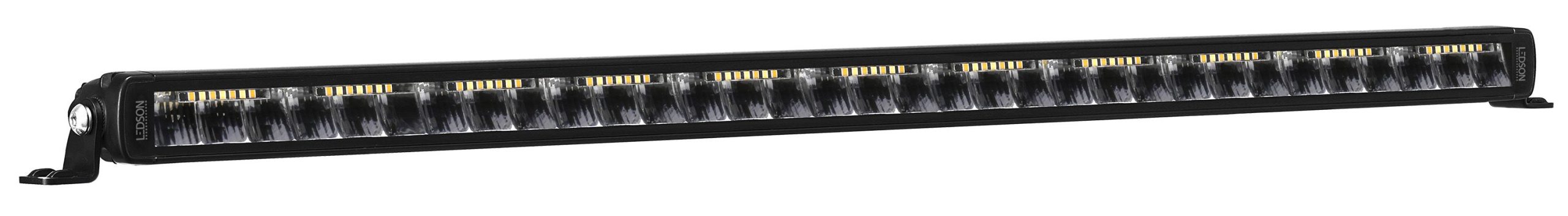

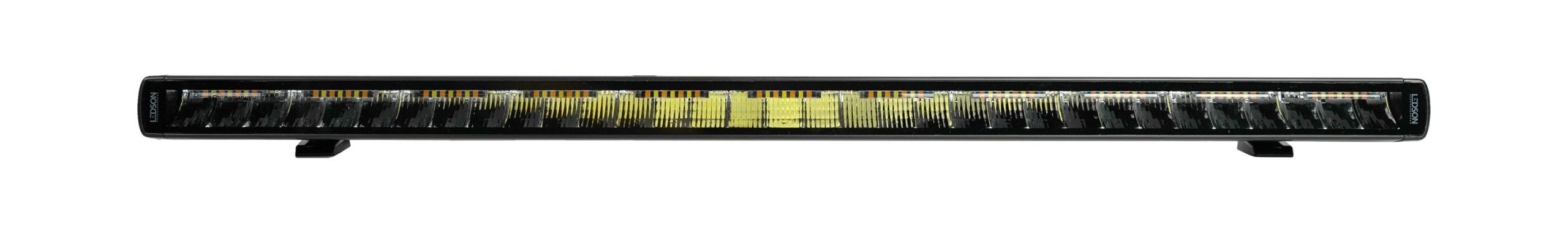

• 32″ Phoenix+ LED- bar (part no 33305335)

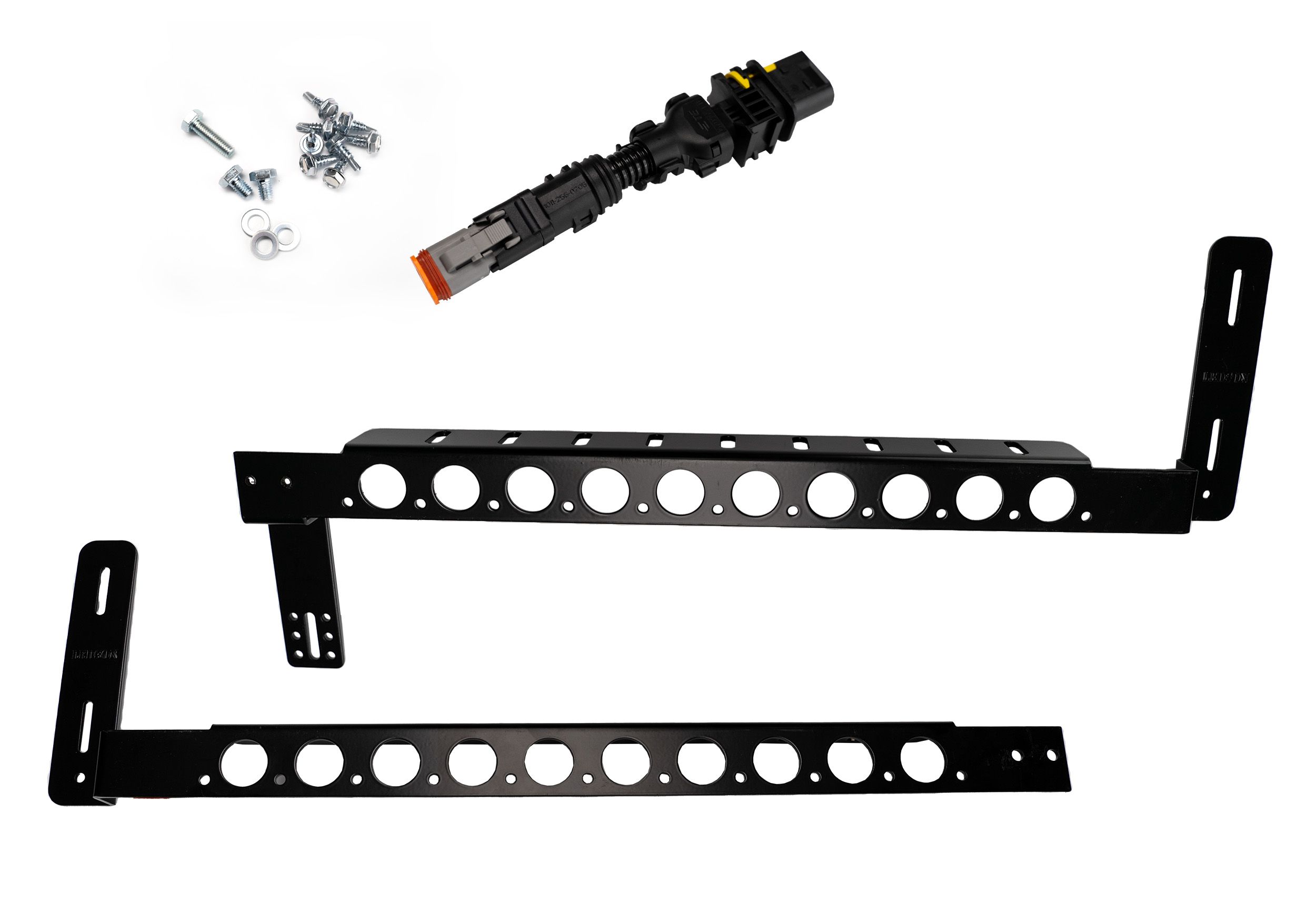

• Installation kit with all necessary components for an easy and quick setup, including installation instructions
• Adapter cable with Volvo connector (item number 33459051)

Auxiliary light and warning light in one unit with this multifunctional Ledson bar! With the strobelight function you save both valuable installation time and get a much cleaner look!

Phoenix+ is E-approved as auxiliary light according to ECE R112 and has approved strobelight (ECE R65). It´s also equipped with xenon white or yellow / orange position lights, which is optional to connect.

You get awesome strength in the high beam and a safer job on the road!

Characteristics:

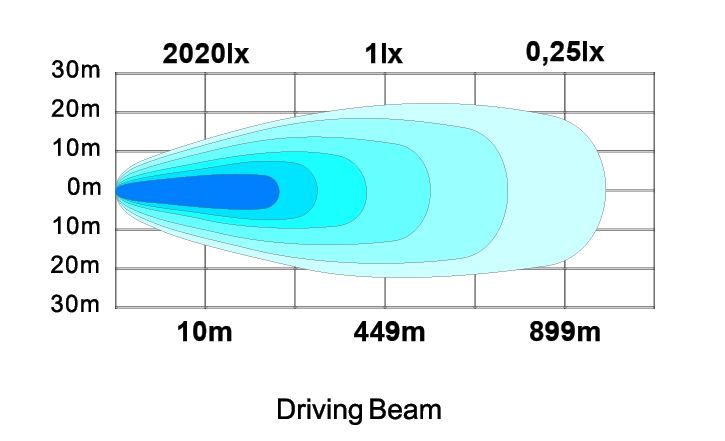

• Driving Beam beam pattern (wide and oblong)
• E-marked ECE R112 (ref. 50)
• ECE R65 / R7 / R10 (EMC-rated)
• Range: 449 m (1 lux)
• Lumen: 13860 lm (theoretical), 5583 lm (actual)
• Color temperature 5700K (cold white)

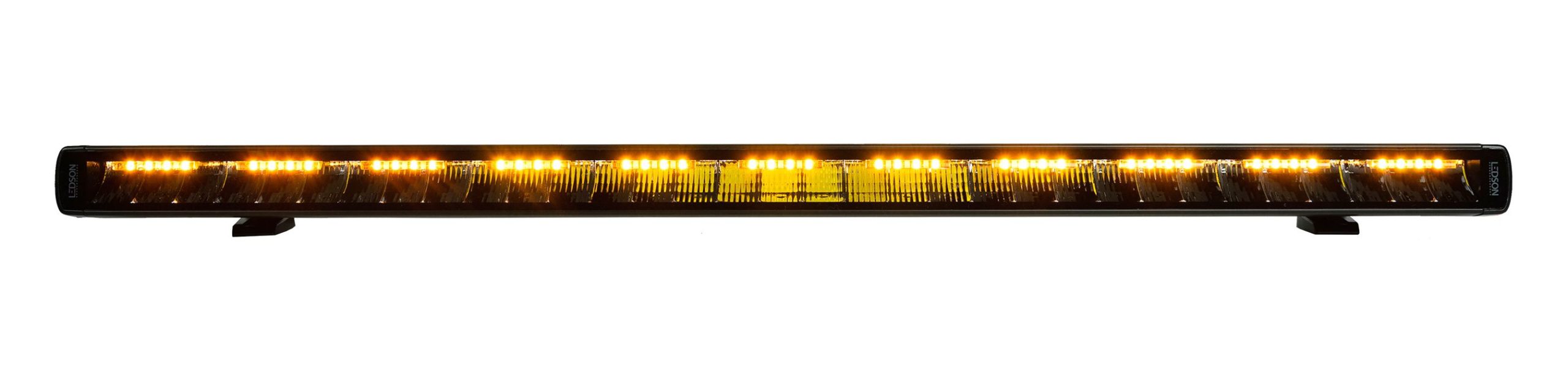

• Strobelight: Orange (ECE R65)

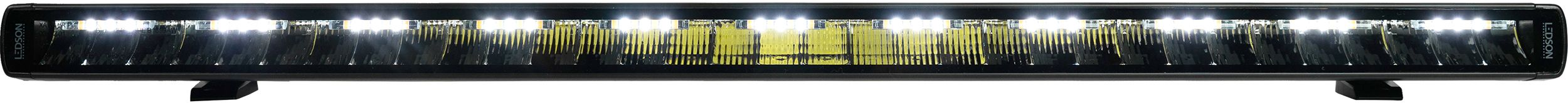

• Position light: Xenon white alt. yellow/orange

Technical data:

• 165 W (33 x OSRAM CSHP LED)
• IP69K: withstands hot water under pressure
• Aluminum housing and polycarbonate lens
• 4-pin DT connector (included)
• Voltage: 10-30V

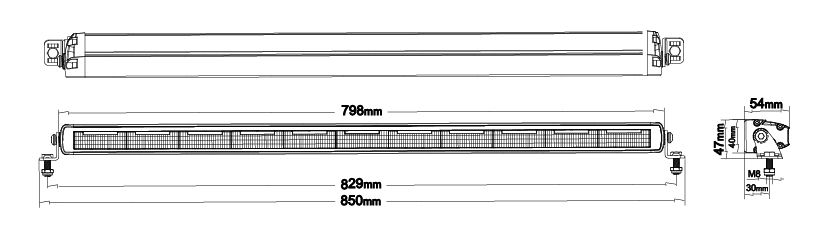

Dimensions & weight (excl. Brackets):

• Width: 798 mm
• Height: 40 mm
• Depth: 54 mm (excl. Bracket)
• Weight: 2100 grams

Cable colors:

• Green: Flash function
• Gray: White position light
• Yellow: Orange position light

NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply. DT connector (male) with joint included with the product.
