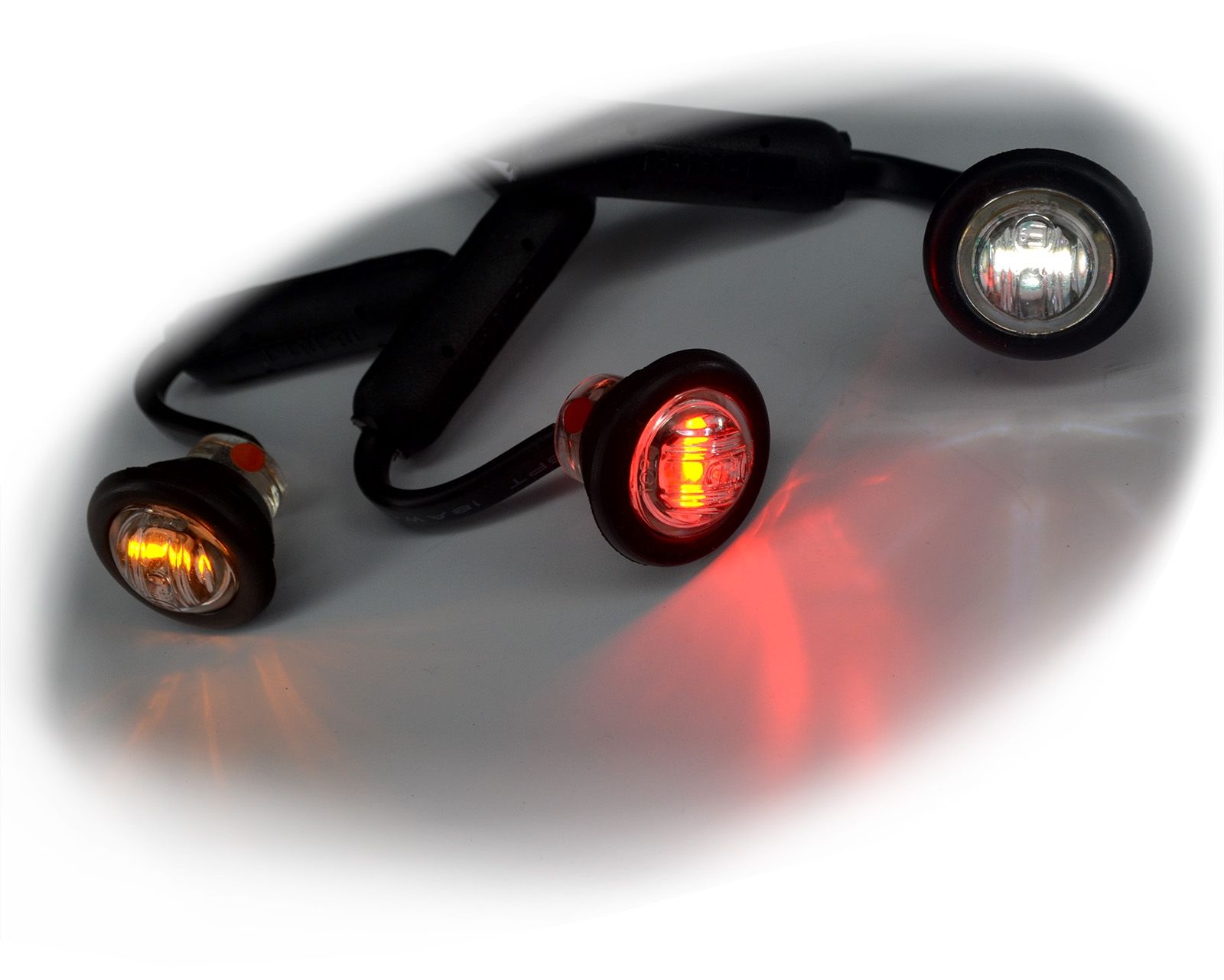

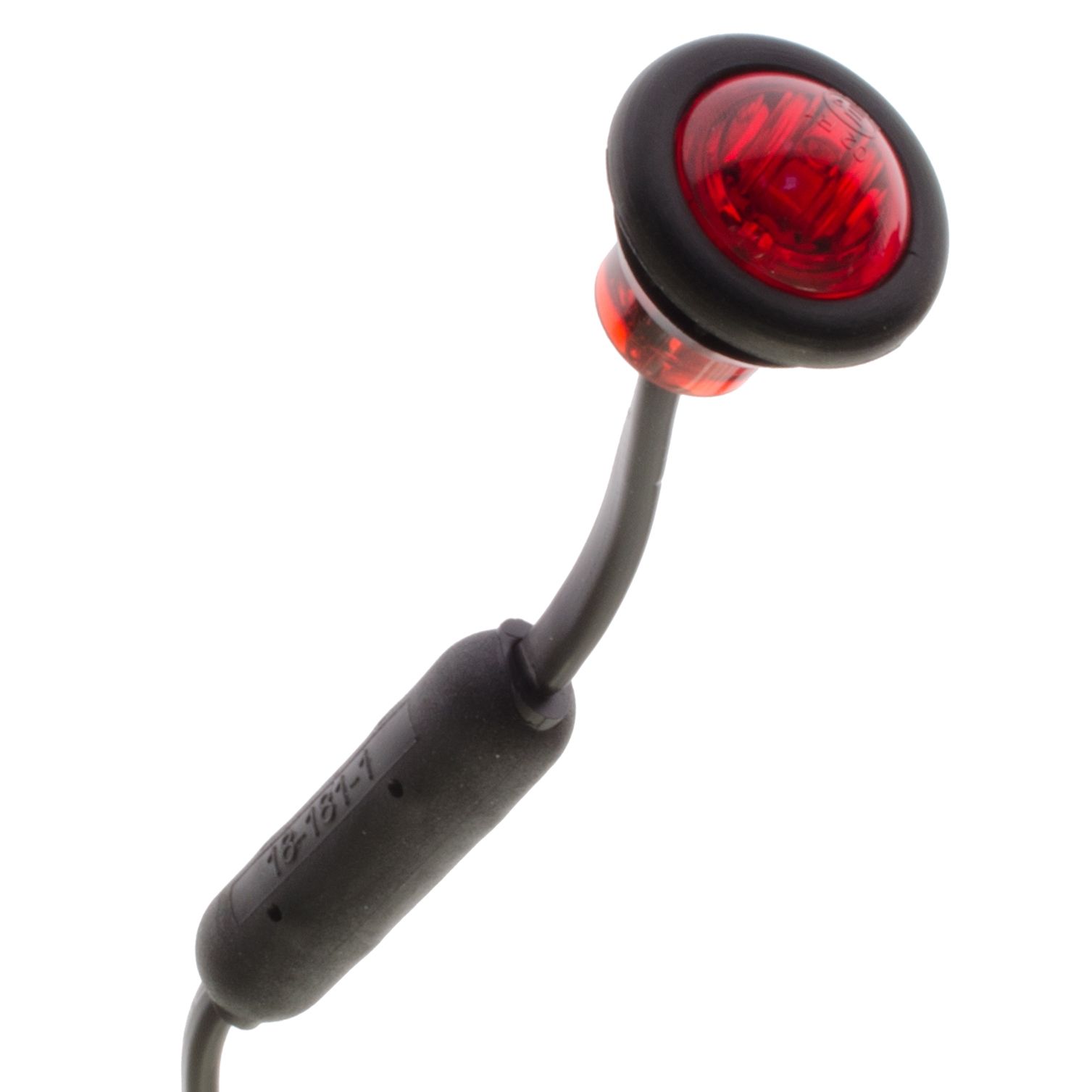

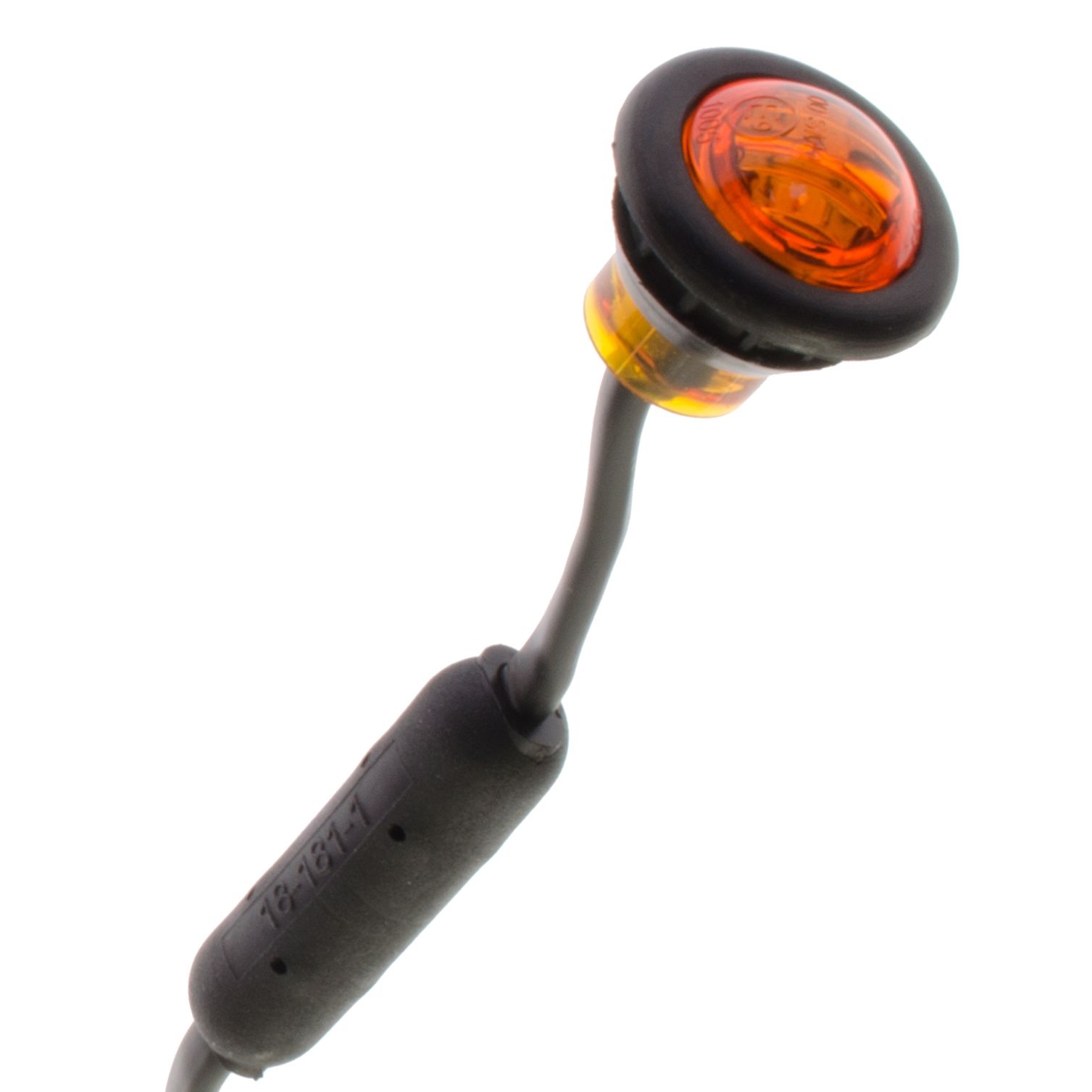

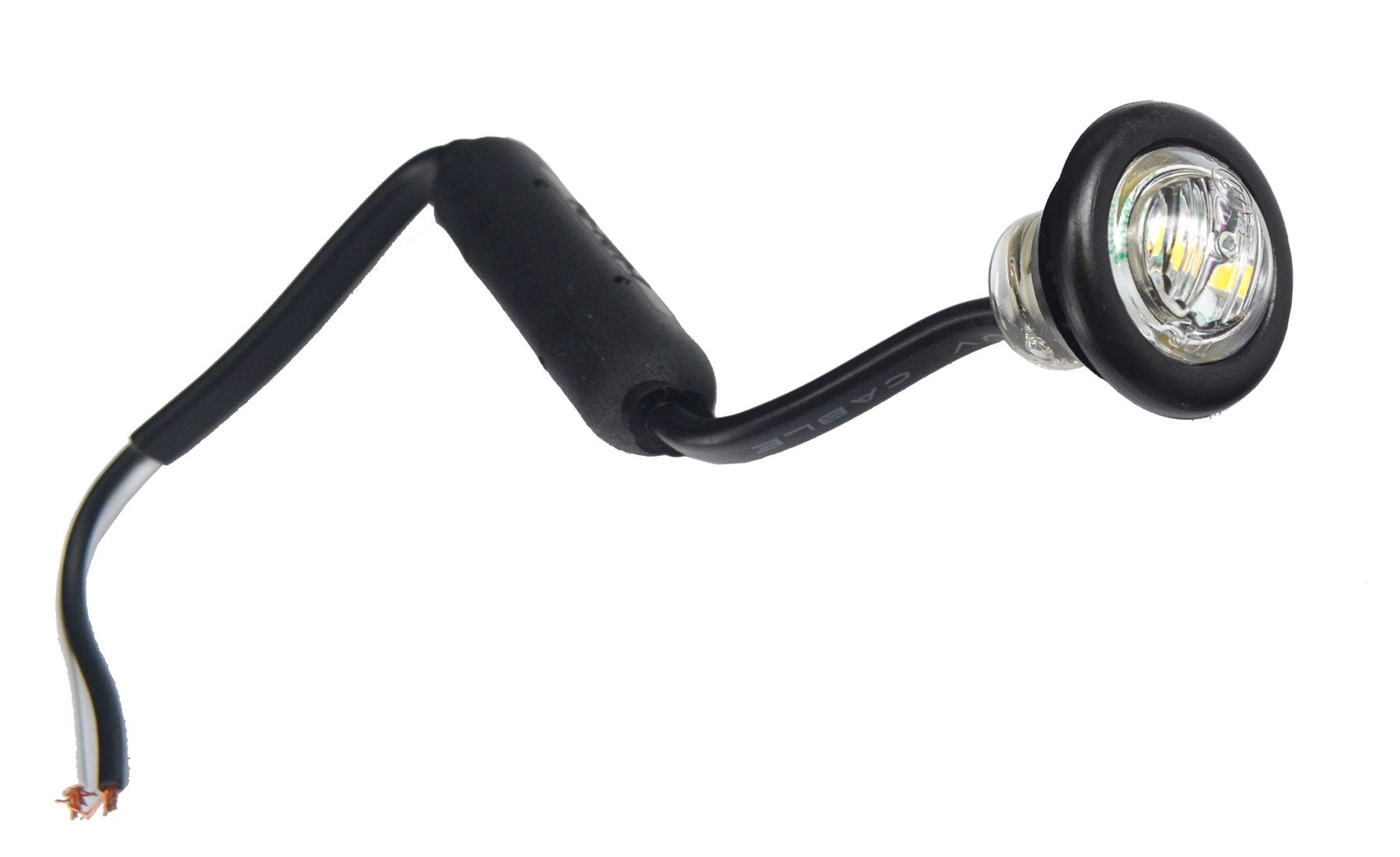

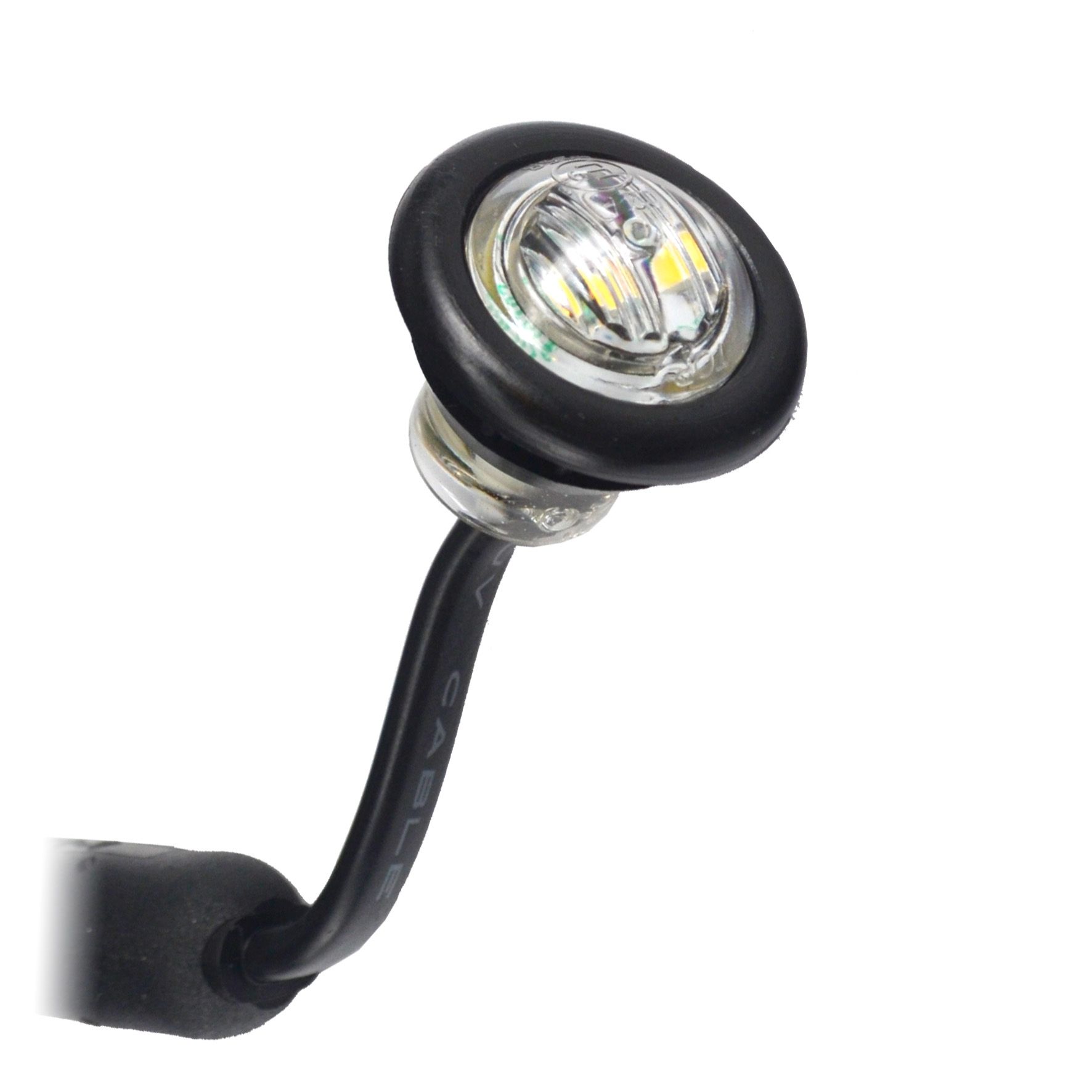

Pearl recessed dot light (E marked, flat/curved mounting, 12-24V) 360011

€1.00

✓ Clear, colored or smoked lens
✓ Recessed, E-marked R91/R7, IP68 rating
✓ 2 x gaskets (flat / tube mounting)

Description

Dot light in clear glass or colored glass to be mounted as recessed, E-marked E9. It is IP68-rated which ensures very high reliability as to how waterproof the product is.

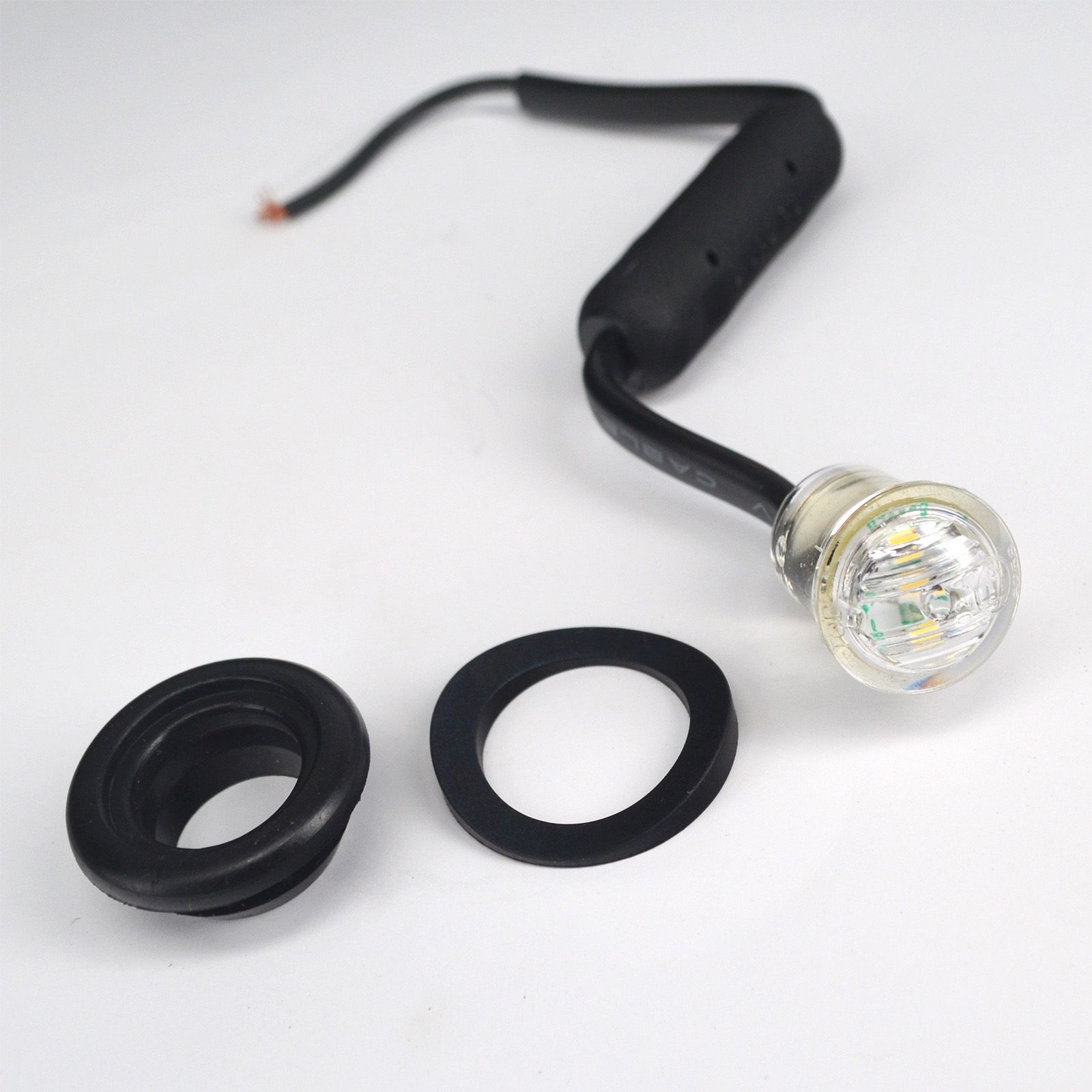

2 different gaskets are included: one for flat mounting and one for pipe mounting.



Specifications:

  • Waterproof
  • Voltage: 12V and 24V
  • One LED / diode per light

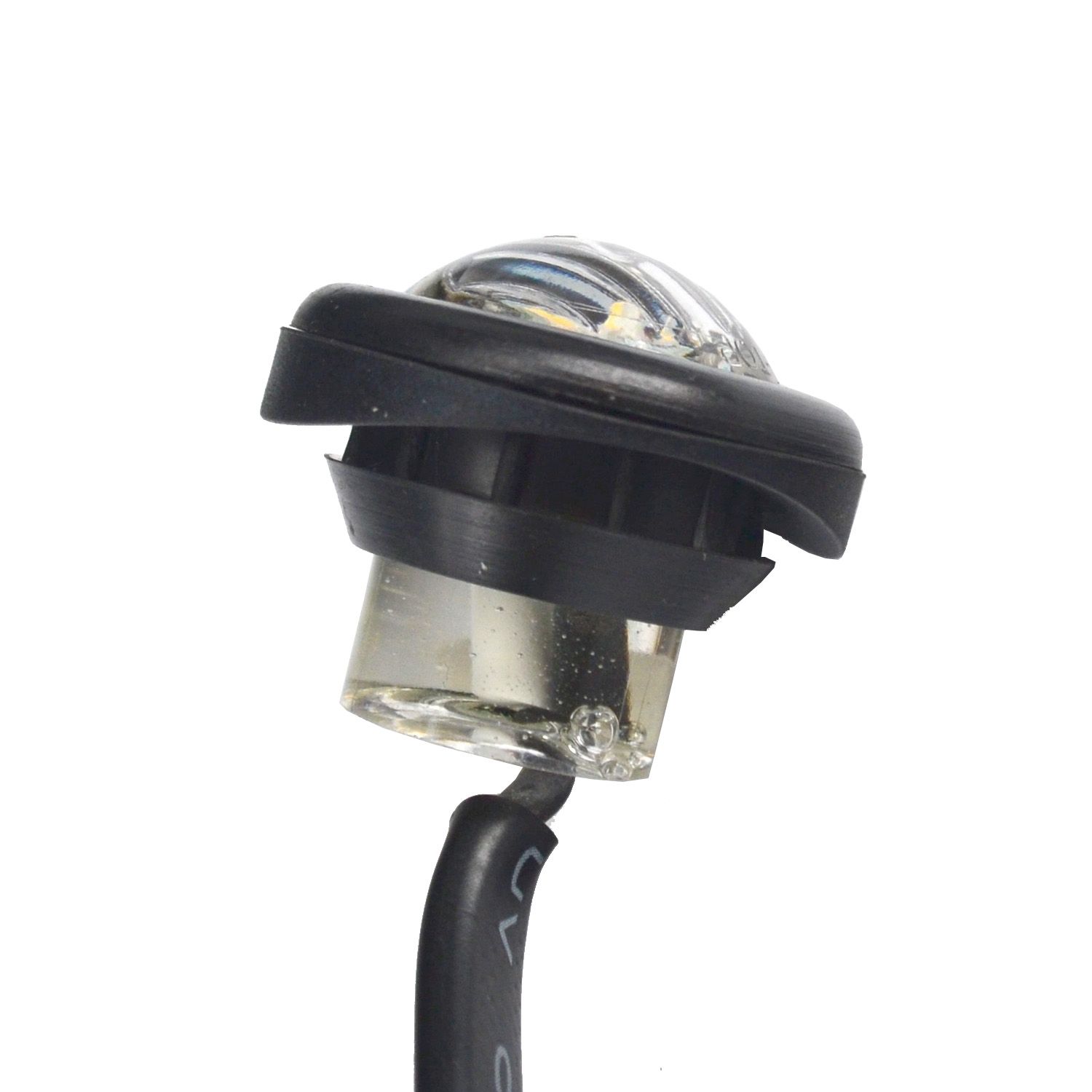

  • Requires boreholes of 20mm when mounted with rubber ring (can be fitted without rubber ring)
  • E-marked – xenon white (R7), orange (R91), red (R7)
  • 2 x gaskets (flat / tube mounting)



Measurements:

  • Diameter: 28mm
  • Depth: 25 mm
  • Height: 7 mm
  • Cable: 0,2 m
  • Cable area: AWG18 / 0,80sqmm

Additional information

Glass

Clear, Coloured, Smoked
Colour

Orange, Xenon White, Red



Technical information
E-marked E9
Delievered as pcs
Color Red
Warranty 12 months
Number of diodes 1 pcs
Area of use Outdoors
Current 12V/24V 0,1A / 0,1A
Ignition time, cold to full Direct
Lightsource LED

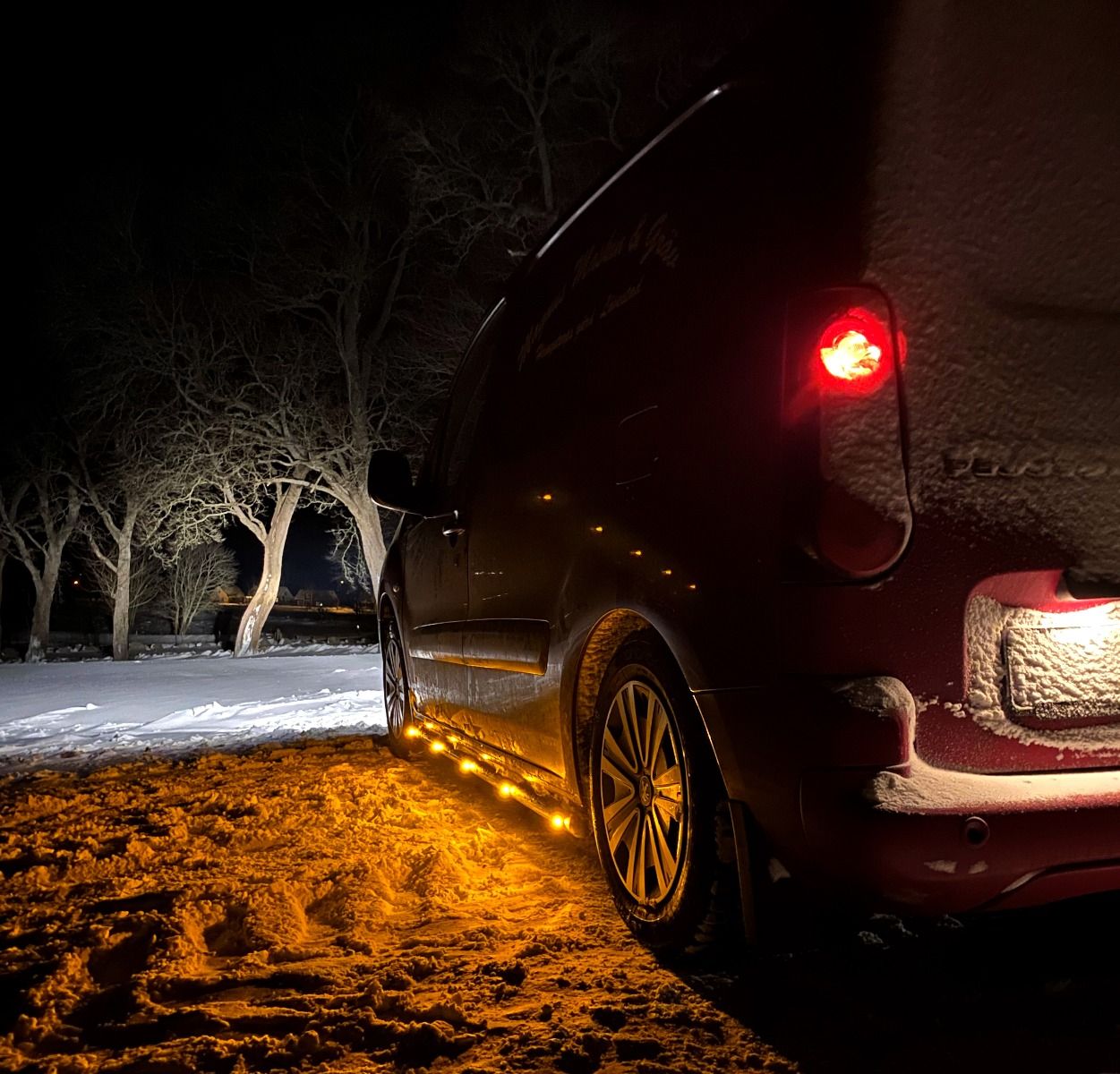

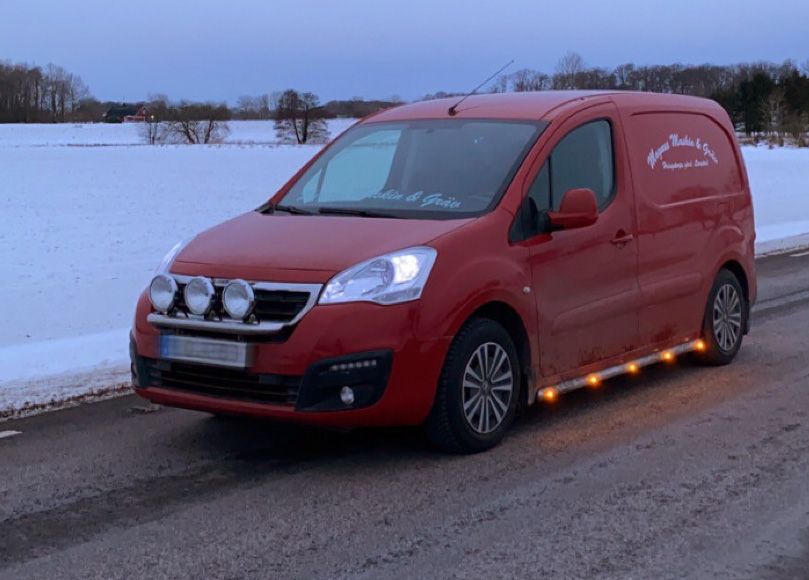

Position Positionlight, Sidemarker
Lightsource LED
Amount of diodes 1 st
Voltage 12-24 V
Diameter 28 mm (Drill hole 18 mm when installing with rubber ring (can be installed without rubber ring)
Height (mm) 7 mm
Current 12V 0.1
Current 24V 0.1
Depth 25 mm
Functions (positions) Positionlight, Sidemarker
Cablelength Text 20 cm
