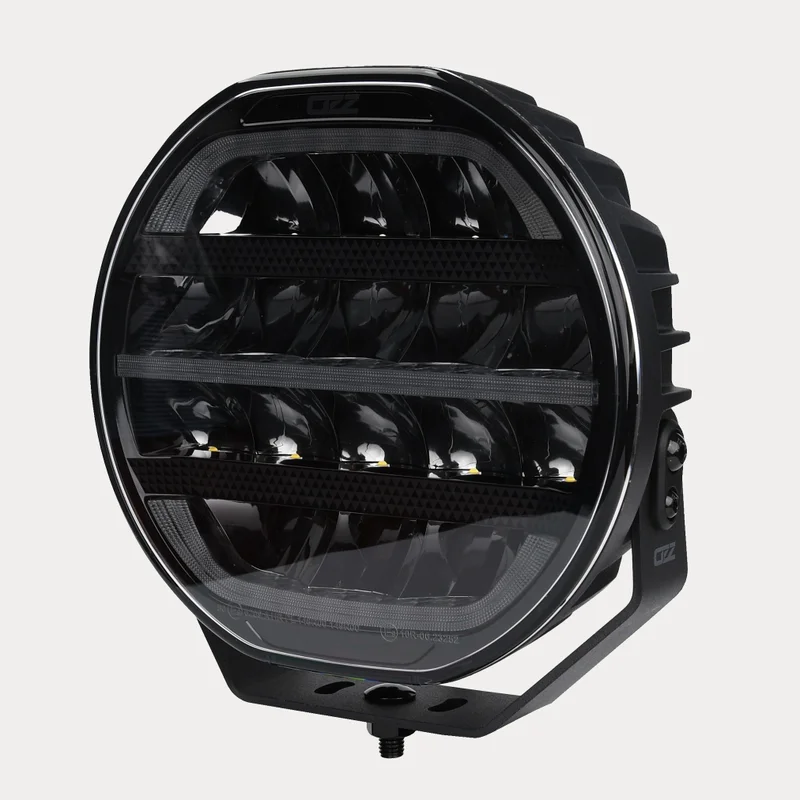

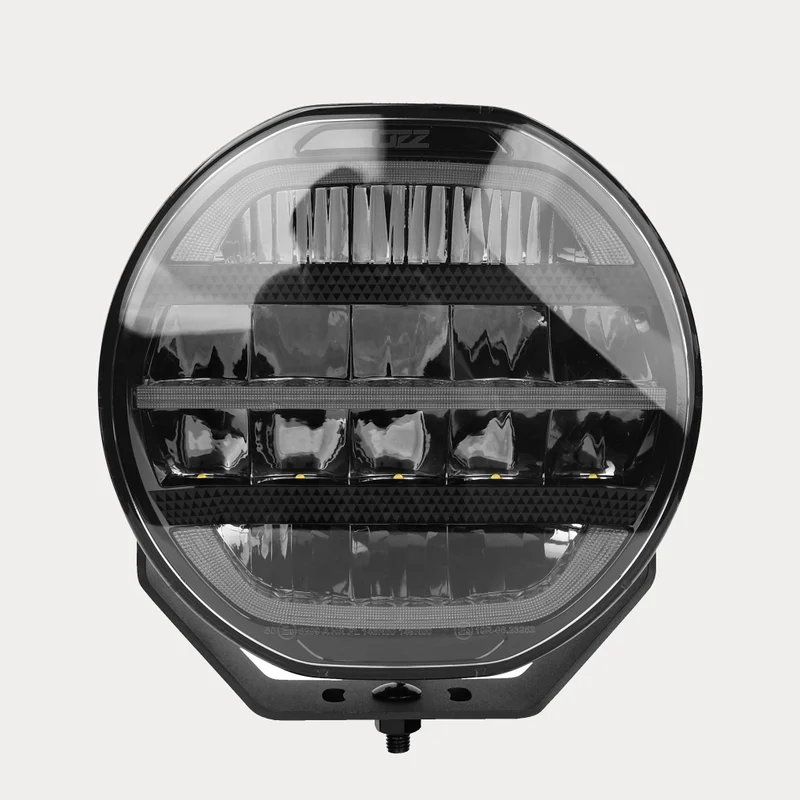

OZZ XR2 LED driving lights 7″ | 88103

€1.00

Whole series OZZ XR 7 series
Dimensions ø178 x 170mm
Lumen 7200 lumens
Warranties 3 years
Brand OZZ

Description

Details
SKU 88103
Brand OZZ
Suitable for 4×4, Commercial Vehicles, Truck
Warranty 3 years
Voltage 9–36V
Certification CE, ECE-R10, ECE-R148, ECE-R149
Shape Round

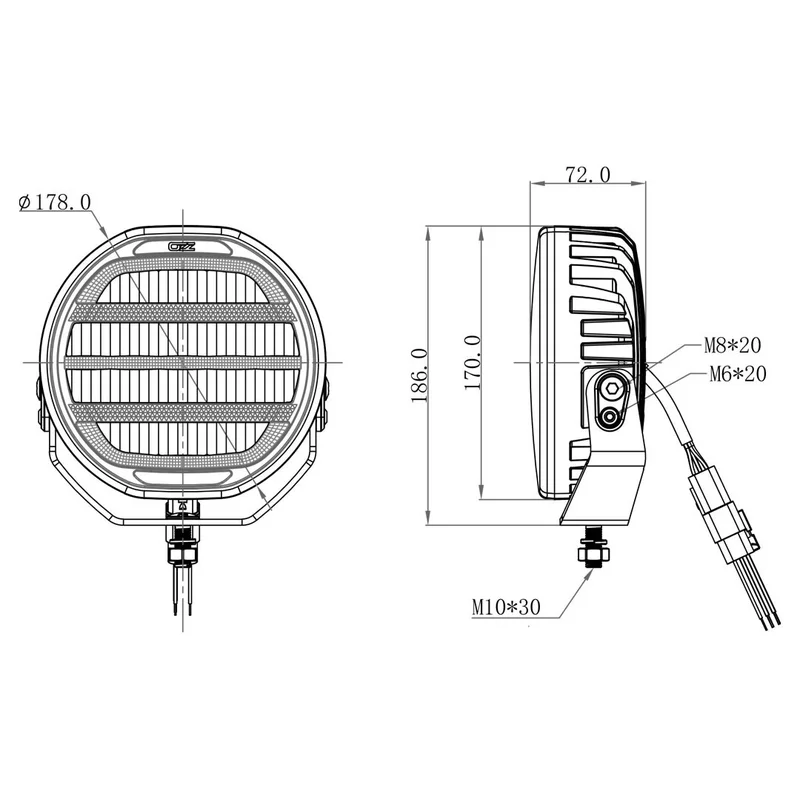

Dimensions Ø178 × 170 mm
Light Image Driving Beam
Light Colour Amber, White
Luminous Flux 7,200 lumens

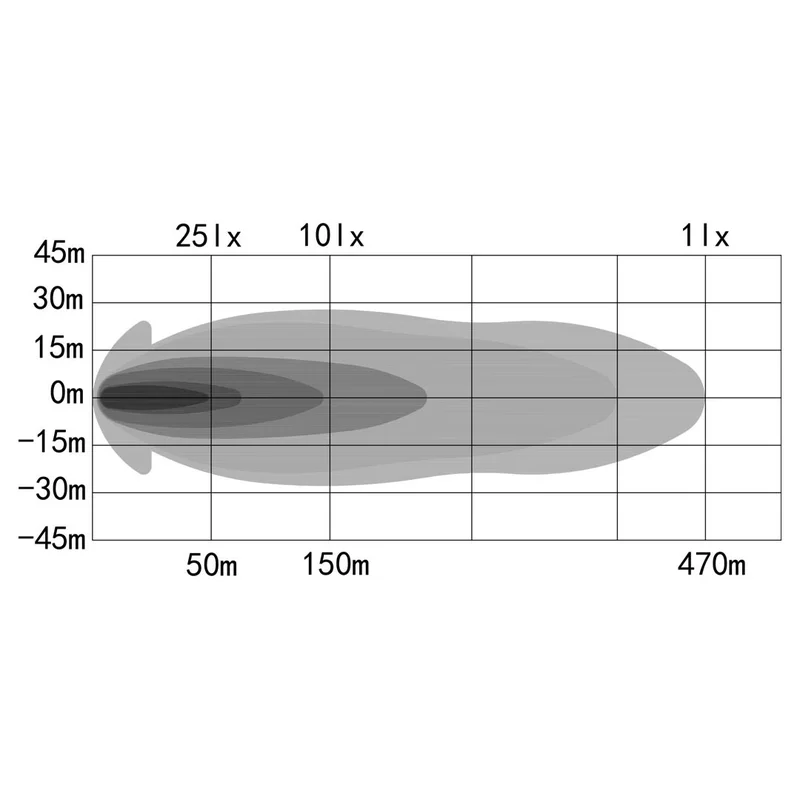

Light Range 25 lux @ 50m / 1 lux @ 470m
Number of LEDs 16 × Osram LEDs
Position Lights Yes

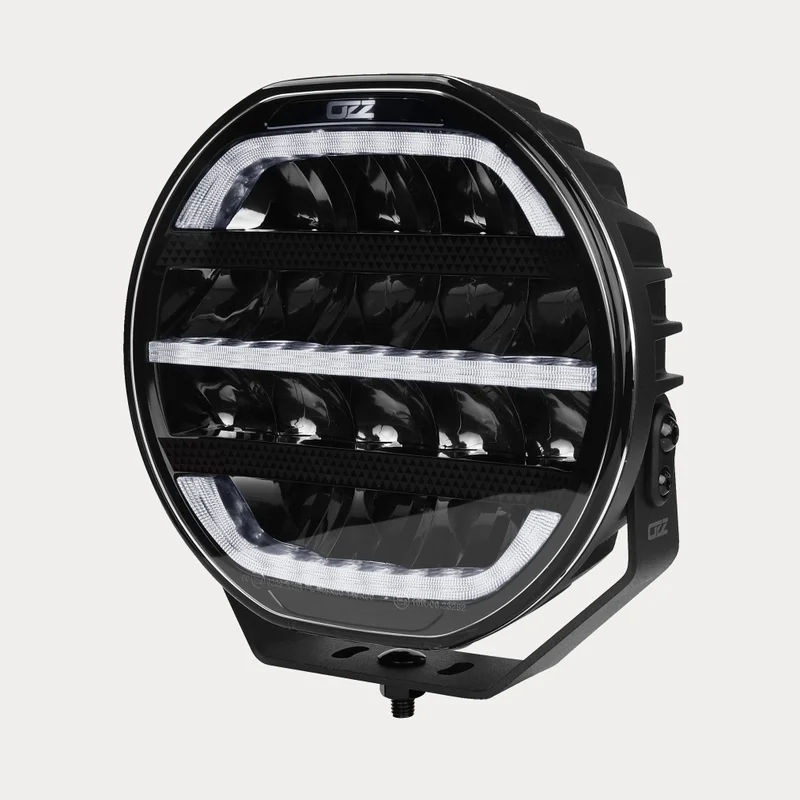

White Position Lights Yes

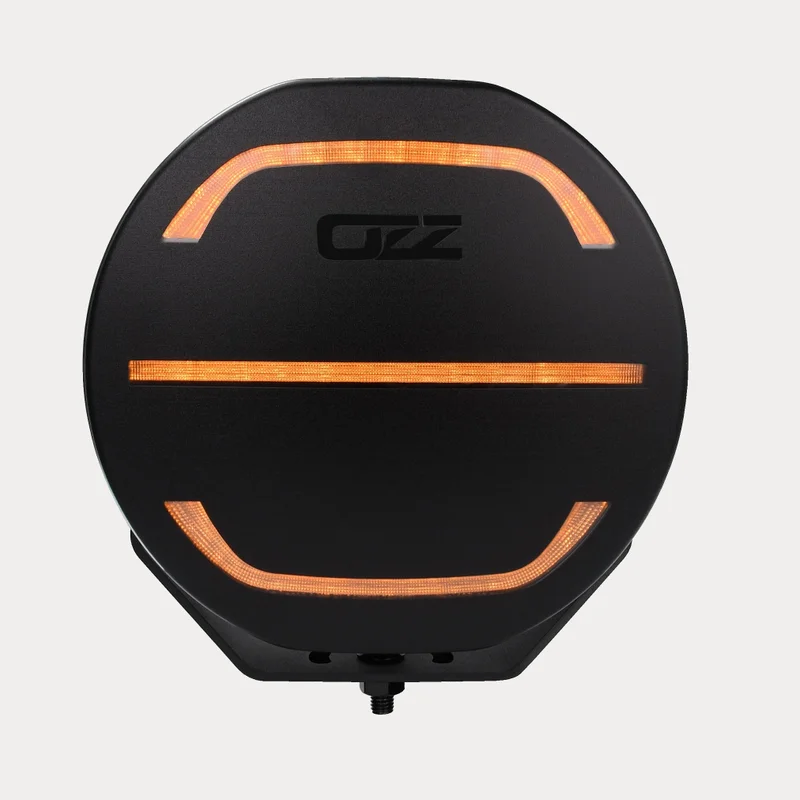

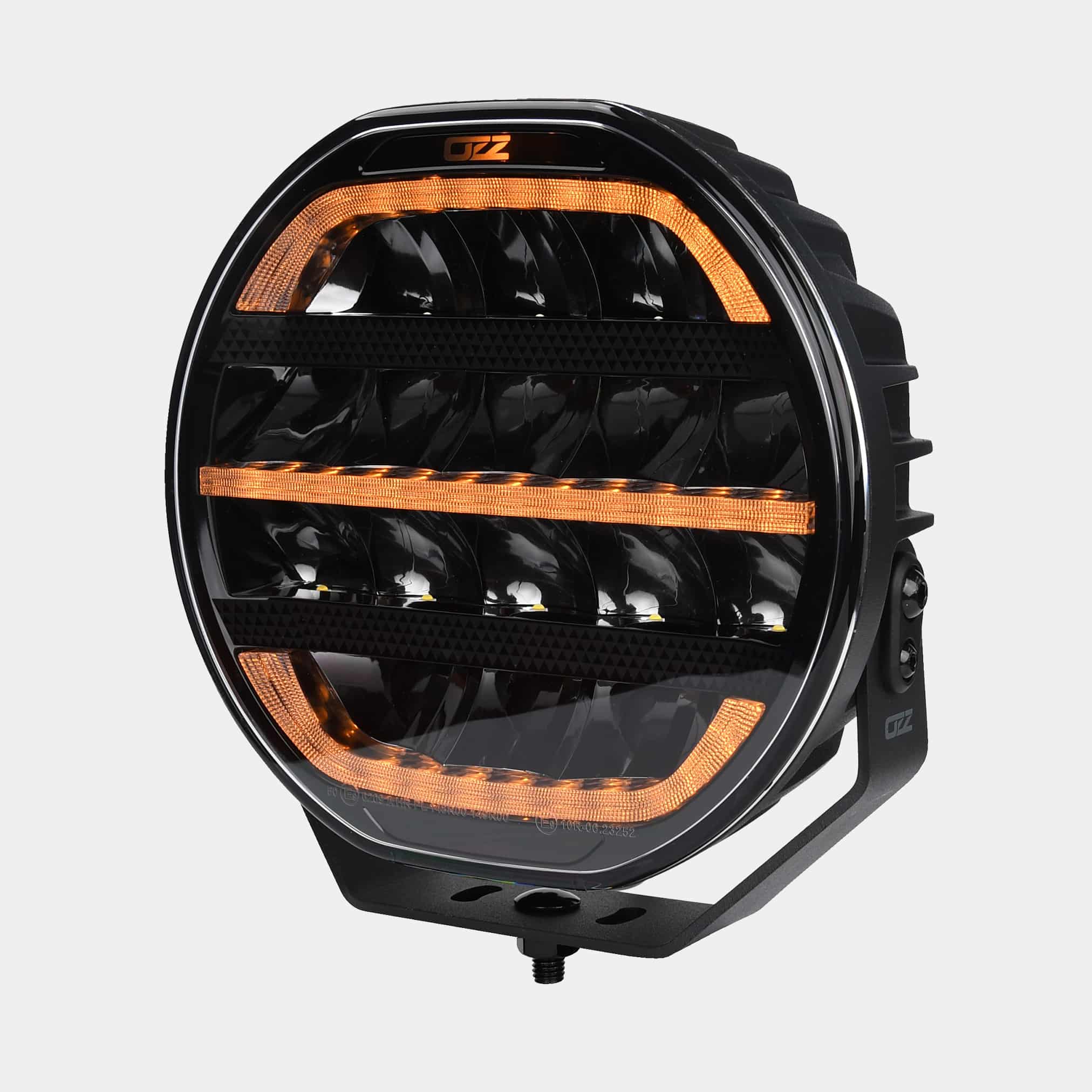

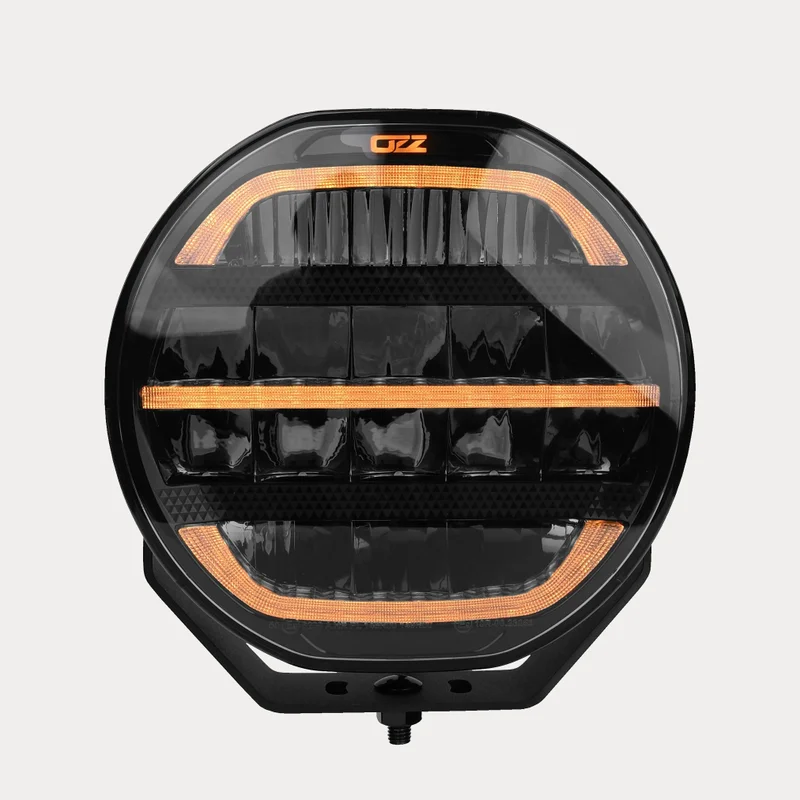

Amber Position Lights Yes
Reference Number 50
Housing Material Aluminium
Housing Colour Black
Lens Material Polycarbonate
Lens Colour Transparent
Connector 4-PIN Deutsch connector
Cable Length 100 cm
Wattage 80 W
Power Consumption (12V) 5.7A
Power Consumption (24V) 2.6A
Protection Class IP69K
Mounting Type Surface mounting
Alternative For Lazer Sentinel
Warning Light Functions No
Driving Light Functions Amber & White position lights

About:

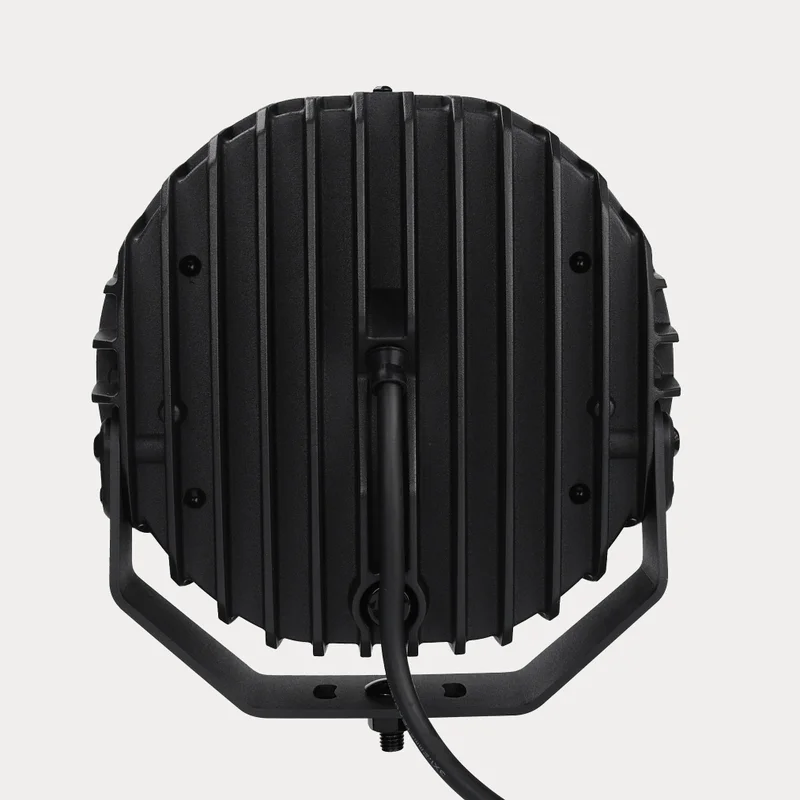

The OZZ XR 7 series LED driving light with a diameter of 178 mm is designed for applications where both visibility and durability are priorities. With a diffused light image (Driving Beam) and a light colour ranging between amber and white, this LED driving light is suitable for mounting on vehicles used in construction, agricultural or industrial environments. The sturdy aluminium housing combined with the impact-resistant polycarbonate lens offers a high level of protection against external influences.

This LED driving light operates within a voltage range of 9-36 V and delivers a light output of 7,200 lumen. Control is via a 4-PIN Deutsch connector combined with a 100 cm cable, which facilitates flexible and safe installation. The product meets the IP69K standard and is certified to CE, ECE-R10, ECE-R148 and ECE-R149.

Plus points of this series:

Video:
