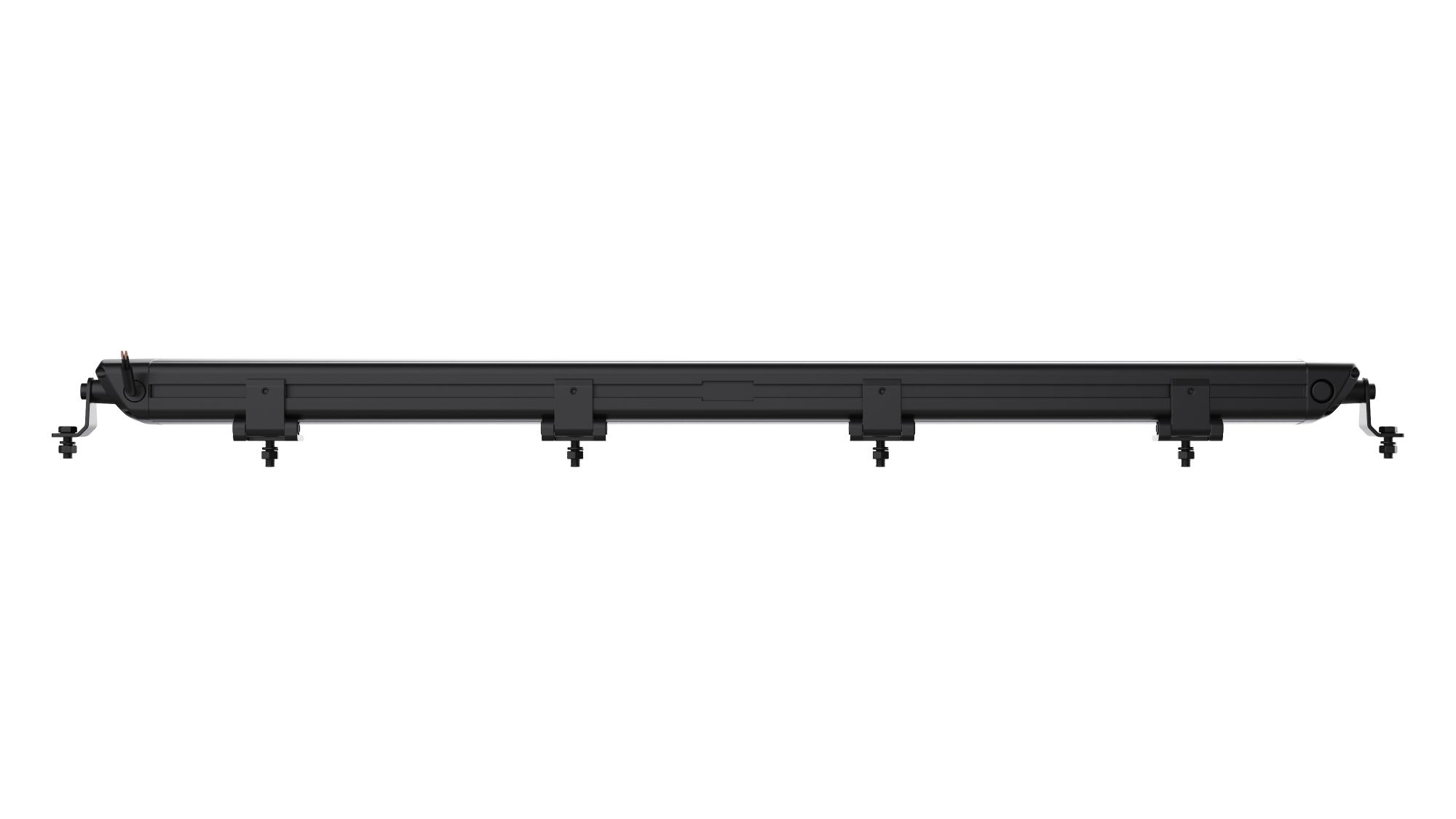

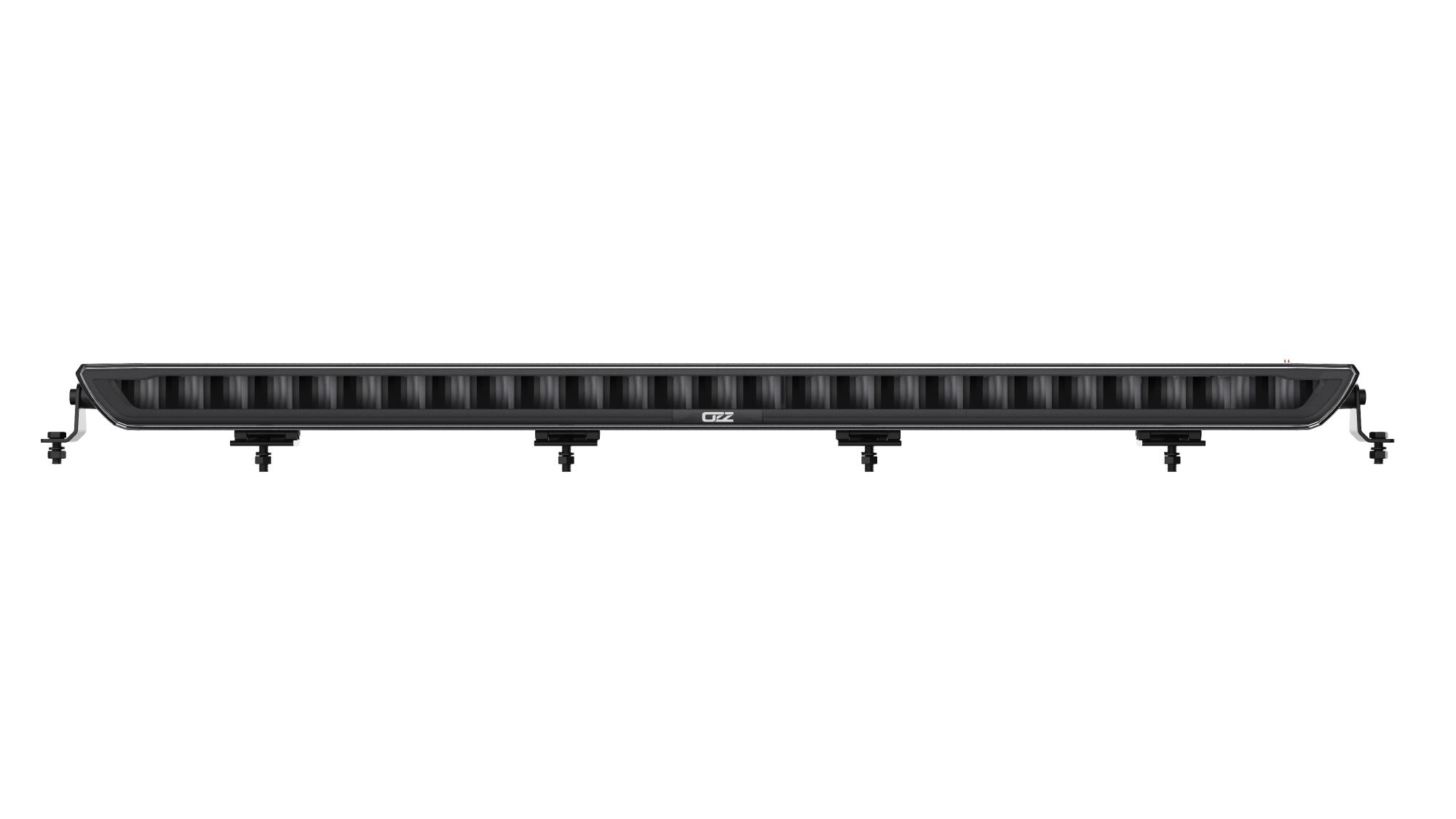

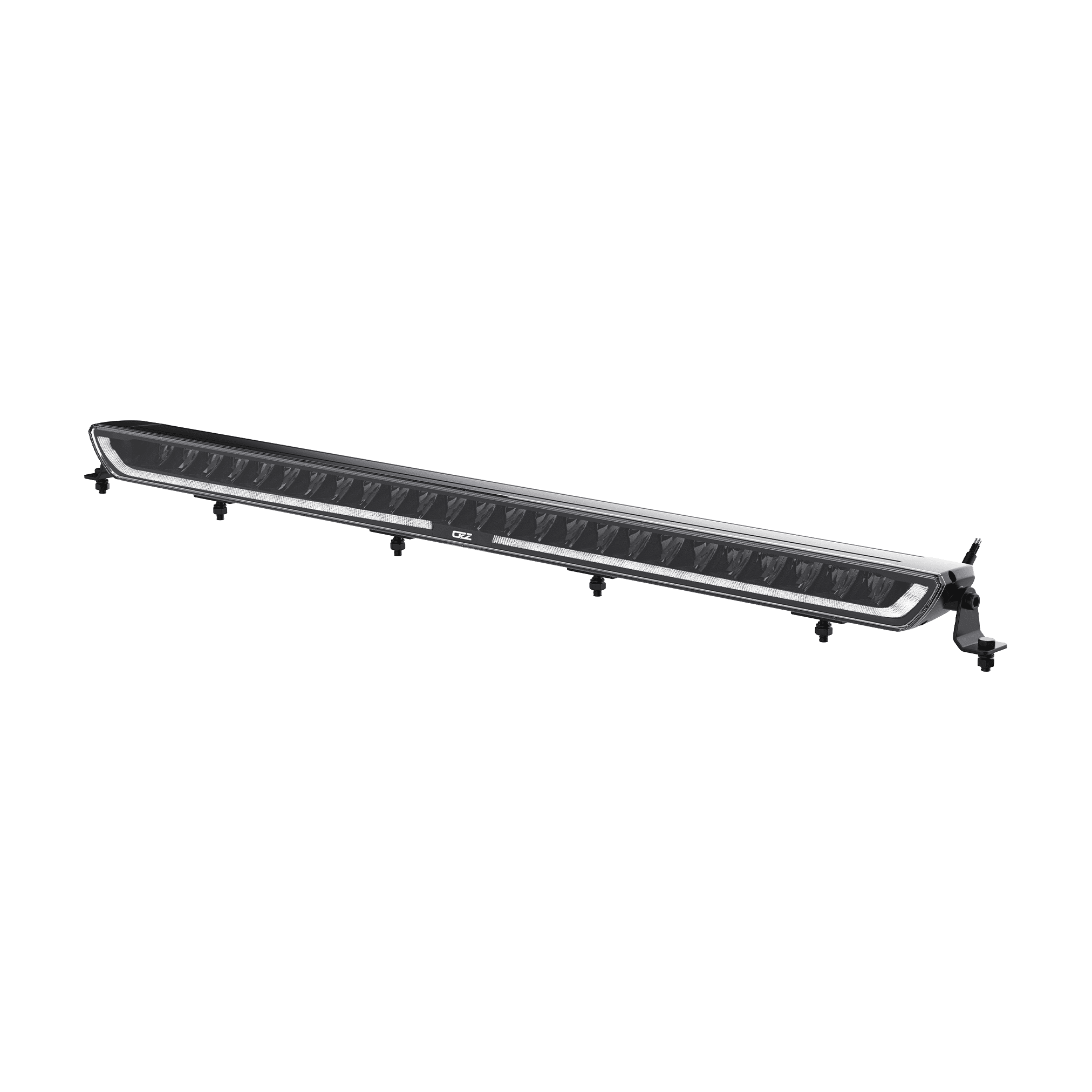

OZZ XB1 P40 black LED bar 88207

€1.00

Whole series OZZ XB series
Dimensions 1003 x 70 x 53mm
Lumen 27,000 lumens
Warranties 3 years
Brand OZZ

Description

OZZ LED Light – SKU: 88207
Voltage 10–32V
Certification CE, ECE-R10, ECE-R148, ECE-R149
Warranty 3 Years
Brand OZZ
Suitable For Trucks
Dimensions (L×W×H) 1003 × 70 × 53 mm
Shape Lightbar
Housing Material Aluminium
Housing Colour Black
Lens Material Polycarbonate
Lens Colour Transparent
Light Image Driving Beam
Light Colours Amber, White
Position Lights Yes (Amber & White)
Number of LEDs 27
Light Range 1 lux @ 850m
Reference Number 50
Lumen Output 27,000 lumens
Wattage 198W
Power Consumption 12V: 16.5A / 24V: 8.25A
Connector Type 2-PIN Deutsch Connector
Cable Length 270 cm
Protection Class IP69K
Mounting Type Surface Mounting
Mounting Bracket Side & Rear Mounting
Warning Light Functions No
Driving Light Functions Amber & White Position Lights

About:

The OZZ XB series LED bar is designed for applications on vehicles that require reliable lighting under a variety of conditions. With a housing made of aluminium and an impact-resistant polycarbonate lens, this LED bar is suitable for intensive use. The light image is Driving Beam and the light colour is switchable between amber and white. Thanks to the wide voltage range of 10-32 V, mounting on both 12 V and 24 V systems is possible.

This LED bar measures 1003x70x53 mm and delivers a light output of 27,000 lm at a power consumption of 151300 W. The combination of CE, ECE-R10, ECE-R148 and ECE-R149 certifications combined with the IP69K rating makes this a robust solution for vehicles in both road and off-road applications. The 2-PIN Deutsch connector and 270 cm cable supplied as standard facilitate quick installation. The OZZ XB series offers both side and rear support mounting for flexible positioning.

Plus points of this series:

– Stylish LED bar with distinctive design
– Supplied with side and rear mounting brackets as standard
– Unique dynamic start-up, a feast for the eyes
– Fully certified and high light output for excellent visibility
