€1.00
| Whole series | OZZ XB series |
|---|---|
| Dimensions | 686 x 80.2 x 50mm |
| Lumen | 18,000 lumens |
| Warranties | 3 years |
| Brand | OZZ |
| OZZ LED Light – SKU: 88205 | |
|---|---|
| Voltage | 10–32V |
| Certification | CE, ECE-R10, ECE-R148, ECE-R149 |
| Warranty | 3 Years |
| Brand | OZZ |
| Suitable For | 4×4, Commercial Vehicles, Excavators, Tractors, Trucks |

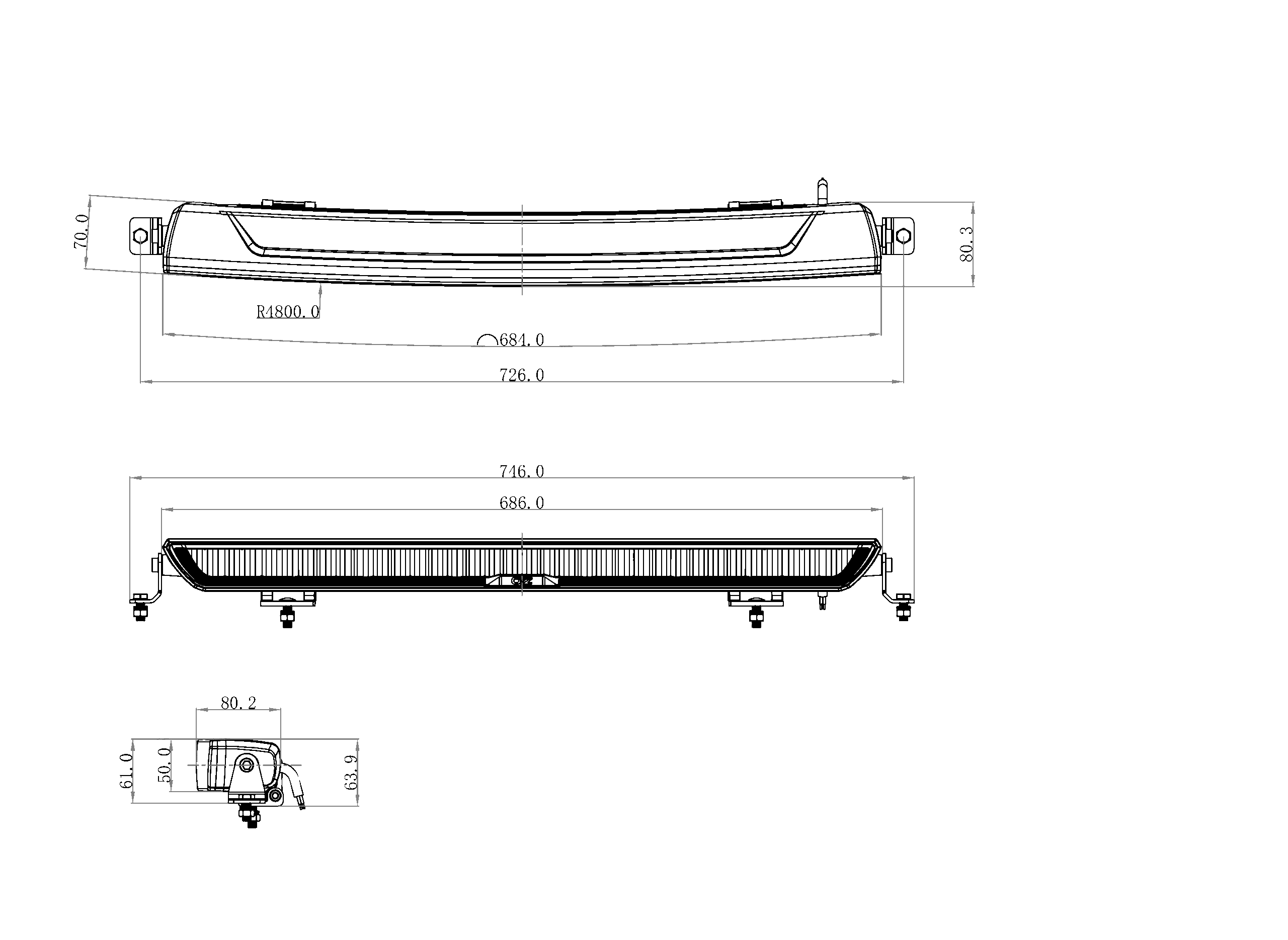

| Dimensions (L×W×H) | 686 × 80.2 × 50 mm |
| Shape | Lightbar |
| Housing Material | Aluminium |
| Housing Colour | Black |
| Lens Material | Polycarbonate |
| Lens Colour | Transparent |
| Light Image | Driving Beam |
| Light Colours | Amber, White |
| Posi |

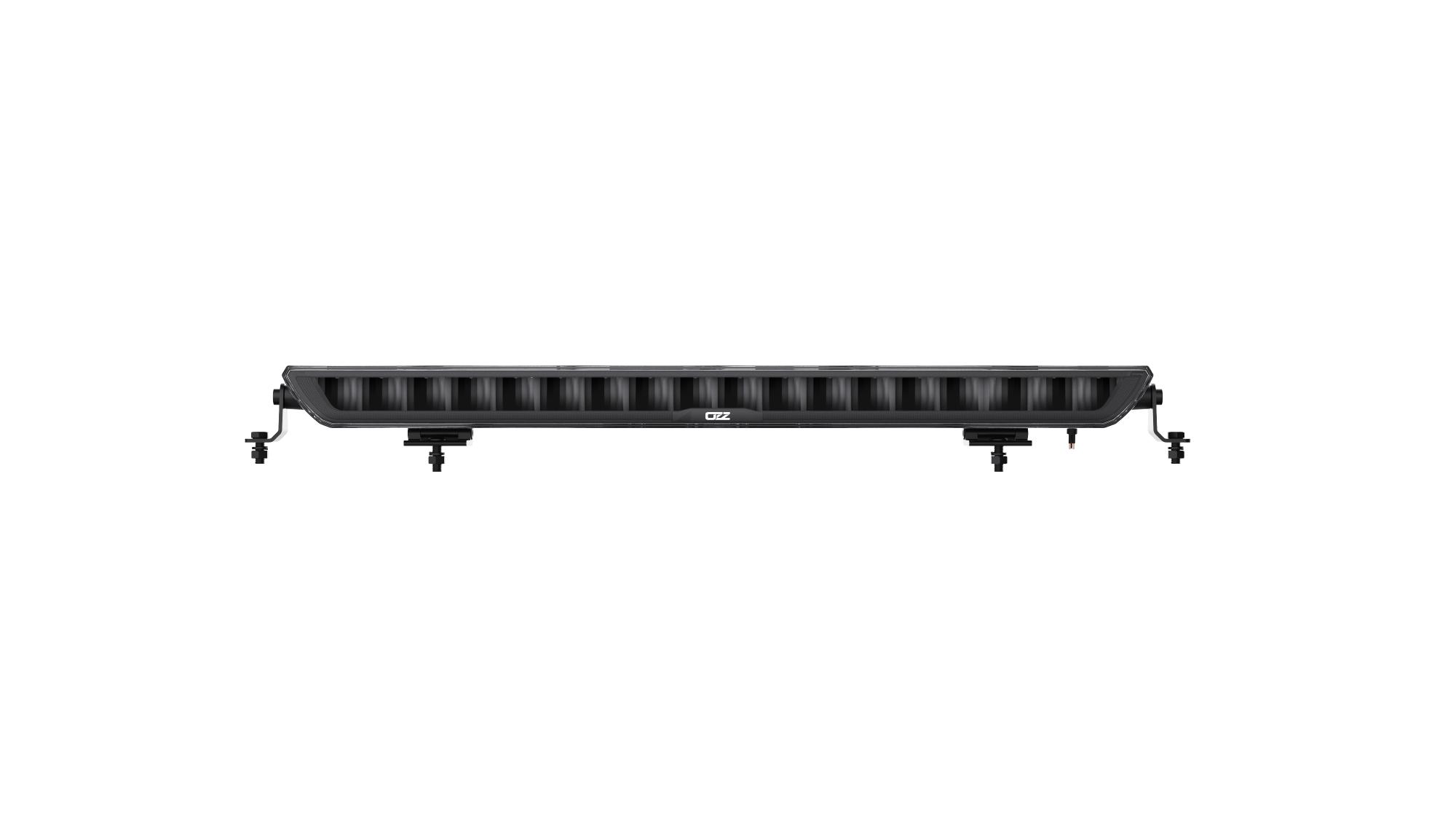

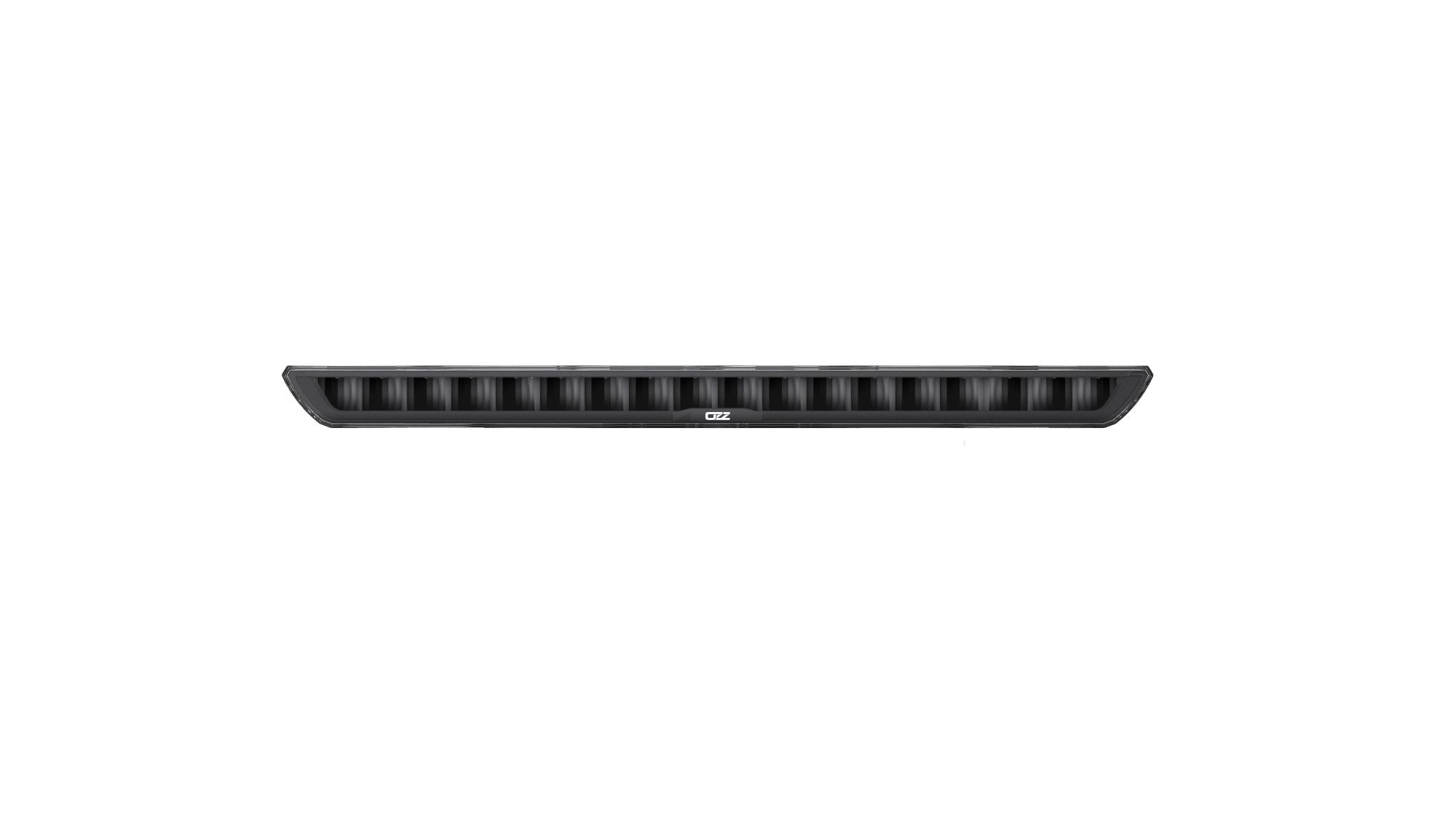

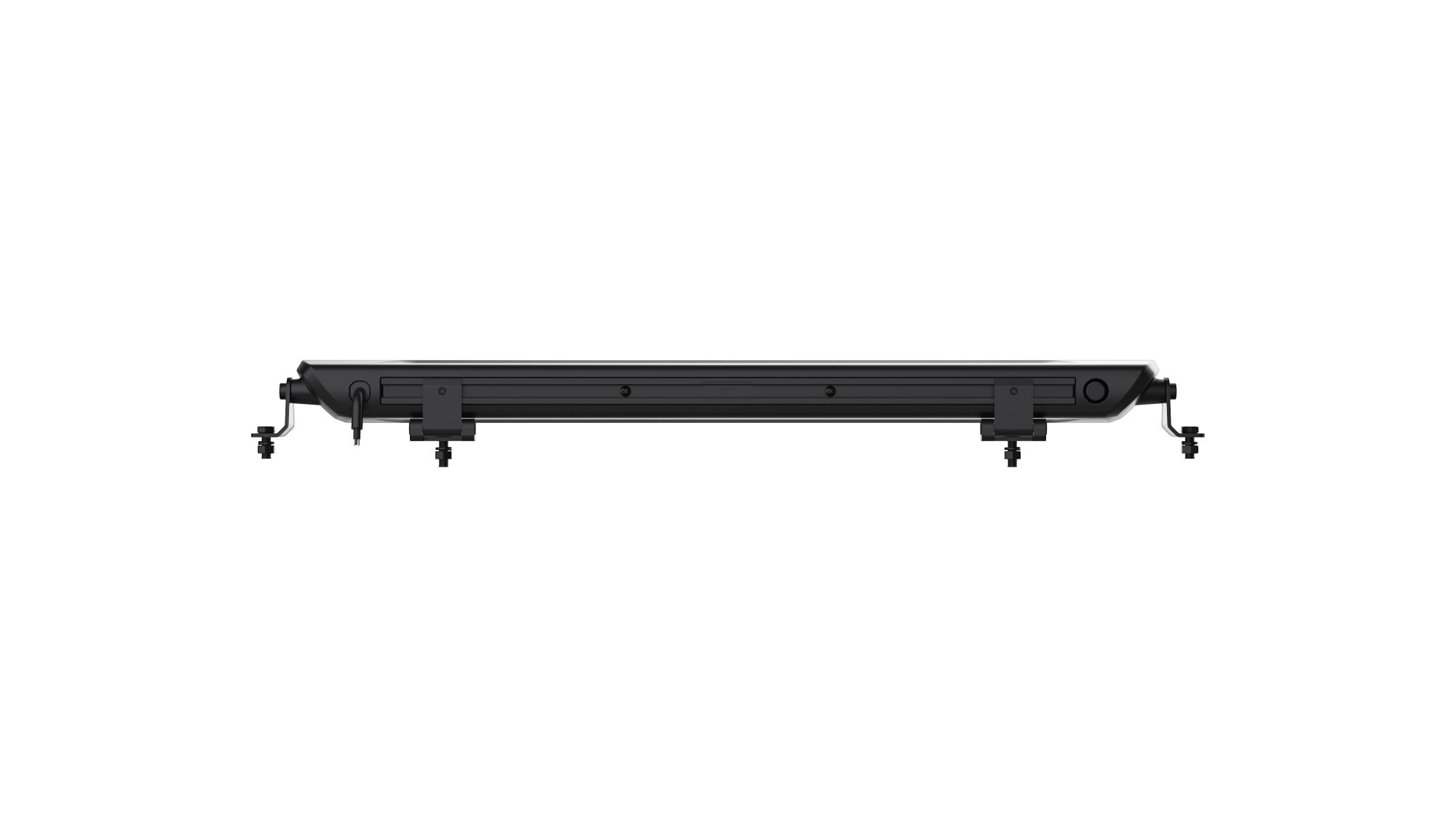

About:
This LED bar from the OZZ XB series is designed for applications where functional lighting and durability are required. With a Driving Beam light image and dual light colour(amber and white), this model provides effective road lighting under changing conditions. The LED bar operates within a voltage range of 10-32 V and delivers a light output of 18,000 lm at a power consumption of 101-150 W.
The housing is made of robust aluminium and features an impact-resistant polycarbonate lens. Thanks to its IP69K classification, this LED bar is fully protected against dust and high-pressure cleaning. Dimensions are 686 x 80.2 x 50 mm and mounting is via surface-mounting. Connection is via a 4-PIN Deutsch connector with a cable length of 270 cm. The certifications CE, ECE-R10, ECE-R148 and ECE-R149 confirm its suitability for professional use.
– Stylish LED bar with distinctive design
– Supplied with side and rear mounting brackets as standard
– Unique dynamic start-up, a feast for the eyes
– Fully certified and high light output for excellent visibility
Video:
Catalogue number 310Z
Cable / wires 22 cm LGY-S 0.75 mm²
Light source LED
Mounting side UNIVERSAL
Operating voltage 12 V – 24 V
Position / front clearance
Position / side clearance •
Position / rear clearance
Reflective device •
Pieces in the box 100
Catalogue number 307Z
Cable / wires 22 cm LGY-S 0.75 mm²
Light source LED
Mounting side UNIVERSAL
Operating voltage 12 V – 24 V
Position / front clearance
Position / side clearance
Position / rear clearance •
Reflective device •
Catalogue number 1599 NN
Cable / wires 24 cm LGY-5 2×0.75 mm²
Light source LED
Mounting side UNIVERSAL
Operating voltage 12 V – 24 V
Position / front clearance •
Position / side clearance •
Position / rear clearance •
Reflective device •
Side indicator
Pieces in the box 80
Catalogue number 124
Cable / wires 22 cm LGY-S 0.75 mm²
Light source LED
Mounting side UNIVERSAL
Operating voltage 12 V – 24 V
Position / front clearance
Position / side clearance
Position / rear clearance •
Reflective device •
Side indicator
Pieces in the box 100
