Description
Details

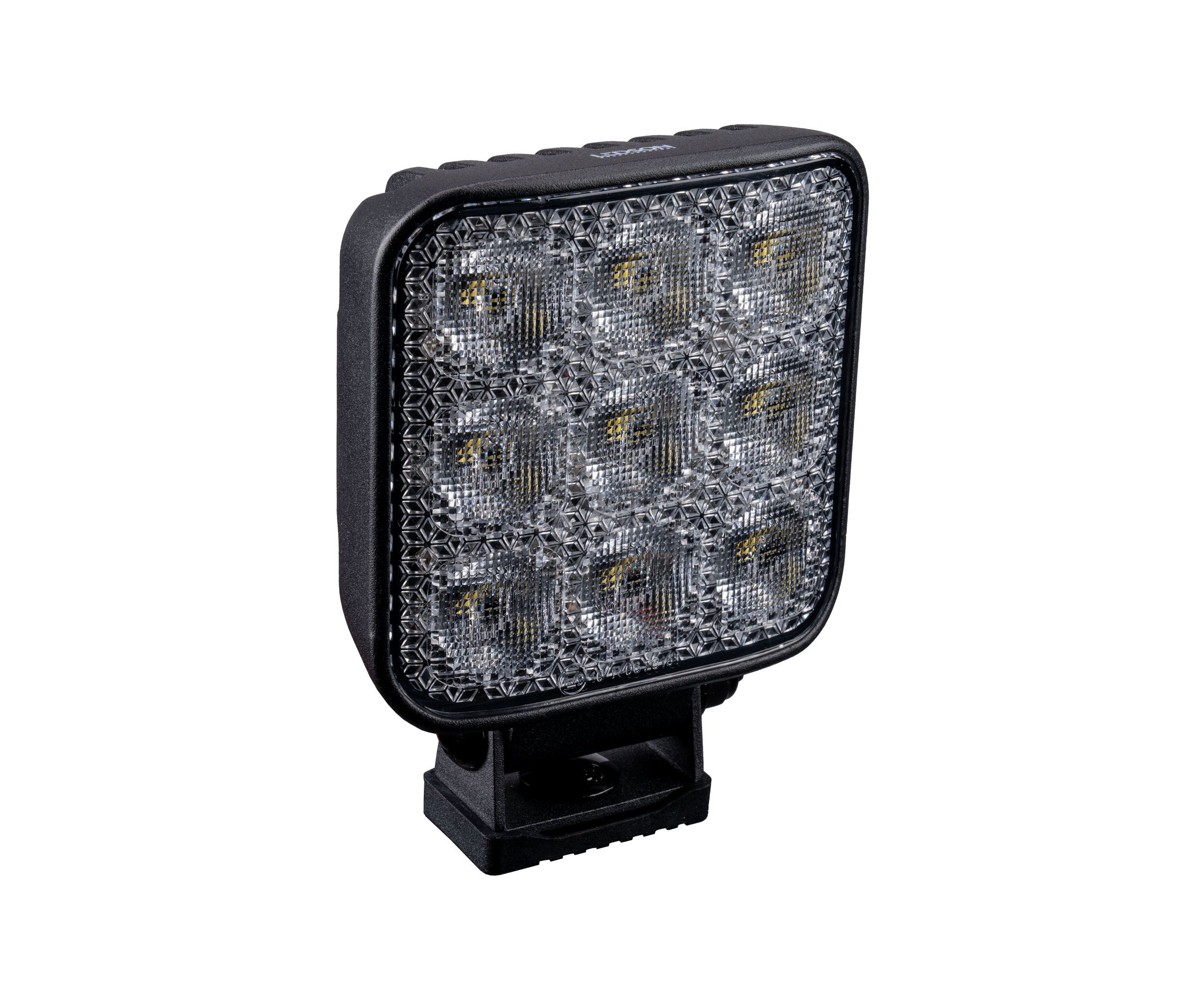

Lumina SQ9 is the ideal work light for those seeking a blend of sleek design and powerful performance in a compact form. This work light delivers an impressive 3426 actual lumens with a 5000K color temperature, ensuring bright and clear illumination. With a 1 lux brightness at 66 meters and a wide 90° beam angle, Lumina SQ9 provides extensive coverage, lighting up a larger work area with sufficient intensity to ensure safe and efficient task completion.
Lumina SQ9 is also ADR approved and R148 (approved as reverse light).
Specifications:
- Range: 47 meters (1 lux), 94 meters (0.25 lux)
- 90° flood beam with wide coverage
- Lumen: 2929 (theoretical), 1758 (actual)
- Neutral white light (5000K)
- IP67, IP69K (water and dust resistant)
- CISPR25 class 3, ECE R10 (EMC compliant), R148, ADR
- Temperature control system
- Voltage: 10-30V
- 1.78A at 12V and 0.84A at 24V
- 12 x Osram LEDs (total 18W)
- Aluminum housing and polycarbonate lens
- Stainless steel mounting bracket included

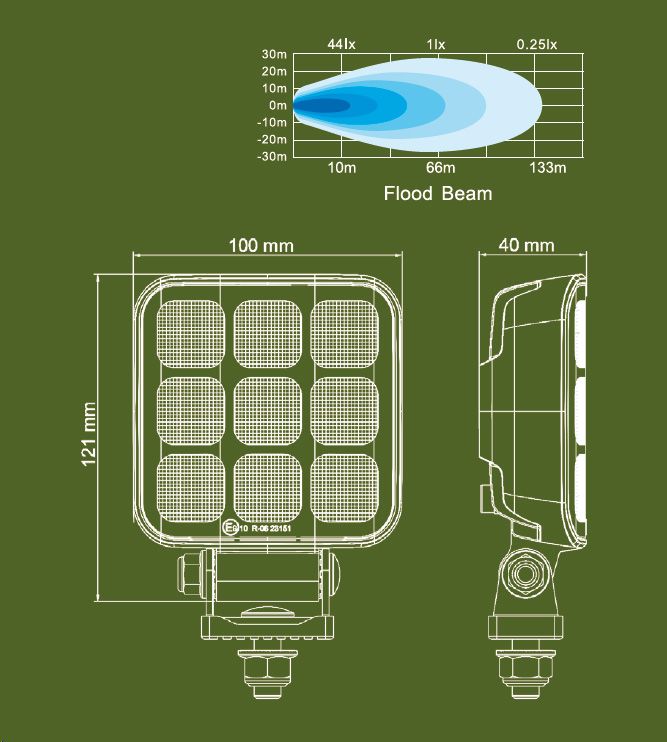

Dimensions:
- Width: 100 mm
- Height: 121 mm
- Depth: 40 mm
- 50 cm cable with 2-pole DT connector
Note: The DT connector should not be cut, as this increases the risk of moisture damage and voids the warranty. A DT connector (male) with a splice is included with the product.
