LED ECE-R23 Reversing lights | 2600 lumen | 24 watts | IP69K | Deutsch | WR-2426

€1.00

Whole series Optimus serie
Dimensions 150 x 50 x 48mm
Lumen 2600 lumens
Warranties 2 years
Brand TRALERT®

Description

Details
SKU WR-2426
Voltage 9–36V
Certification CE, CISPR25 Class 5, ECE-R10, ECE-R23
Warranty 2 years
Brand TRALERT®
Suitable for 4×4, Trailer, Commercial vehicles, Excavator, Tractor, Trucks

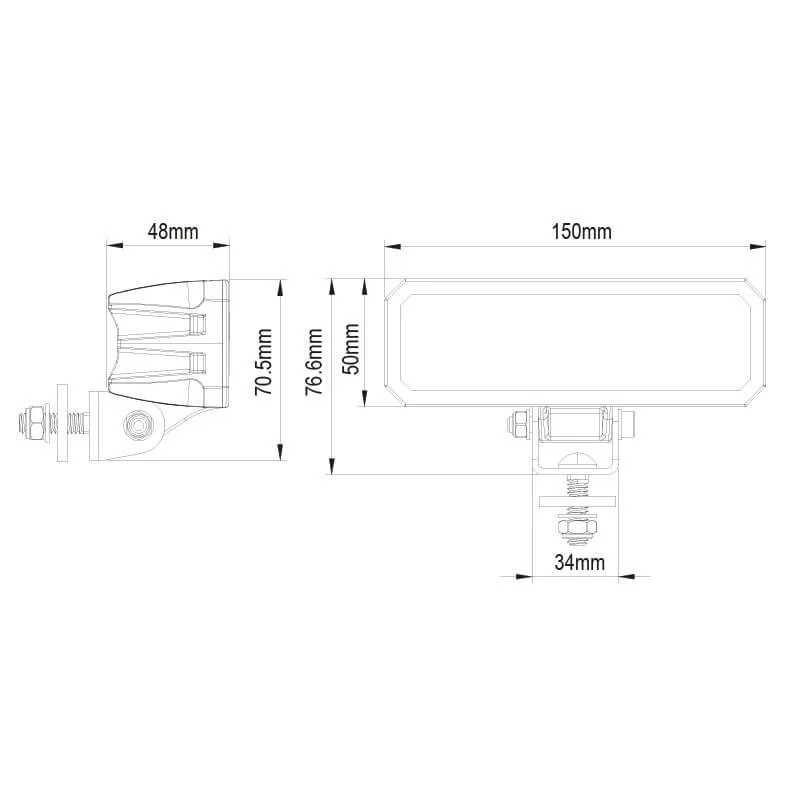

Dimensions 150 × 50 × 48 mm
Shape Rectangular
Light image Reversing lights, Flood beam
Lumen 2600 lumens

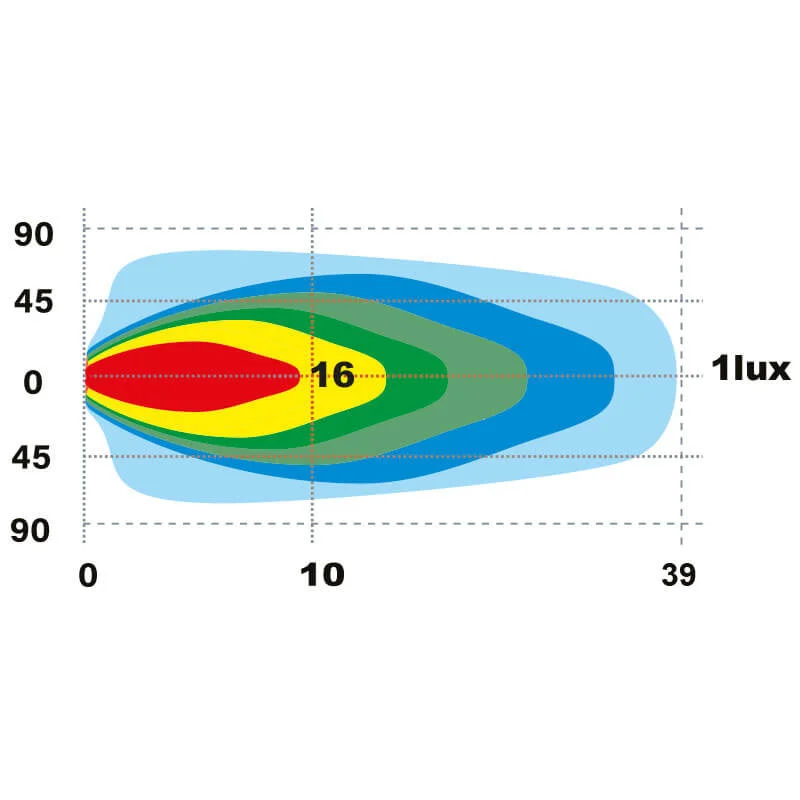

Light range 16 lux @ 10m / 1.00 lux @ 39m
Number of LEDs 8 × 3W ETI LEDs
Housing material Aluminium
Housing colour Black
Lens material Polycarbonate
Lens colour Transparent
Connectors 2-PIN Deutsch connector
Cable length 40 cm cable
Wattage 24 Watt
Protection class IP69K
Mounting Surface mounting

About:

The TRALERT® WR-2426 from the Optimus serie is a compact LED work light designed for applications where a wide light image or reversing lights are required. Thanks to its voltage range of 9-36 V, this work light is suitable for both light and heavy vehicles within the industrial and agricultural sectors. The aluminium housing and polycarbonate lens guarantee mechanical resistance during intensive use.

With a light output of 2,600 lm and a consumption of 25 W, this LED work light offers efficient lighting. The hermetically sealed construction (IP69K) protects against dust, water and high-pressure cleaning. Certifications such as CE, ECE-R10, ECE-R23 and CISPR25 Class 5 underline the electromagnetic compatibility and functional reliability of this light. Connection is via a 2-PIN’s Deutsch connector with a cable length of 40 cm.

Plus points of this series:

– Heavy-duty housing
– Special Mini fish-eye LED technology for optimum light distribution
– IP69K waterproof, suitable for all weather conditions
– Full certification, within the series also ADR available
