LED driving lights dark-look/black 12-24v / 14,000lm WD-13013

€1.00

Whole series Phantom serie
Dimensions 171 x 159 x 73mm
Lumen 12,000 lumens
Warranties 2 years
Brand TRALERT®

Description

Details
SKU WD-13013
Voltage 9–36V
Certification CE, ECE-R10, ECE-R148, ECE-R149
Warranty 2 years
Brand TRALERT®
Suitable for 4×4, Commercial vehicles, Truck

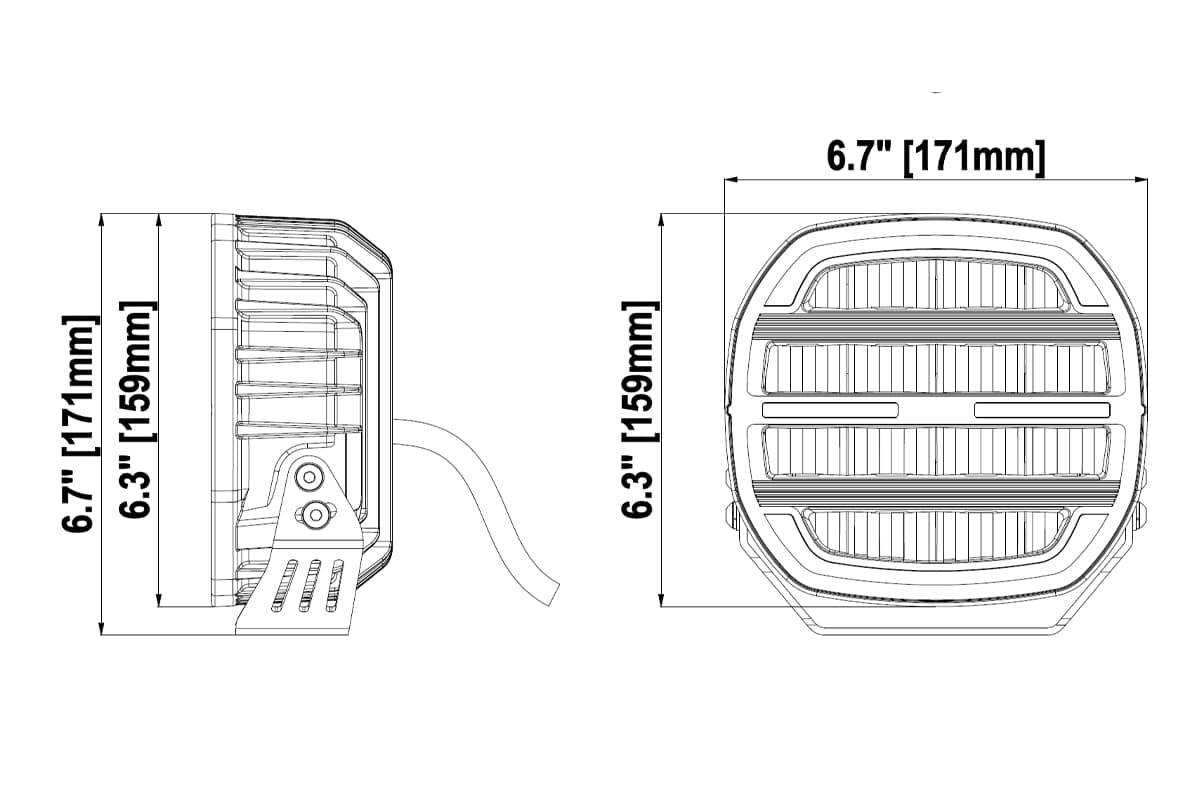

Dimensions 171 × 159 × 73 mm
Shape Round
Light image Driving Beam
Light colour Amber, White
Lumen 12,000 lumens
Position lights Yes
White position lights Yes
Amber position lights Yes
Reference number 45

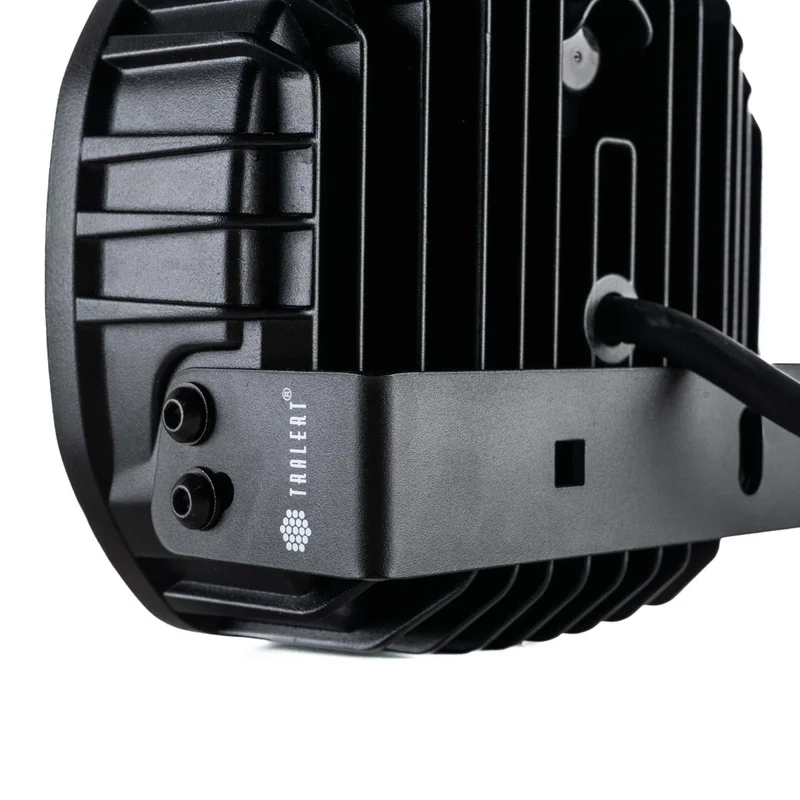

Housing material Aluminium
Housing colour Black
Lens material Polycarbonate
Lens colour Transparent

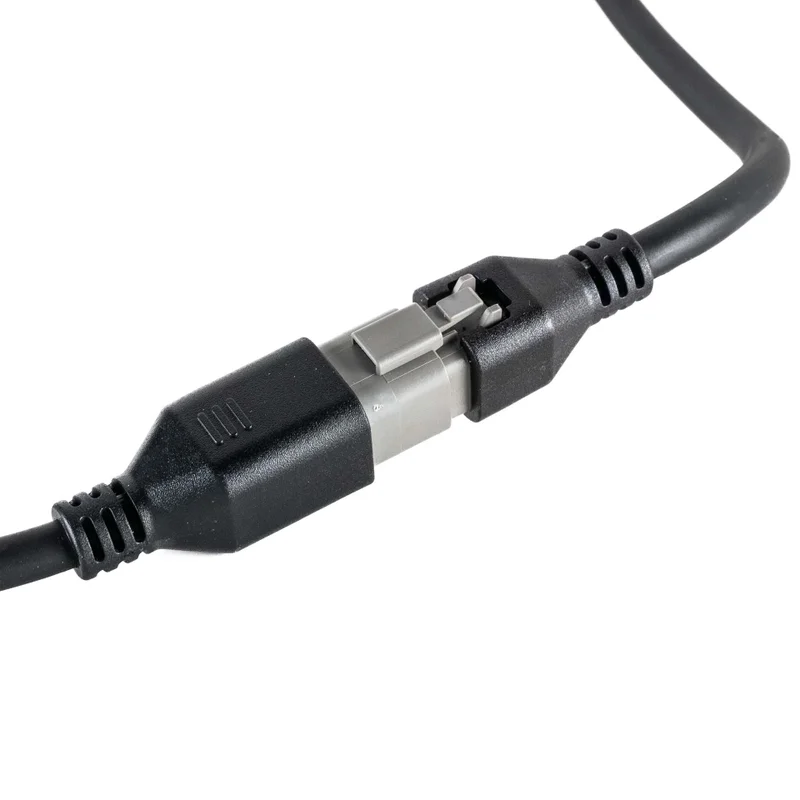

Connectors 6-PIN Deutsch connector
Cable length 300 cm cable
Wattage 140 Watt
Protection class IP68
Power consumption 12V: 11.3A / 24V: 5.44A

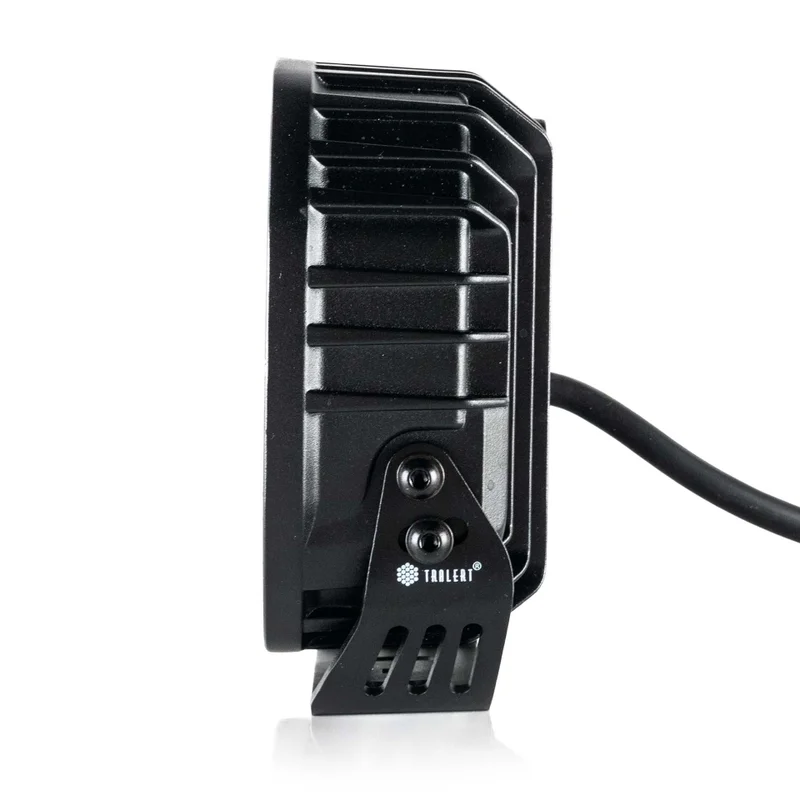

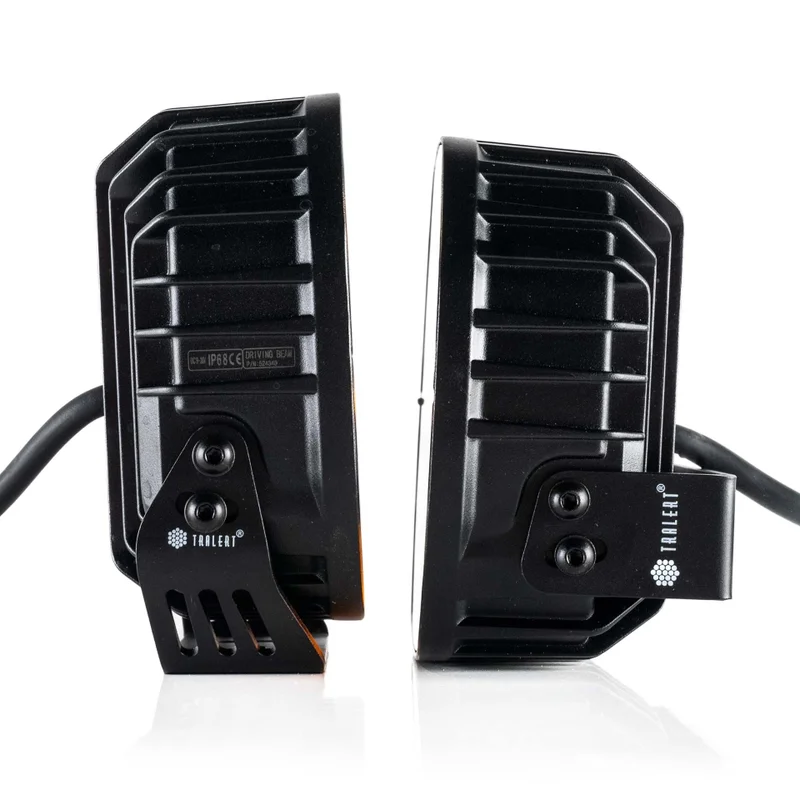

Mounting Surface mounting
Warning light functions No
Alternative for Ledson Epix 7+, OZZ XR2 P7
Driving lights functions Amber position lights, White position lights

About:

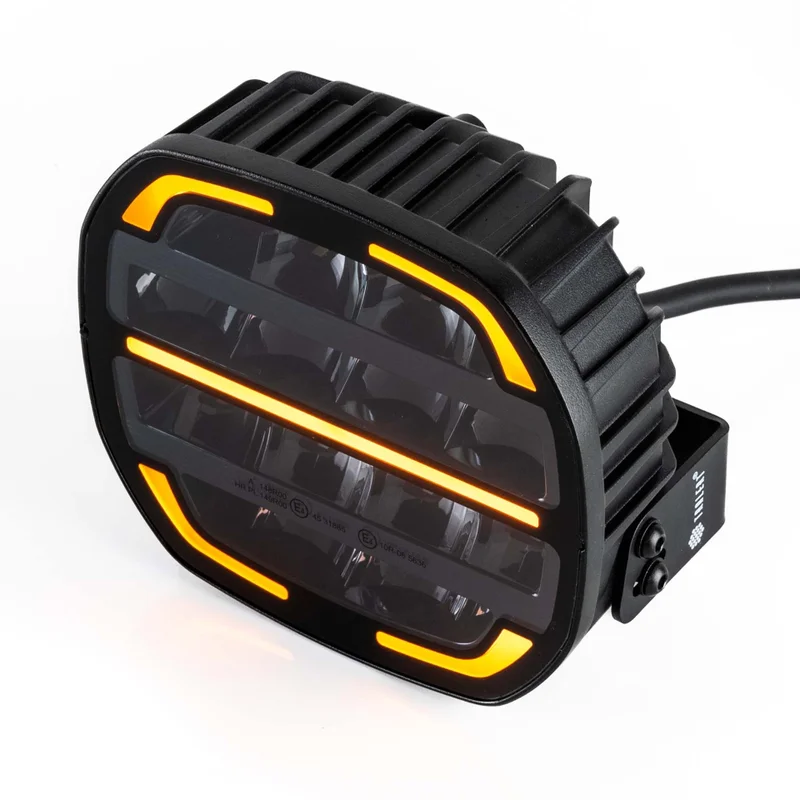

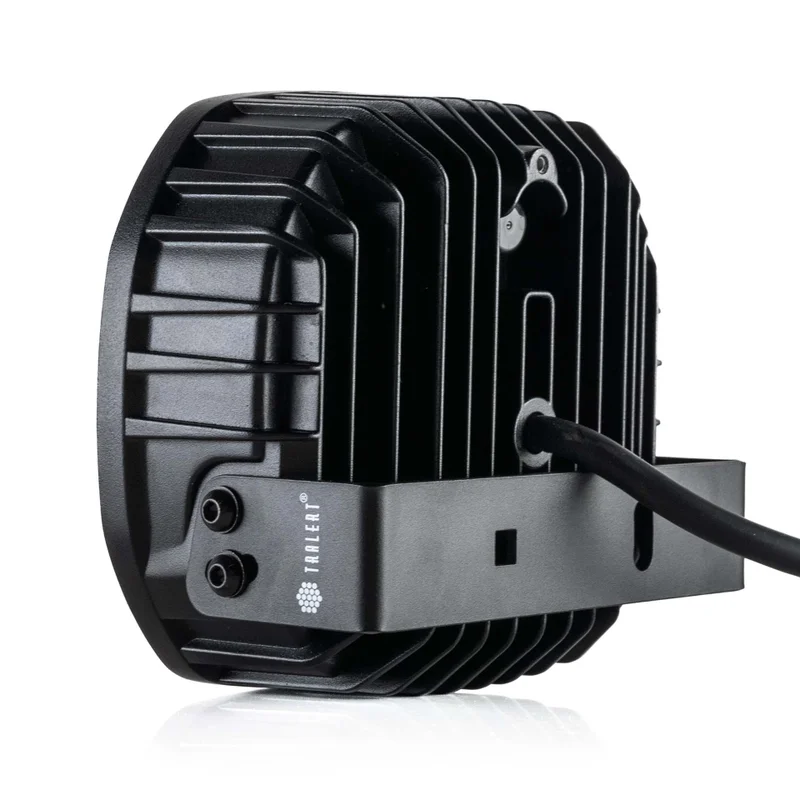

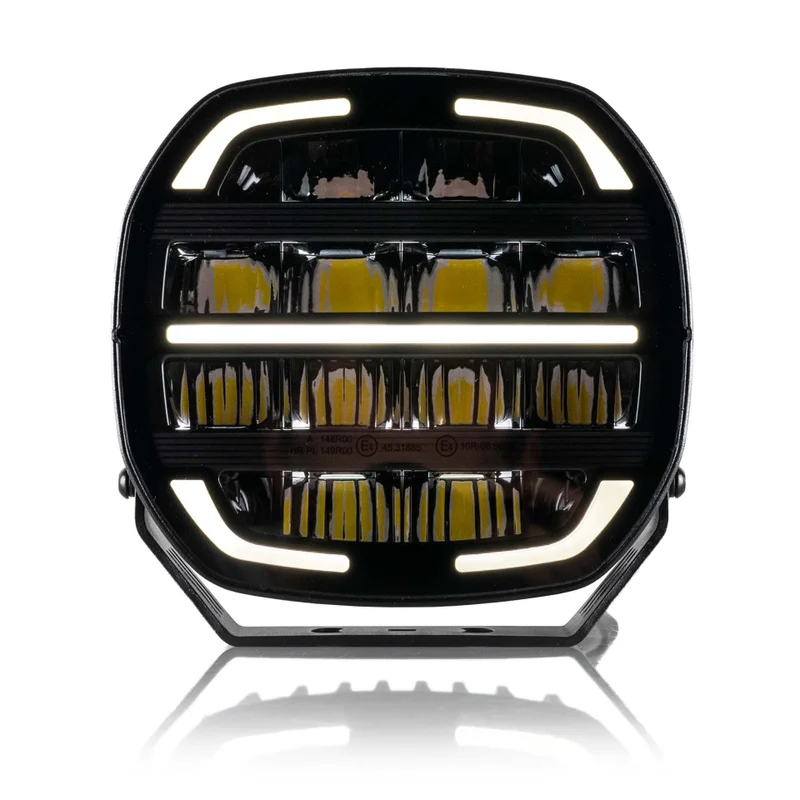

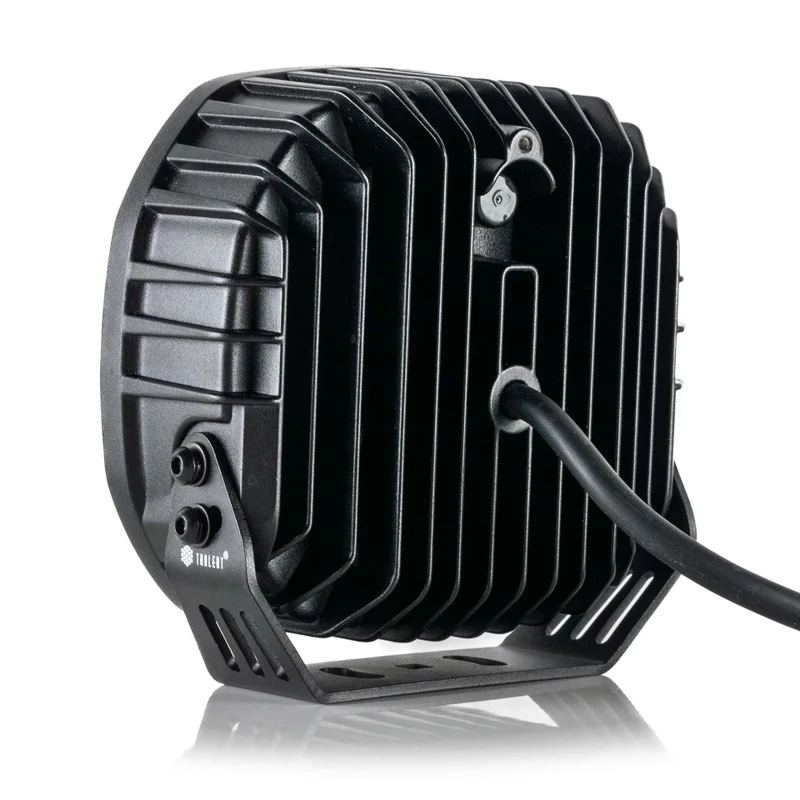

The TRALERT® Phantom serie LED driving lights are designed for applications where high light output and robustness are required. This LED driving light with Driving Beam light image is suitable for use on vehicles in the voltage range 9-36 V and delivers up to 12,000 lm. With a housing made of aluminium and a polycarbonate lens, this model can withstand harsh conditions, while its IP68 rating guarantees optimal protection against dust and water. The standard 6-PIN Deutsch connector and 300 cm cable simplify installation.

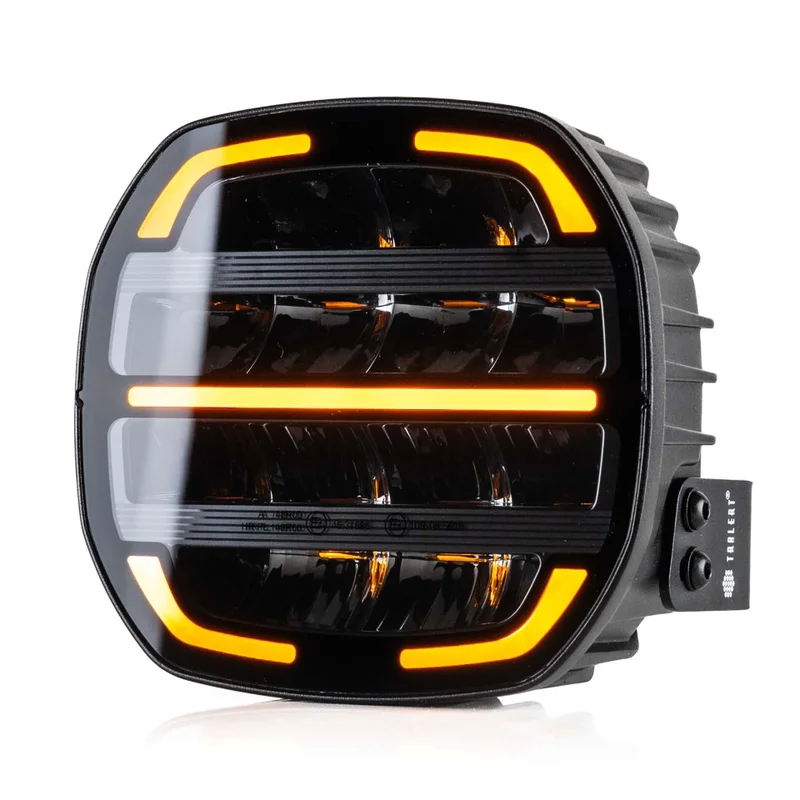

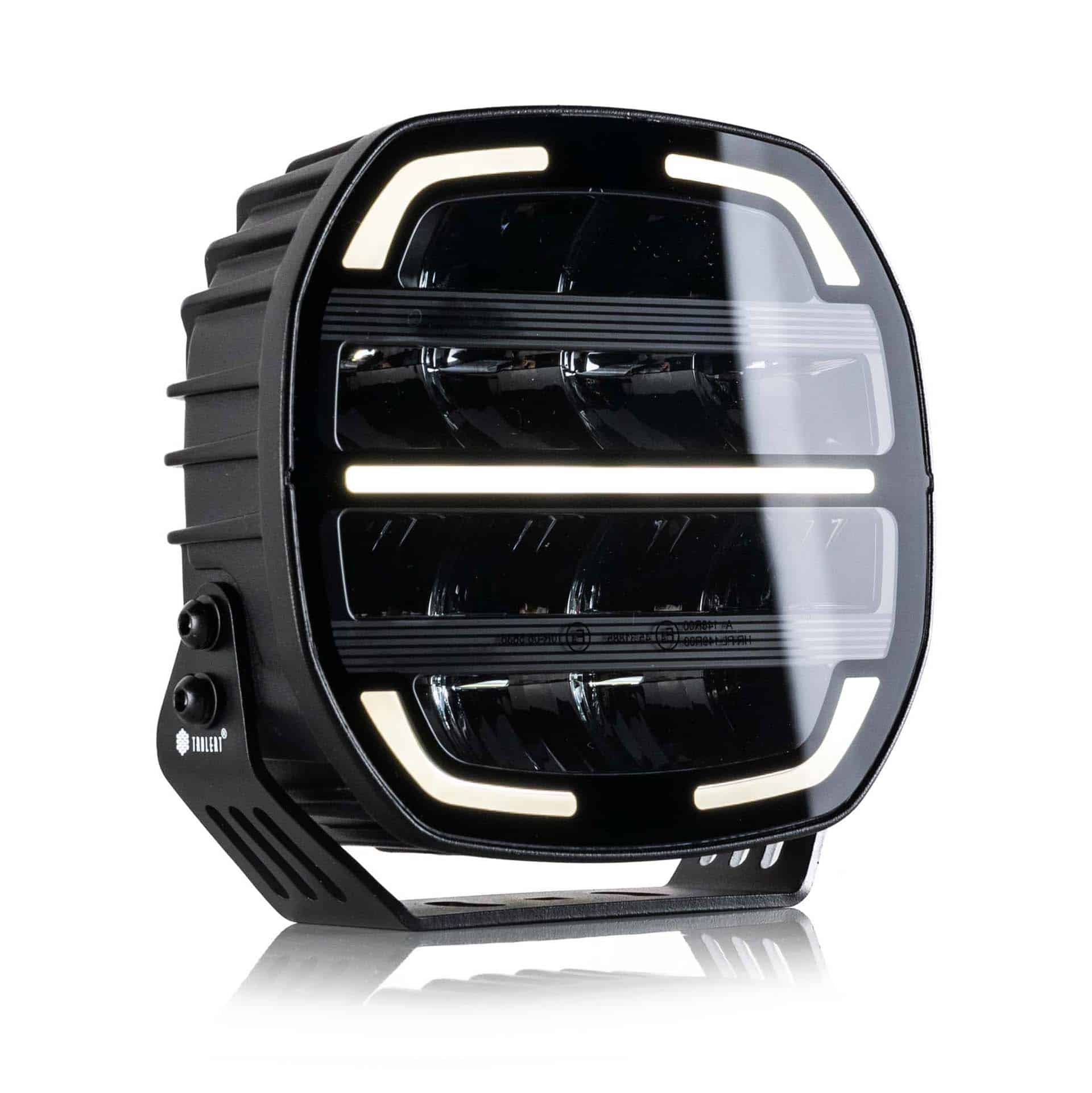

The driving lights have dimensions of 171x159x73 mm and are attached via surface mounting. Thanks to the white and amber coloured position lights with duo-color function, the lighting visually matches other contour lights on the vehicle. This LED driving light meets the requirements of CE, ECE-R10, ECE-R148 and ECE-R149.

Plus points of this series:

– LED driving lights with unique design
– Equipped with duo-color position lights, matching the rest of your contour lights
– Powerful light output of up to 16,000 lumen
– Fully certified and made of high-quality materials
