LED bar | Shadow 2 | amber-white | 9500 lumen | 9-36v | LD3-10095

€1.00

Whole series The Shadow serie
Dimensions 512 x 58 x 99mm
Lumen 9500 lumens
Warranties 2 years
Brand TRALERT®

Description

Details
SKU LD3-10095
Voltage 9–36V
Certification CE, ECE-R10, ECE-R112, ECE-R7
Warranty 2 years
Brand TRALERT®
Suitable for 4×4, Commercial vehicles, Excavator, Tractor, Trucks
Dimensions 512 × 58 × 99 mm
Shape Lightbar
Light image Driving Beam
Light colour White
Lumen 9500 lumens

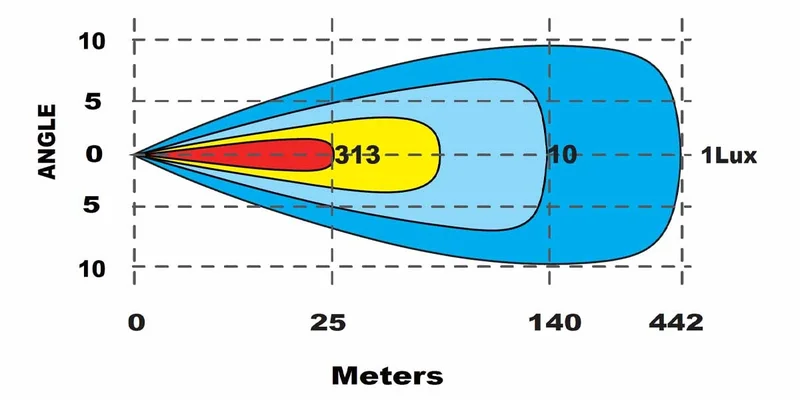

Light range 313 lux @ 25m / 1 lux @ 442m
Number of LEDs 10 × 10 Watt LP LEDs
Position lights Yes
White position lights Yes
Amber position lights Yes
Reference number 40
Housing material Aluminium
Housing colour Black
Lens material Polycarbonate
Lens colour Transparent
Connectors 4-PIN Deutsch connector
Cable length 40 cm cable
Wattage 100 Watt
Protection class IP69K
Mounting bracket Side & rear mounting
Mounting Surface mounting
Warning light functions No
Driving lights functions Amber position lights, White position lights

The TRALERT® LED bar from The Shadow serie was developed for applications requiring a compact, powerful light source. This LED bar with Driving Beam light image provides an effective distribution of white light suitable for a variety of conditions within the voltage range of 9-36 V. The light output is 9,500 lm at a power consumption of 76,100 W, which makes this LED bar deployable for a variety of professional vehicle applications.

With a robust aluminium housing and a polycarbonate lens, this LED bar can withstand harsh conditions. Thanks to the protection rating IP69K, the product is completely dust-proof and resistant to high-pressure cleaning. The LED bar complies with CE, ECE-R10, ECE-R112 and ECE-R7 approvals. Connection is via a 4-PIN Deutsch connector with 40 cm connecting cable. The dimensions of the luminaire are 512x58x99 mm. Mounting is possible via supplied brackets for bottom and side mounting.

Plus points of this series:

– Stylish duo-color position lights
– High light output
– Two mounting brackets included as standard for under-mounting and side-mounting

Video:
