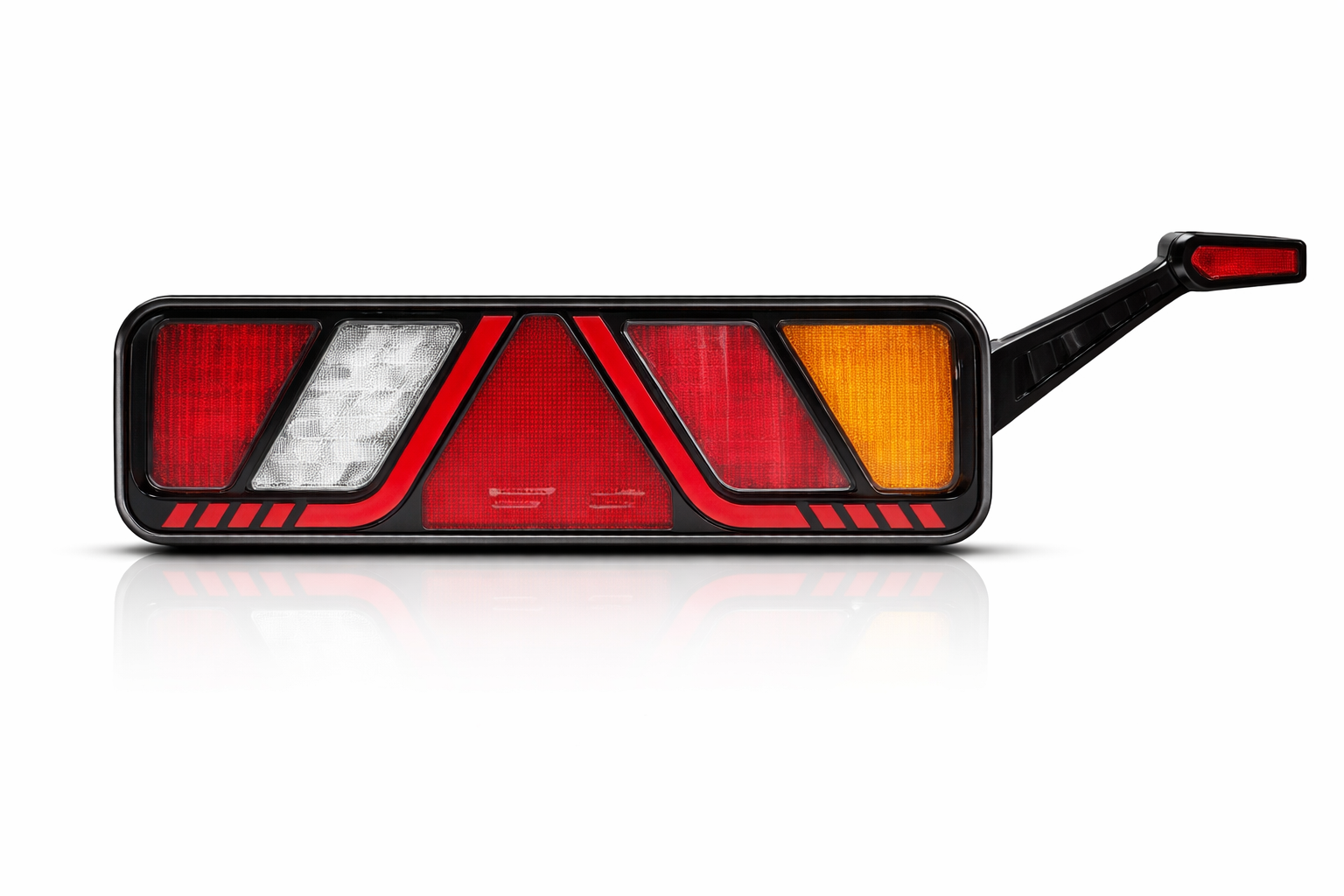

FT-700-146P LED

1.00

The largest all-LED rear light on the automotive market, the FT-700 LED is available in two product versions:
• with a flush-mounted clearance light – FT-700-066 LED;
• with a corner clearance light – FT-700-146 LED.
It is intended for all types of trailers, flat-beds and semi-trailers with a 24 V electrical system. The FT-700 LED lamp stands out with its modern design and great quality.
It has a durable, hermetically designed construction that ensures its perfect water-tightness and resistance to all weather conditions.
Other features:
• Pressure bleeding valve for optimum performance in all
weather conditions;
• Neck bolts for improved durability of the light enclosure;
• Large lamp modules provided with high-performance LEDs, providing a high quality of luminous output;
• Integrated LED light control system, which is compatible with vehicle electronic onboard systems to prevent onboard malfunctions and DTCs;
• Universal-fit spacing of mounting bolts – 152 mm – for easy and quick installation of the product;
• Certified EMC.

Description

Lamp functions Current consumption (peak value) 24V Rated power 24V
rear running light 0,2A 5W
STOP light 0,8A 20W
indicator 0,85A 21W
reversing light 0,25A 6,5W
fog light 0,2A 5W

Technical Drawing
