Description
| Lamp functions | Current consumption (peak value) 12V | Current consumption (peak value) 24V | Rated power 12V | Rated power 24V |
|---|---|---|---|---|
| front position light | 0.02A | 0.02A | 0.25W | 0.5W |
| front indicator light | 0.15A | 0.15A | 1.8W | 3.6W |

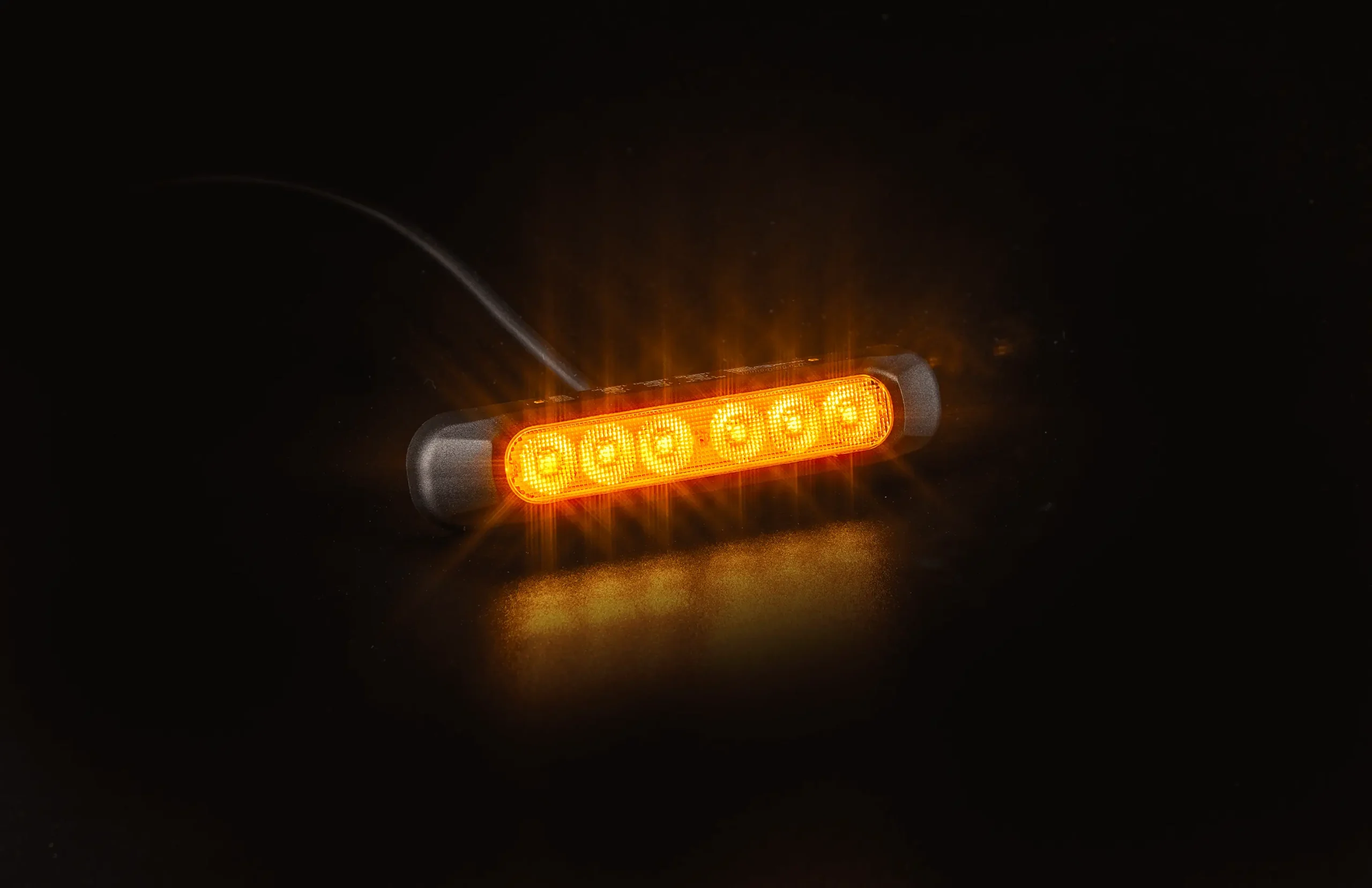

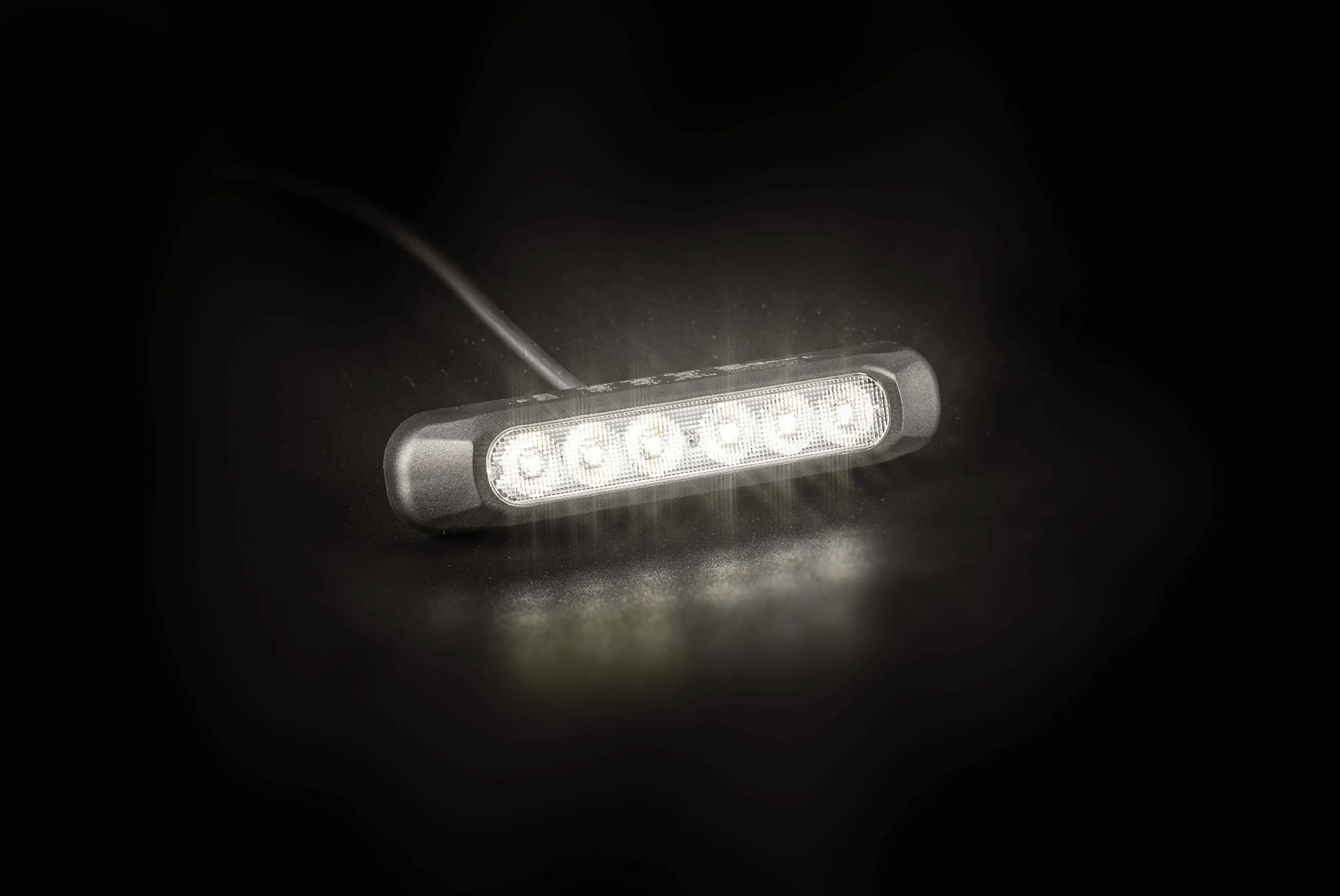

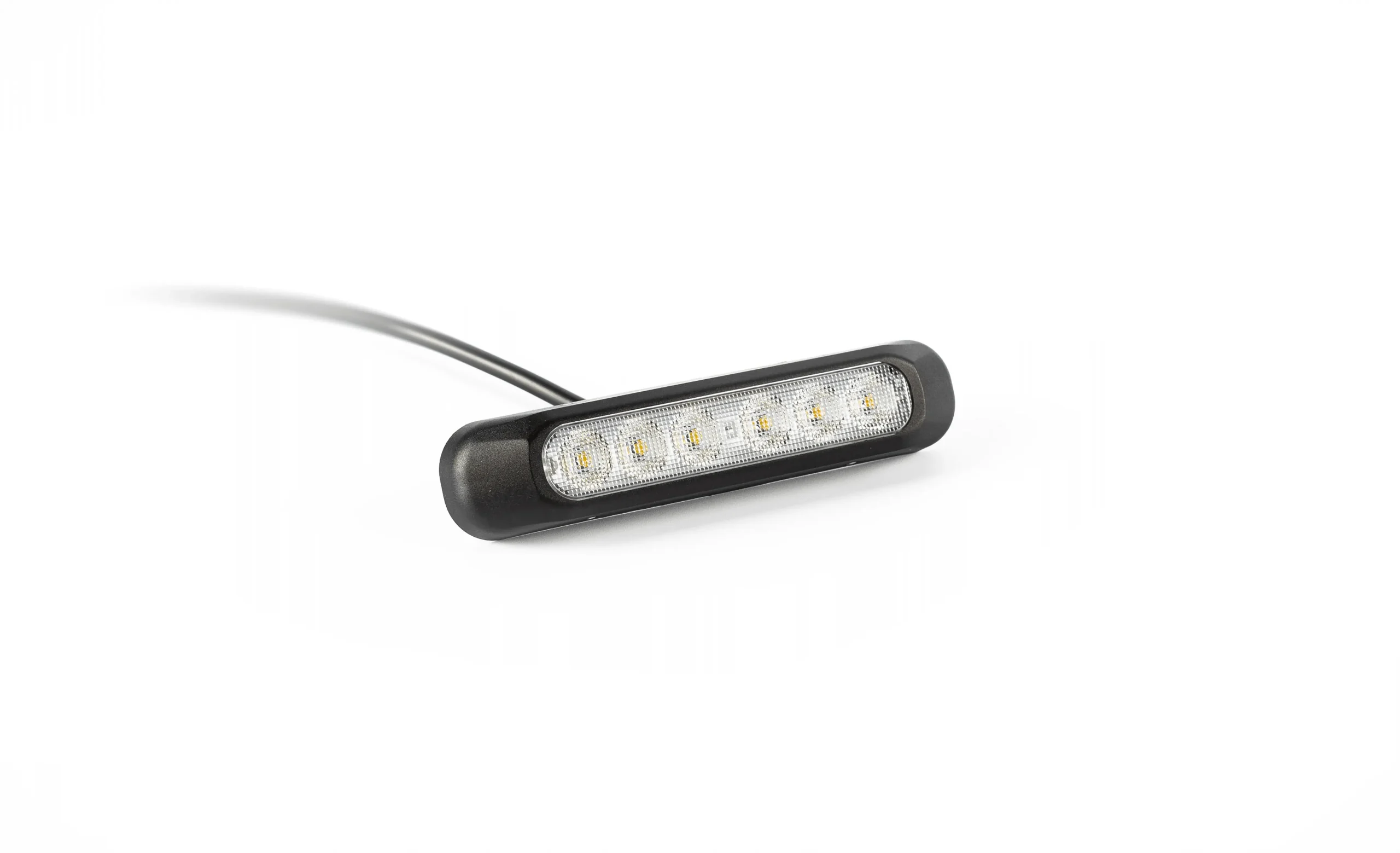

FT-331 LED
€1.00
- 2-functional universal LED front lamp
- european E9 homologation
- ElectroMagnetic Compatibility – EMC certificate
- shock-resistance – PC lampshade
- reverse polarity protection system
Share:
Related products
-
Rear assembly end-outline lamp 103p
€1.00Rear assembly end-outline lamp 103p
catalogue number: 103P
cable / wires: 22cm LgY-S 0.75mm²
light source: LED
mounting side: UNIVERSAL
operating voltage: 12V–24V
position / front clearance: (blank)
position / side clearance: (blank)
position / rear clearance: ●
reflective device: ●
pieces in the box: 100€1.00 -
Rear position lamp 709
€1.00Rear position lamp 709
Catalogue number 709
Cable / wires 23 cm LGY-S 0,75 mm²
Light source LED
Mounting side UNIVERSAL
Operating voltage 12 V – 24 V
Position / front clearance
Position / side clearance
Position / rear clearance •
Pieces in the box 100€1.00 -
Front end-outline lamp 303Z
€1.00Front end-outline lamp 303Z
Catalogue number 303Z
Cable / wires 22 cm LGY-S 0.75 mm²
Light source LED
Mounting side UNIVERSAL
Operating voltage 12 V – 24 V
Position / front clearance •
Position / side clearance •
Position / rear clearance
Reflective device •
Pieces in the box 100€1.00 -
Rear assembly end-outline lamp 224Z
€1.00Rear assembly end-outline lamp 224Z
catalogue number: 224Z
cable / wires: 22 cm LgY-S 0.75 mm²
light source: LED
mounting side: UNIVERSAL
operating voltage: 12V–24V
position / front clearance: –
position / side clearance: –
position / rear clearance: ●
reflective device: ●
pieces in the box: 100€1.00
