€1.00

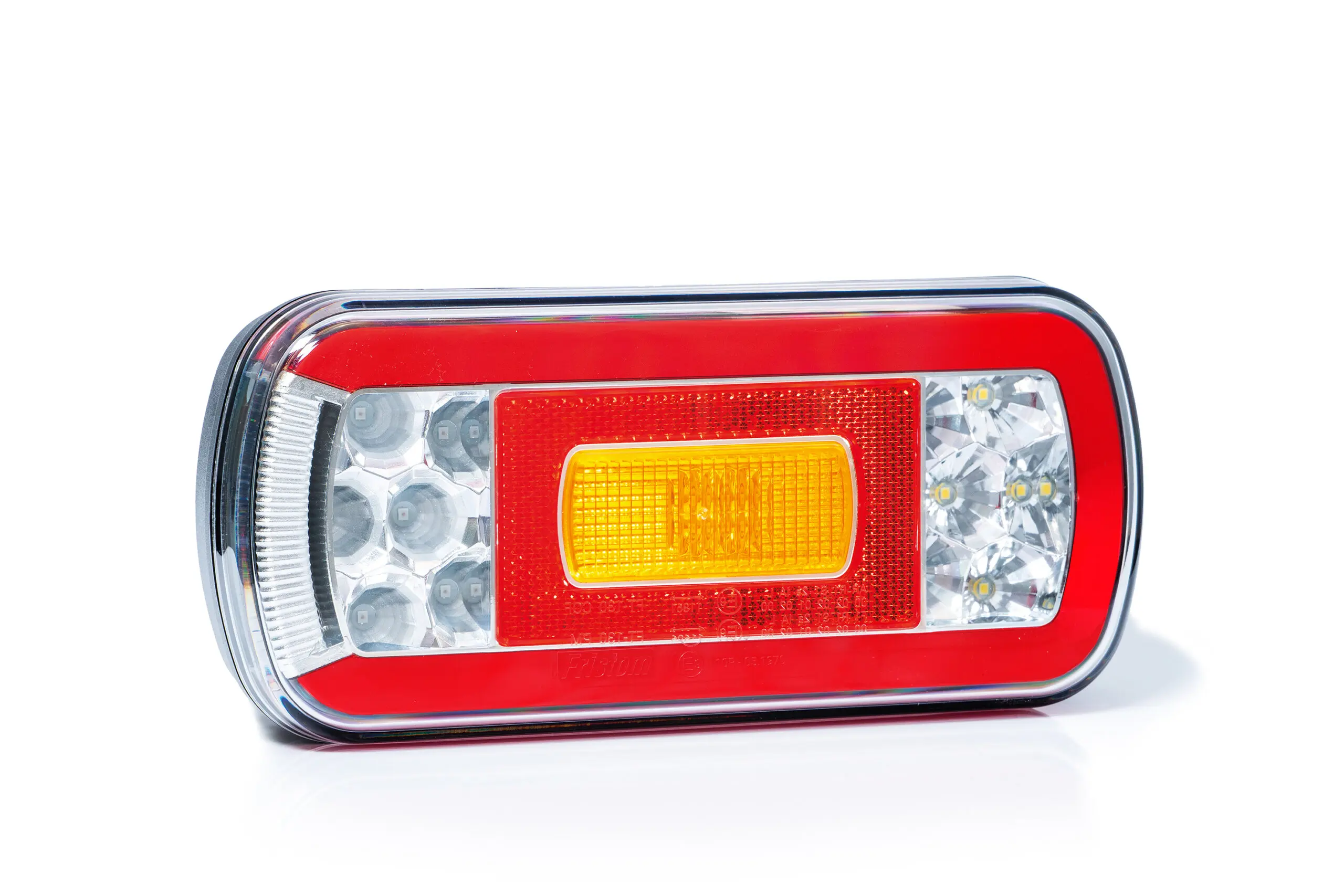

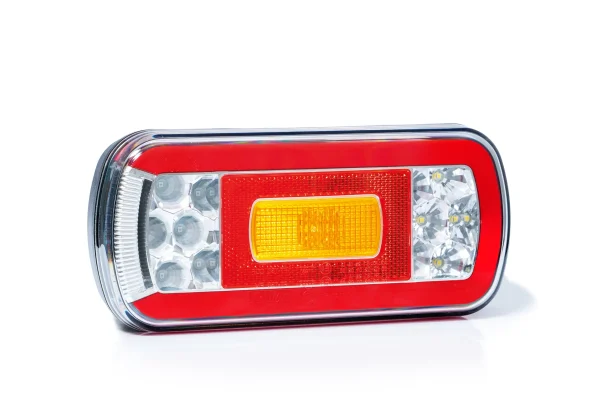

6-functional universal LED rear lamp – low power consumption
– european homologation E9
– ElectroMagnetic Compatibility (EMC) homologation
– shock-resistance – PC lampshade
– reverse polarity protection system
Available in 4 standard product versions:
– FT-130 COF LED – 6-functional LED rear lamp with a reversing light, 1m cable
| Lamp functions | Current consumption (peak value) 12V | Current consumption (peak value) 24V | Rated power 12V | Rated power 24V |
|---|---|---|---|---|
| rear running light + number plate light | 0,25A | 0,21A | 3W | 5W |
| STOP light | 0,08A | 0,08A | 1W | 2W |
| indicator | 0,11A | 0,11A | 1,5W | 3W |
| reversing light | 0,28A | 0,14A | 3,5W | 3,5W |
| fog light | 0,12A | 0,06A | 1,5W | 1,5W |
catalogue number: 224Z
cable / wires: 22 cm LgY-S 0.75 mm²
light source: LED
mounting side: UNIVERSAL
operating voltage: 12V–24V
position / front clearance: –
position / side clearance: –
position / rear clearance: ●
reflective device: ●
pieces in the box: 100
Catalogue number 905
Cable / wires 22 cm LGY-S 0.75 mm²
Light source LED
Mounting side UNIVERSAL
Operating voltage 12 V – 24 V
Position / front clearance
Position / side clearance
Position / rear clearance •
Reflective device •
Pieces in the box 100
catalogue number: 221Z
cable / wires: 21 cm LgY-S 0.75 mm²
light source: LED
mounting side: UNIVERSAL
operating voltage: 12V–24V
position / front clearance: –
position / side clearance: –
position / rear clearance: ●
reflective device: ●
pieces in the box: 100
Catalogue number 127
Cable / wires 22 cm LGY-S 0.75 mm²
Light source LED
Mounting side UNIVERSAL
Operating voltage 12 V – 24 V
Position / front clearance
Position / side clearance
Position / rear clearance •
Amber lens •
Transparent lens •
Pieces in the box 250
