Description
| Lamp functions | Current consumption (peak value) | Rated power | ||
|---|---|---|---|---|
| 12V | 24V | 12V | 24V | |
| position light | 0,08A | 0,08A | 1W | 2W |
| lindicator light | 0,08A | 0,08A | 1W | 2W |

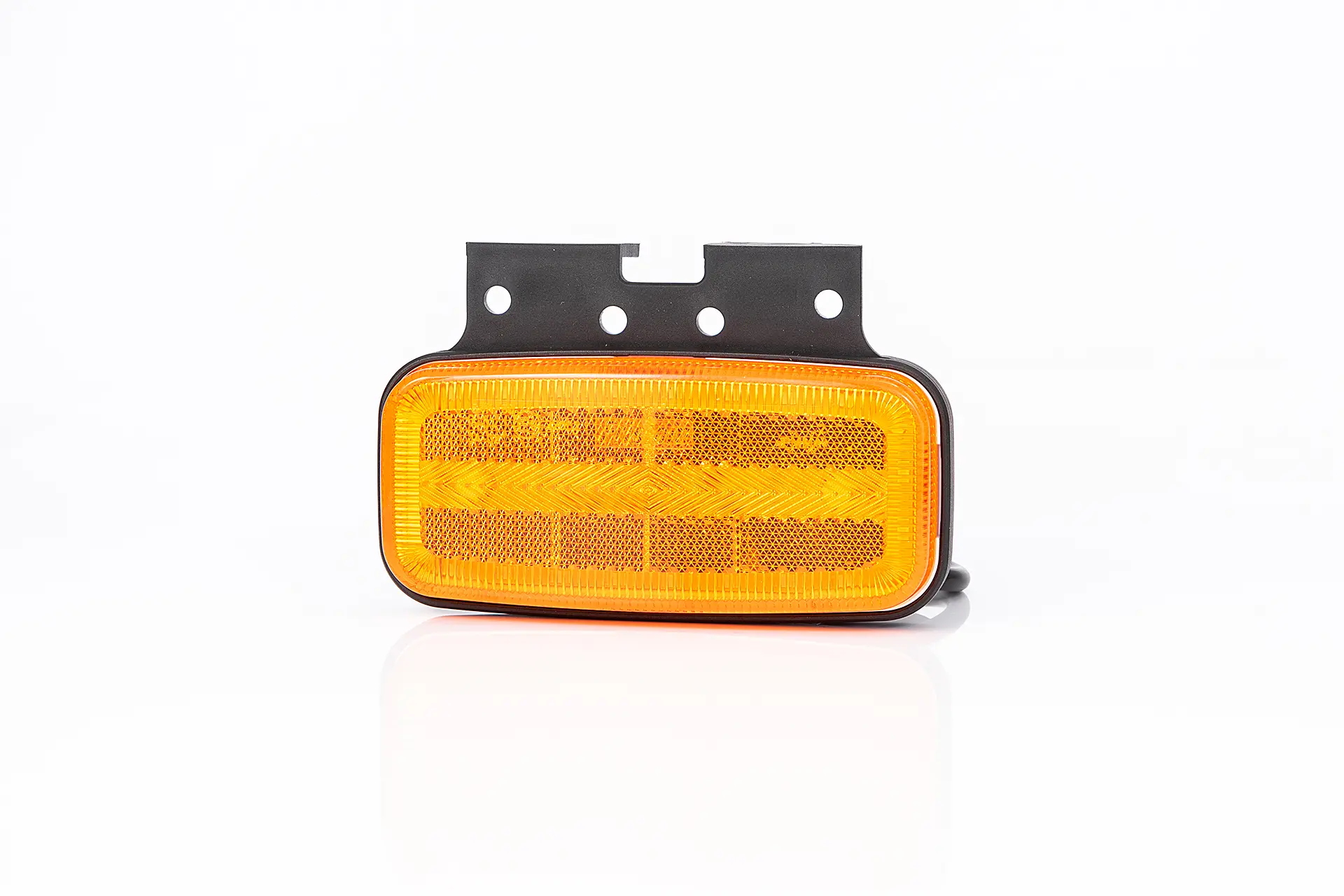

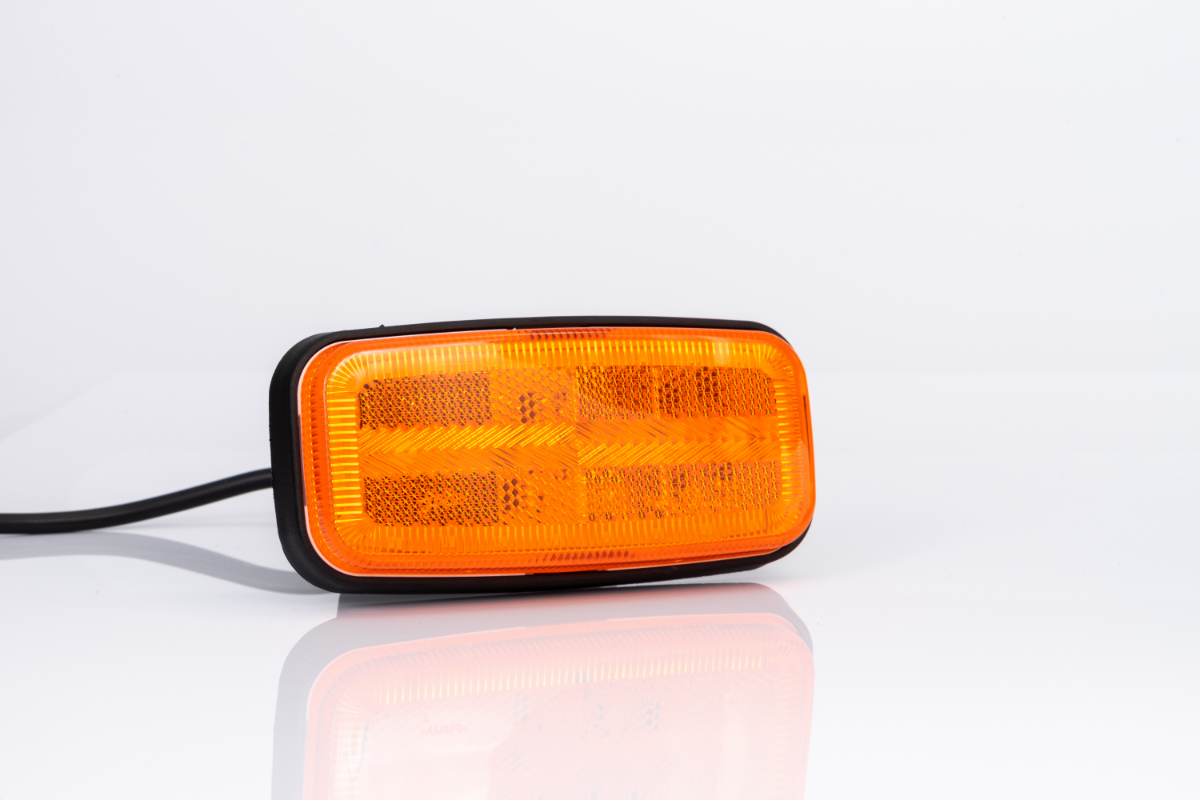

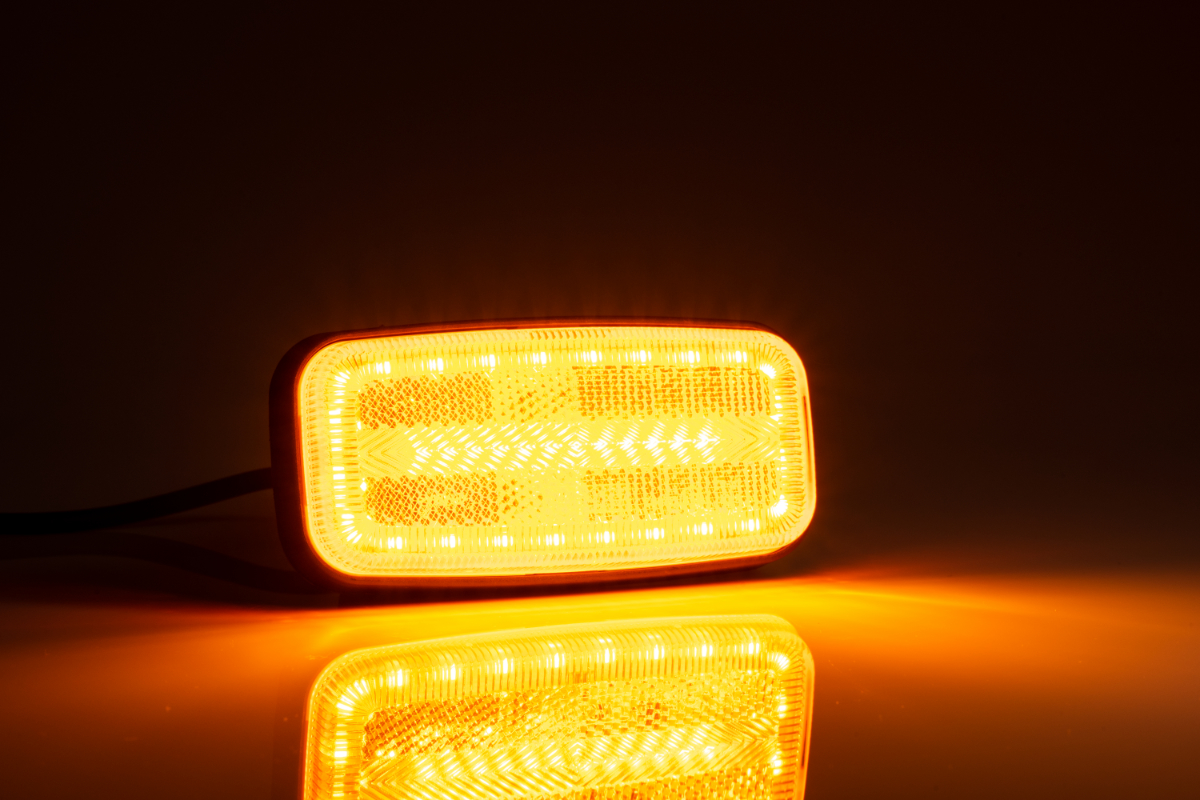

Clearance lamp FT-080 + K LED
€1.00
- 3-functional LED clearance lamp – low power consumption
- european E9 homologation
- shock-resistance – PC lampshade

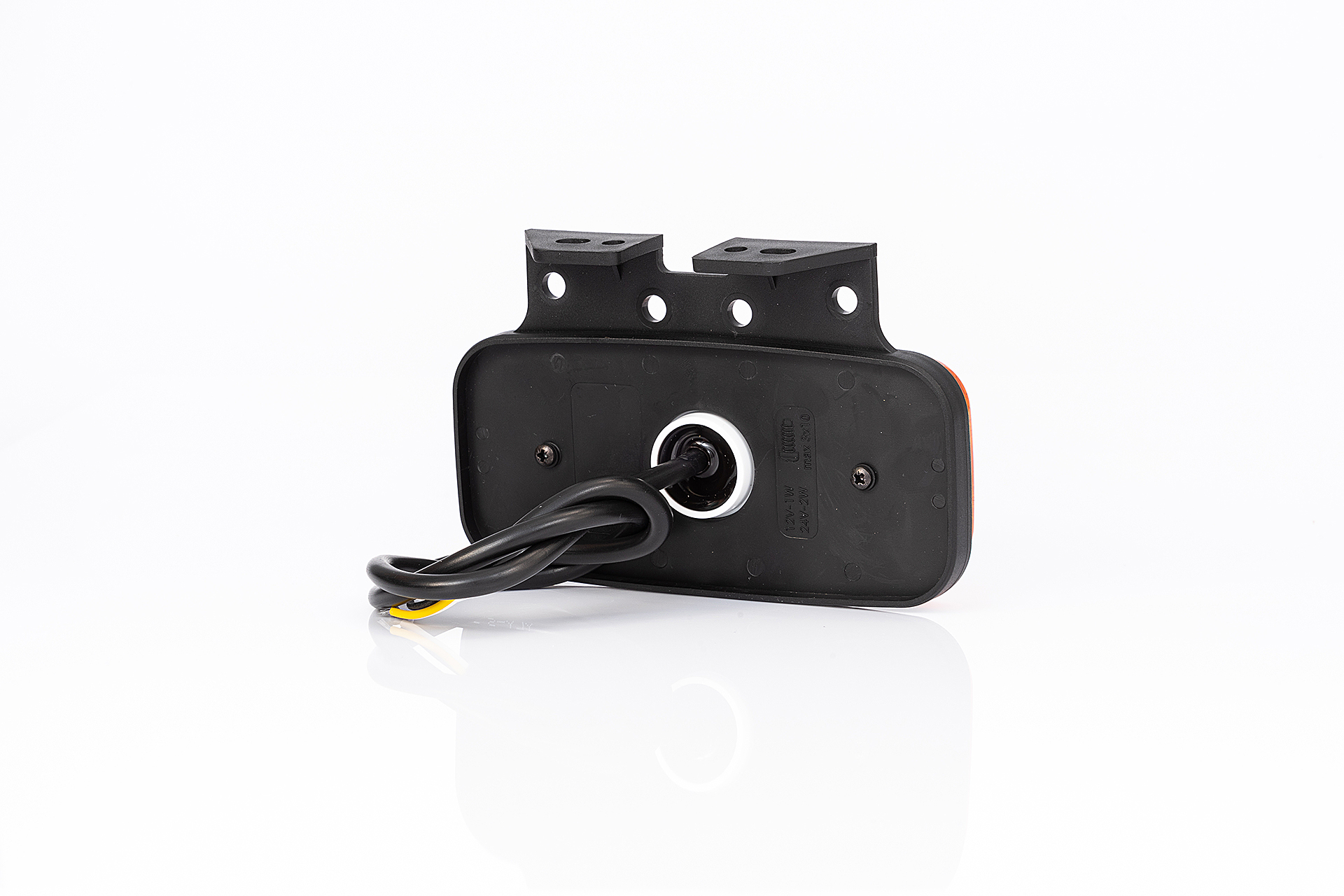

- Three power cords:
- Ground – white, clearance lamp function – black,
- indicator lamp function – yellow
- When the indicator light function works,
the side clearance light function is switched on.
Share:
Additional information
| Colour | Red, Amber, White |
|---|
| Product index | Description | Individual package (pcs) | Individual package (kg) | Carton 59x39x29 (pcs) | Carton 59x39x29 (kg) |
|---|---|---|---|---|---|
| FT–080 + K LED | Clearance lamp with cat. 5 indicator function, 12–36V, yellow with reflector, angle holder and wiring loom. | 10 | 1.06 | 200 | 21.20 |
