Description
| Lamp functions | Current consumption (12V) | Current consumption (24V) | Rated power (12V) | Rated power (24V) |
|---|---|---|---|---|
| Front light, side light | 0.055A | 0.055A | 0.7W | 1.4W |
| Rear light | 0.165A | 0.165A | 2W | 4W |

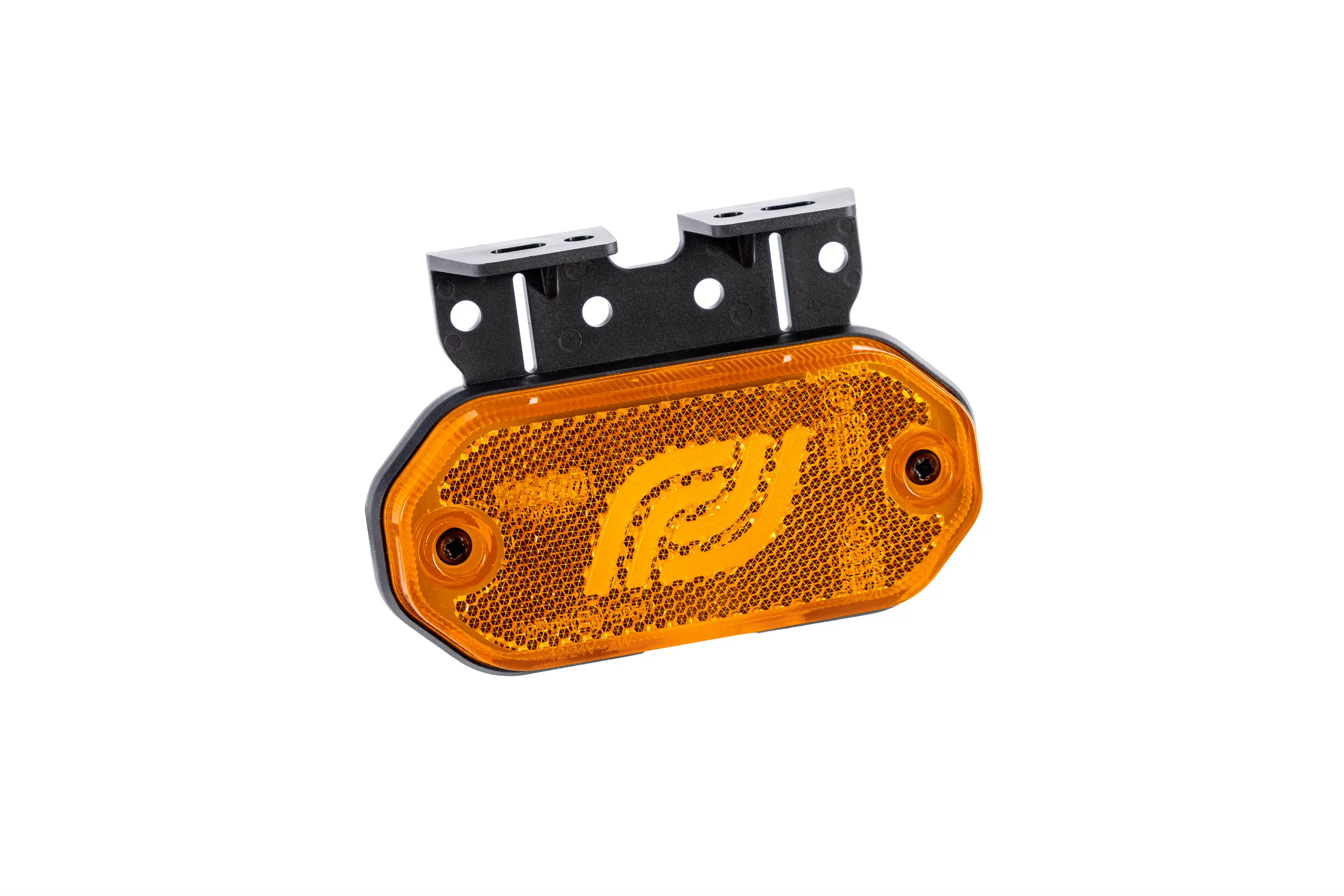

Clearance lamp FT-078Z LED
€1.00
- 2-functional LED clearance lamp
- European E9 approval.
- ElectroMagnetic Compatibility – EMC certificate
- Shock-resistance – PC lampshade
- Optional polarity connection
- Vertical / horizontal approval
Set contains:
– side marker lamp
– flat mounting pad
– angled bracket
– mounting screws
Share:
Related products
-
Rear assembly end-outline lamp 304Z
€1.00Rear assembly end-outline lamp 304Z
catalogue number: 304Z
cable / wires: 22 cm LgY-S 0.75 mm²
light source: LED
mounting side: UNIVERSAL
operating voltage: 12V–24V
position / front clearance: –
position / side clearance: –
position / rear clearance: ●
reflective device: ●
pieces in the box: 100€1.00 -
Rear assembly end-outline lamp 224Z
€1.00Rear assembly end-outline lamp 224Z
catalogue number: 224Z
cable / wires: 22 cm LgY-S 0.75 mm²
light source: LED
mounting side: UNIVERSAL
operating voltage: 12V–24V
position / front clearance: –
position / side clearance: –
position / rear clearance: ●
reflective device: ●
pieces in the box: 100€1.00 -
Rear assembly end-outline lamp 310Z
€1.00Rear assembly end-outline lamp 310Z
Catalogue number 310Z
Cable / wires 22 cm LGY-S 0.75 mm²
Light source LED
Mounting side UNIVERSAL
Operating voltage 12 V – 24 V
Position / front clearance
Position / side clearance •
Position / rear clearance
Reflective device •
Pieces in the box 100€1.00 -
Rear end-outline lamp 127
€1.00Rear end-outline lamp 127
Catalogue number 127
Cable / wires 22 cm LGY-S 0.75 mm²
Light source LED
Mounting side UNIVERSAL
Operating voltage 12 V – 24 V
Position / front clearance
Position / side clearance
Position / rear clearance •
Amber lens •
Transparent lens •
Pieces in the box 250€1.00
